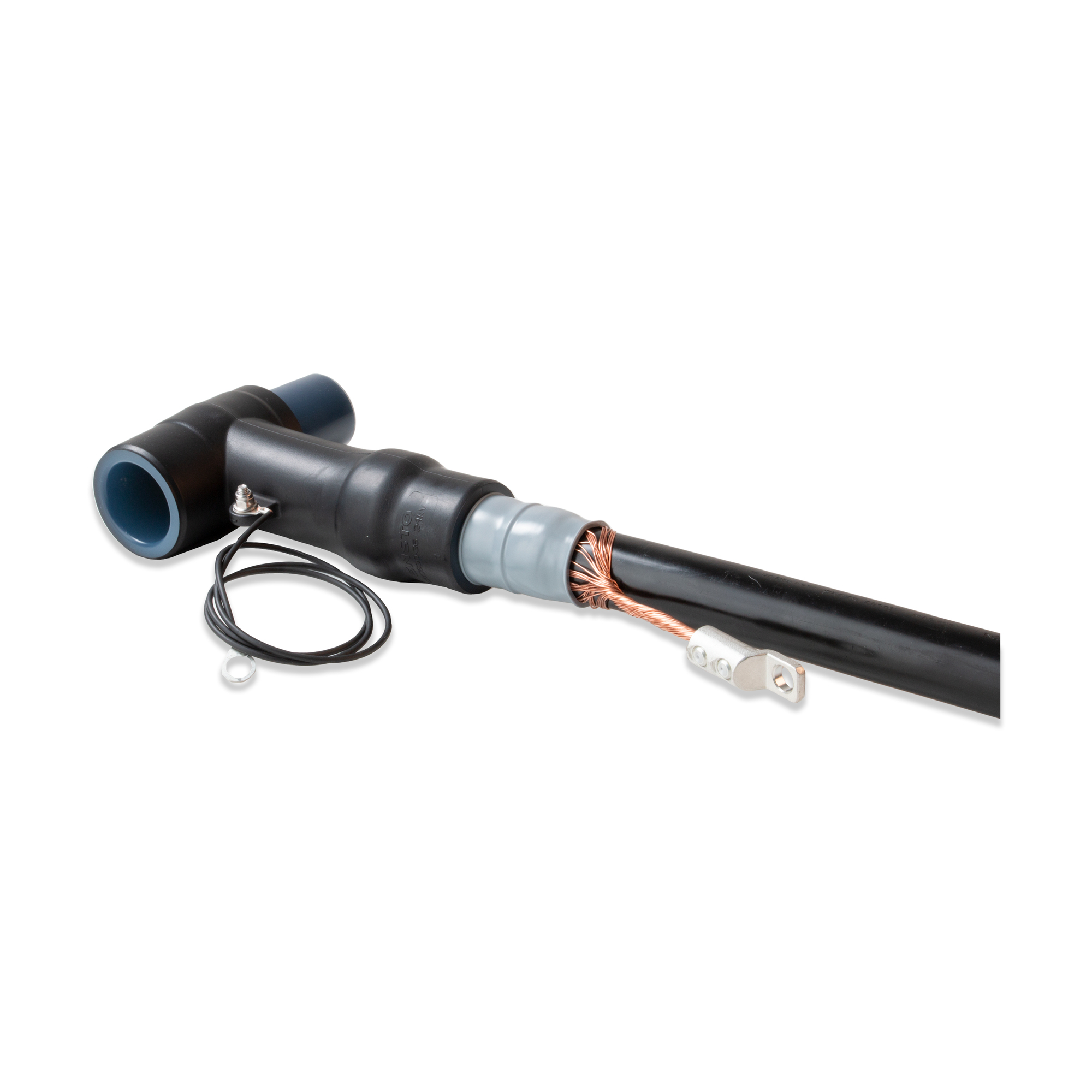

Screened separable back connector for 1-core cables with Al/Cu conductor, polymeric insulation and cu-wire screen. The kit contains components for three cable cores. Mechanical lugs and all components for screen connection are included in the kit. CONTB630-24 series separable back connectors are suitable for connecting cables in parallel with CONT630-24 series T-connectors.
- Shear head cable lugs – range taking
- Easy installation – only few components
- Silicone material – easy to apply.
| Code | CONTB630-24L150 |
| GTIN | 6438389020823 |
| Name | Separable back connector Screened 630 A back T-connector 12.7/22 (24) kV 35-150 mm² 3x1-core with lugs. Suitable for bushing type C1/C2 (630 A/1250A) |
