Mechanical cable lug LA630N17SB3

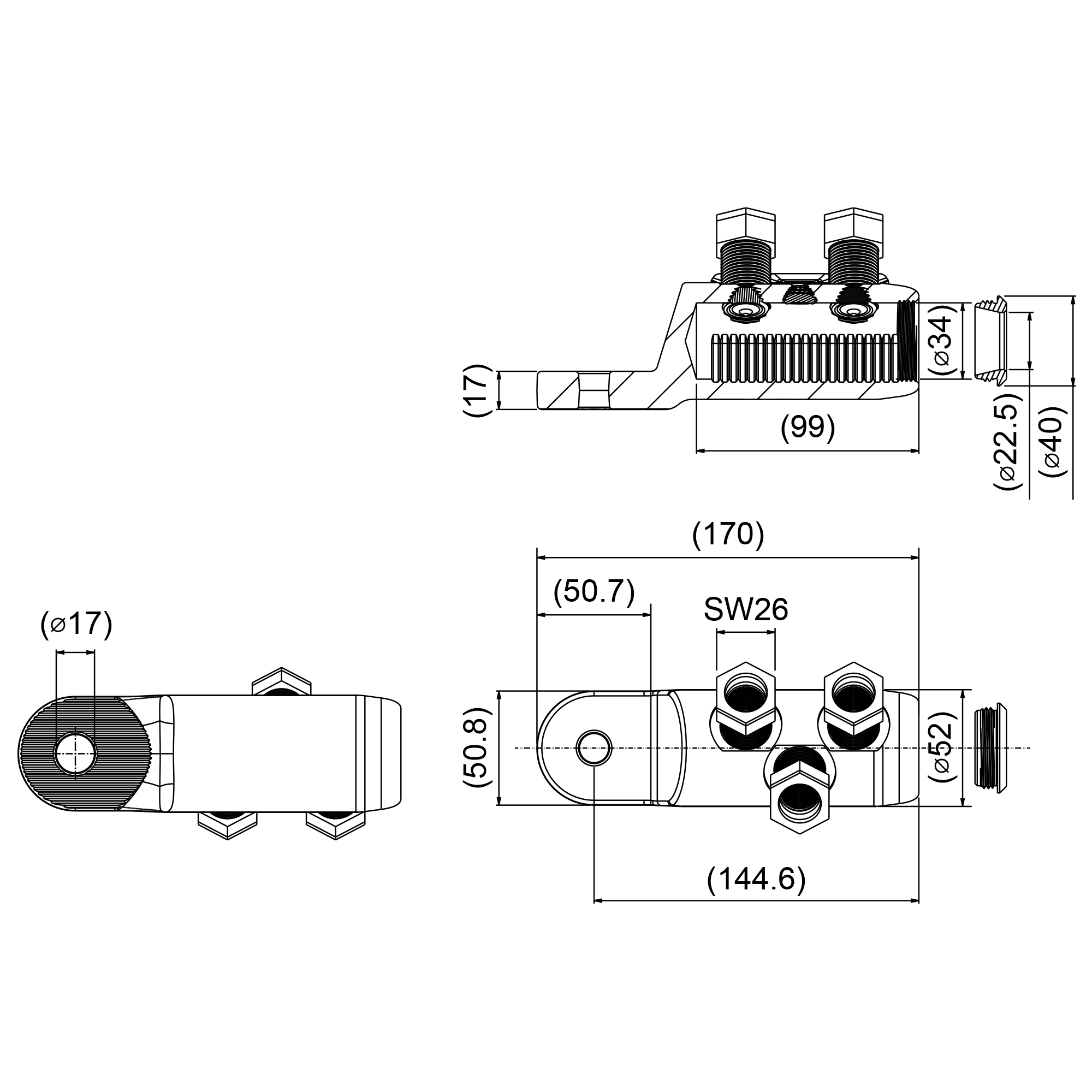

Mechanical cable lug Ensto LA630N17SB3 - 1

Mechanical cable lug LA630N17SB3

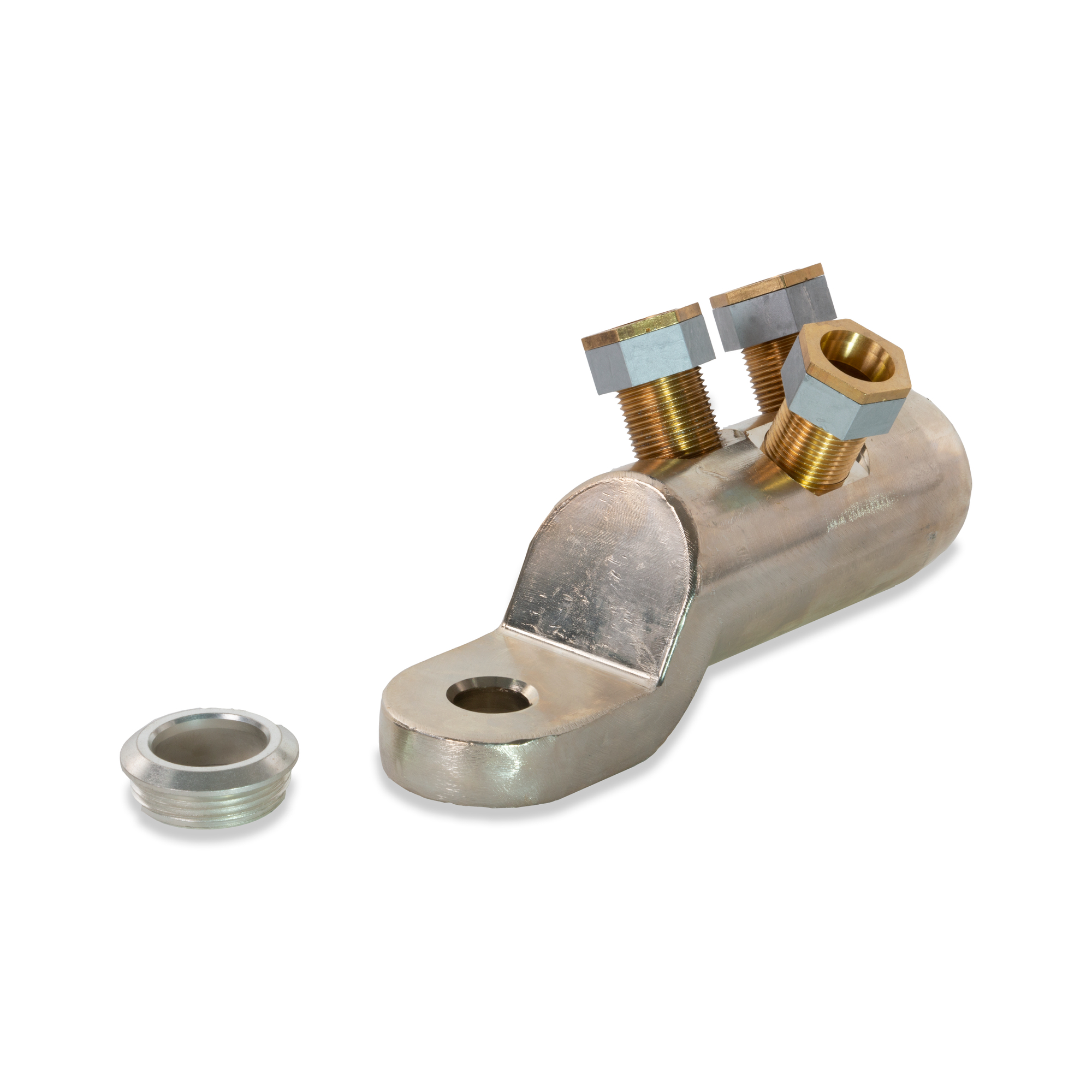

The cable lug is used for terminating conductors of cables up to 42 kV. Because of the shear head bolt construction, no crimping tools are needed. The required torque is achieved by tightening the bolt until it breaks off. The lug is longitudinally watertight. It is suitable for aluminium and copper conductors: solid and stranded, sector shaped and circular.

Fast and easy installation
Screw design with step less shearing
Always correct cut-off point
No need of hammering or grinding the screw after break.

Code	LA630N17SB3
GTIN	6438100371234
Name	Mechanical cable lug Al/Cu 300-630 mm², Ø17 mm

Contact sales

Technical information

Technical specifications

Technical information
Conductor material	Al/Cu
Cross section stranded circular	300 ... 630 mm²
Cross section solid circular	300 ... 630 mm²
Cross section stranded sector	300 ... 300 mm²
Cross section solid sector	300 ... 300 mm²
Dimensions
Weight	0.697 kg
Width	52 mm
Length	180 mm
Conductor hole diameter	34 mm
Palm hole diameter	17 mm
Palm holes quantity	1
Mechanical
Tightening torque Nm	54 Nm
ETIM
ETIM Class	EC001054
Nominal cross section copper, RM	300 ... 630 mm²
Nominal cross section copper, RE	300 ... 630 mm²
Nominal cross section copper, SM	300 ... 300 mm²
Nominal cross section aluminium, RM	300 ... 630 mm²
Nominal cross section aluminium, RE	300 ... 630 mm²
Nominal cross section aluminium, SM	300 ... 300 mm²
Nominal cross section aluminium, SE	300 ... 300 mm²
Material conductor	Aluminium/copper
Surface protection	Tinned
