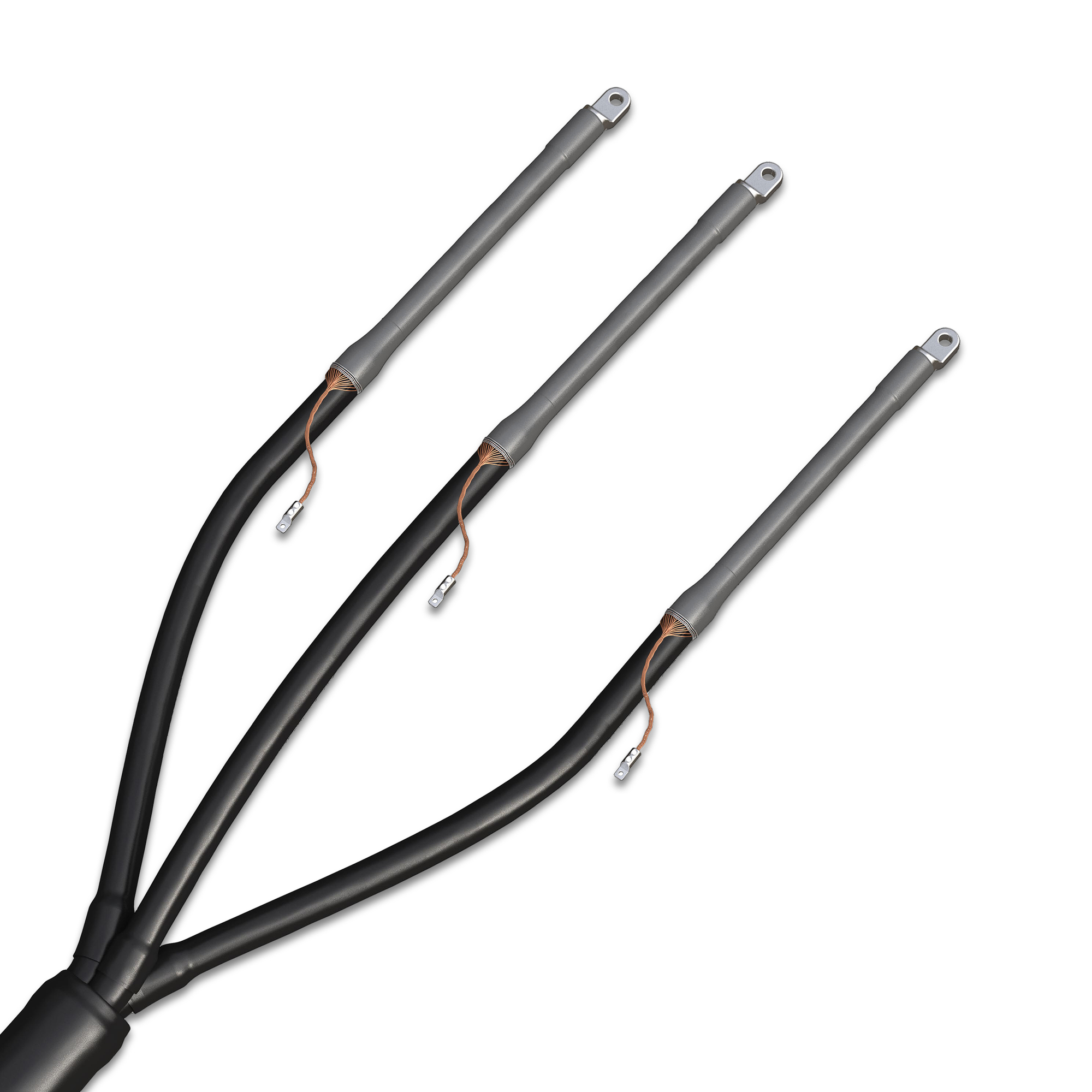

Hybrid indoor termination for 3-core cables with Al/Cu conductor, polymeric insulation and Cu-wire screen. Mechanical lugs for conductor and screen wire connection are included in the kit. The termination kits include cold shrinkable termination bodies with integrated stress control elements, heat shrinkable breakout and core protection tubes and all the additional components needed for assembly.
- Easy installation – most critical components integrated in one body
- Spiral technology – easy to apply to a wide range of cables
- Integrated geometric stress control – most reliable operation in all networks
- No special tools needed
- Adapts to temperature variations.
| Code | CITH31.2402L |
| GTIN | 6438100320867 |
| Name | Hybrid indoor term 12.7/22 (24) kV 10-95 mm² 3-core with lug |
