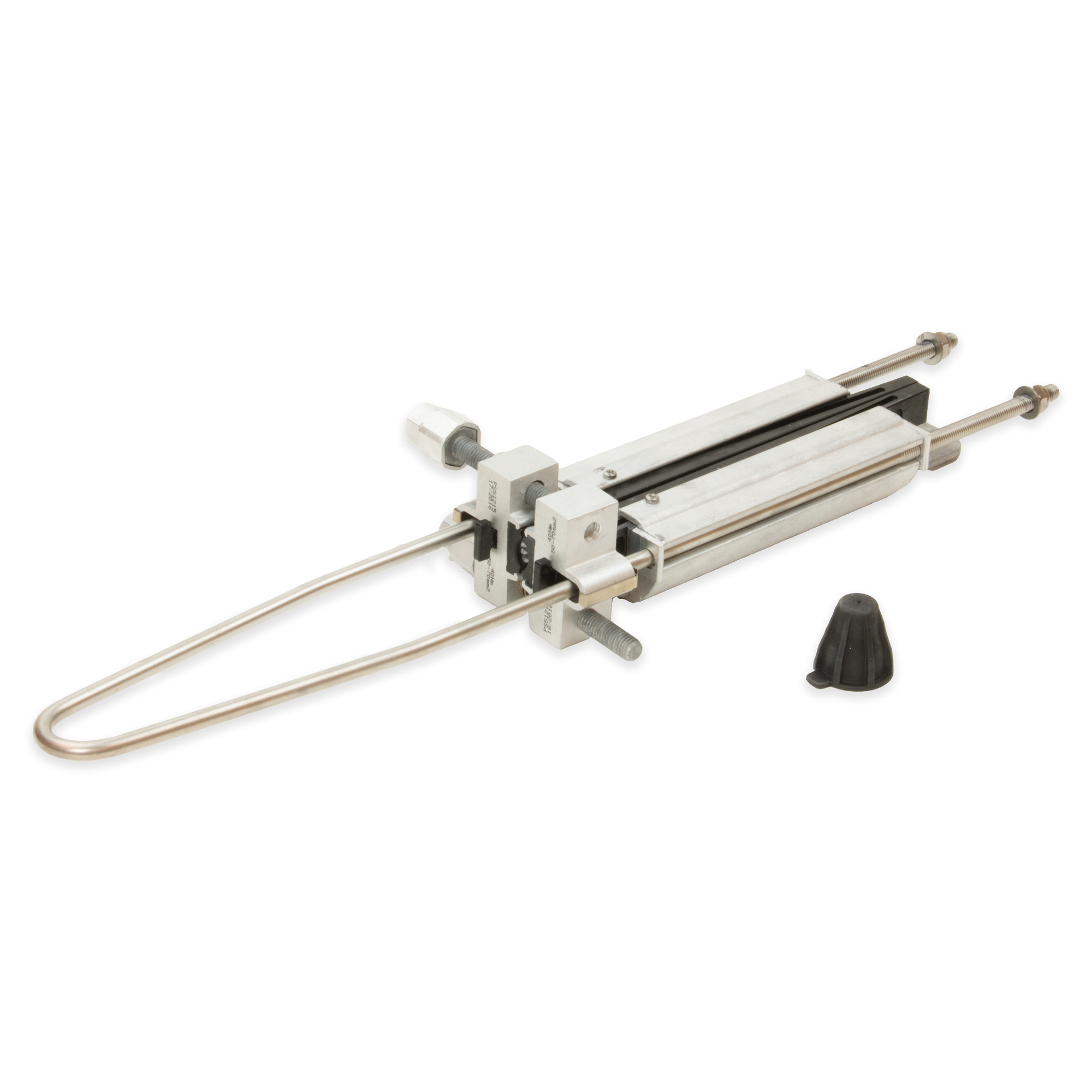

Tension clamp SO255.2S
Tension clamp for covered conductors (PAS/BLL AlMgSi and for insulated messengers of aerial MV cables like AHXAMK-WM3 (Multi-wiski). The insulation piercing contact part has silicone seal which prevents the moisture getting into the conductor. Clamps are equipped with an adapter for hoist hook. Shear head ensures the correct tightening torque.
| Code | SO255.2S |
| GTIN | 6438100324858 |
| Name | Tension clamp PAS/BLL-T 50-70 mm², AlMgSi, hoist adapter, shear head |
| Certificates | |
|---|---|
| Standards | EN 50397-2 |

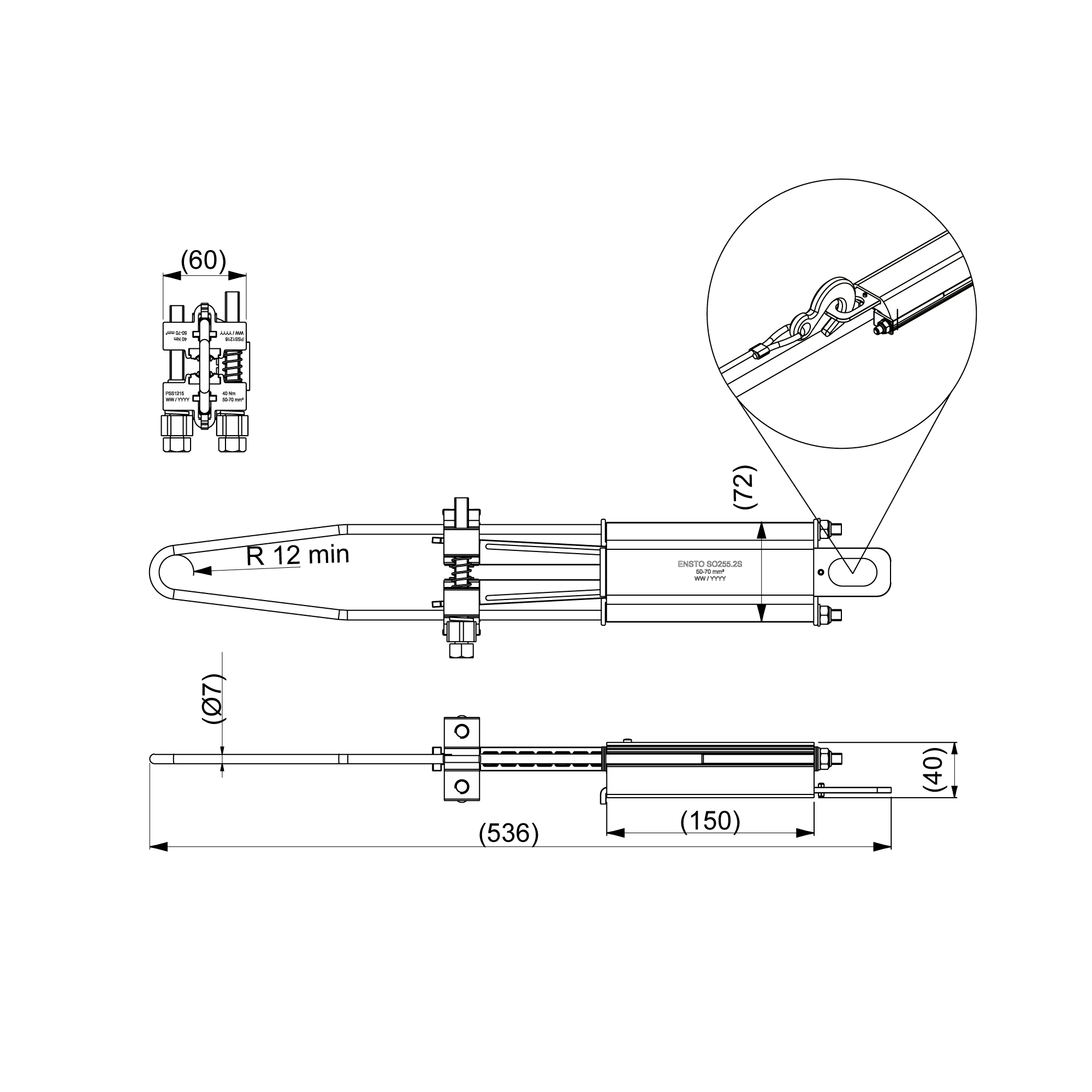

| Dimensions | |
| Weight | 1.25 kg |
| Conductor diameter | 12.7 ... 16.7 mm |
| Mechanical | |
| Tightening torque Nm | 40 Nm |
| SMDL | 18 kN |
| SMFL | 20 kN |
| Carton | |
|---|---|
| Size | 9 pcs |
| Depth | 508 mm |
| Height | 216 mm |
| Width | 263 mm |
| Weight | 11.566 kg |
| Volume | 28.858464 l |
| Pallet package | |
| Size | 216 pcs |
| Depth | 1200 mm |
| Height | 1030 mm |
| Width | 800 mm |
| Weight | 297.584 kg |
| Volume | 988.8 l |
