Helical tie SO115.5073
Used with covered conductors for tying the conductors to the insulators. Can be used as both top and side ties. Easy to install without tools. The tie is installed on the insulation of the covered conductor. The sets include 6 pcs ties (one set/cross arm). The right size is easy to recognize by the colour code.
| Code | SO115.5073 |
| GTIN | 6418677404085 |
| Name | Helical tie CC 35-50-62 mm², neck 73 mm |
| Certificates | |
|---|---|
| Standards | EN 50397-2:2009 |
| Colors | |
| Color | Yellow |

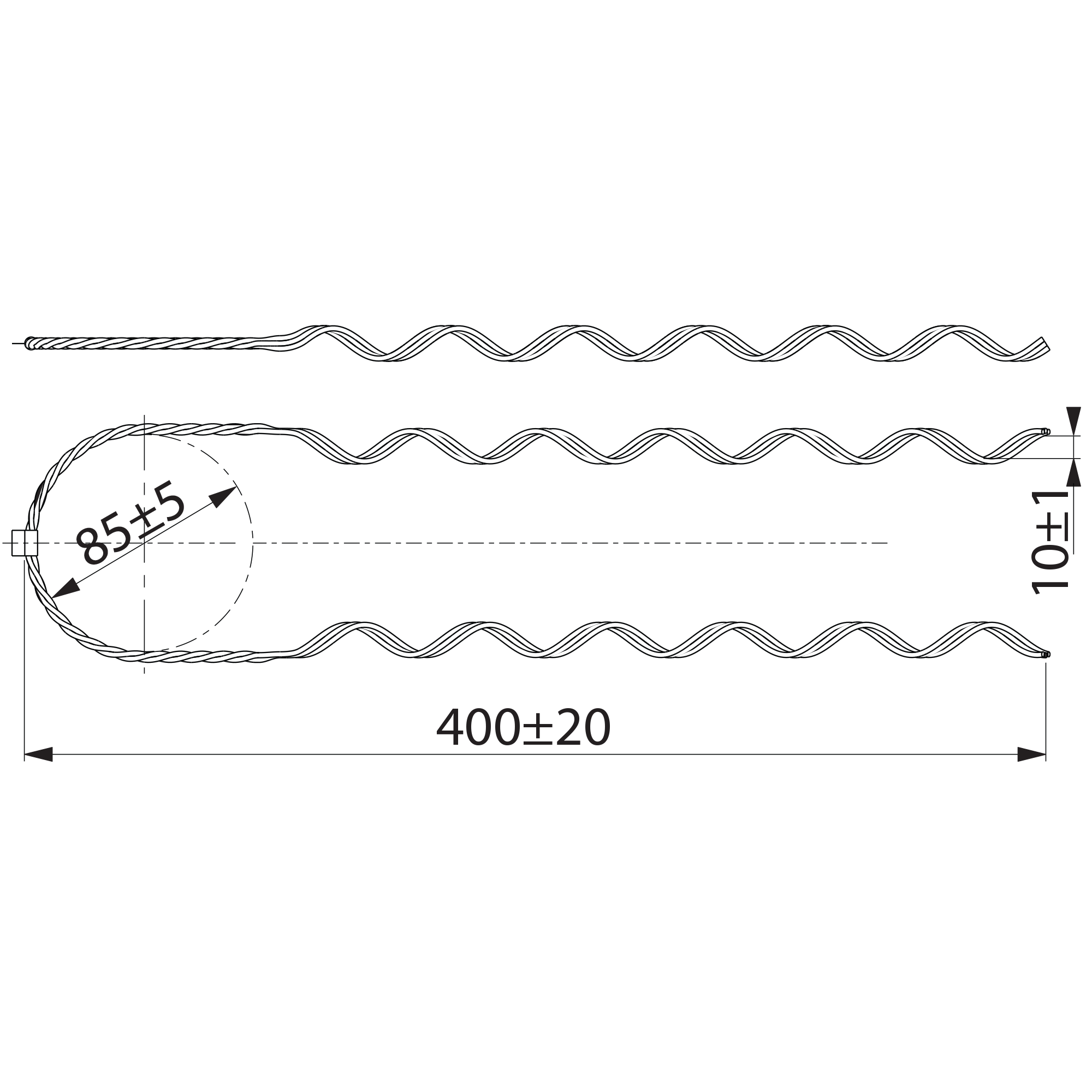

| Dimensions | |
| Weight | 0.518 kg |
| Height | 10 mm |
| Width | 85 mm |
| Length | 400 mm |
| Cable diameter | 11.0 - 13.0 mm |
| Insulator neck | 73 mm |
| Covered conductors | 35 ... 62 mm² |
| ETIM | |
| ETIM Class | EC003516 |
| Type of accessory/spare part | Other |
| Plastic bag | |
|---|---|
| Size | 1 pce |
| Depth | 430 mm |
| Height | 43 mm |
| Width | 125 mm |
| Weight | 0.543 kg |
| Volume | 2.31125 l |
| Carton | |
| Size | 25 pcs |
| Depth | 606 mm |
| Height | 282 mm |
| Width | 375 mm |
| Weight | 14.188 kg |
| Volume | 64.0845 l |
