Suspension hook for wood pole SOT21.3

Suspension hook for wood pole Ensto SOT21.3
Suspension hook for wood pole Ensto SOT21.3
3d_rotation Open 3D view
Suspension hook for wood pole Ensto SOT21.3
Suspension hook for wood pole Ensto SOT21.3
3d_rotation

Suspension hook for wood pole SOT21.3

Suspension hook M20

Code SOT21.3
GTIN 6418677410383
Name Suspension hook for wood pole

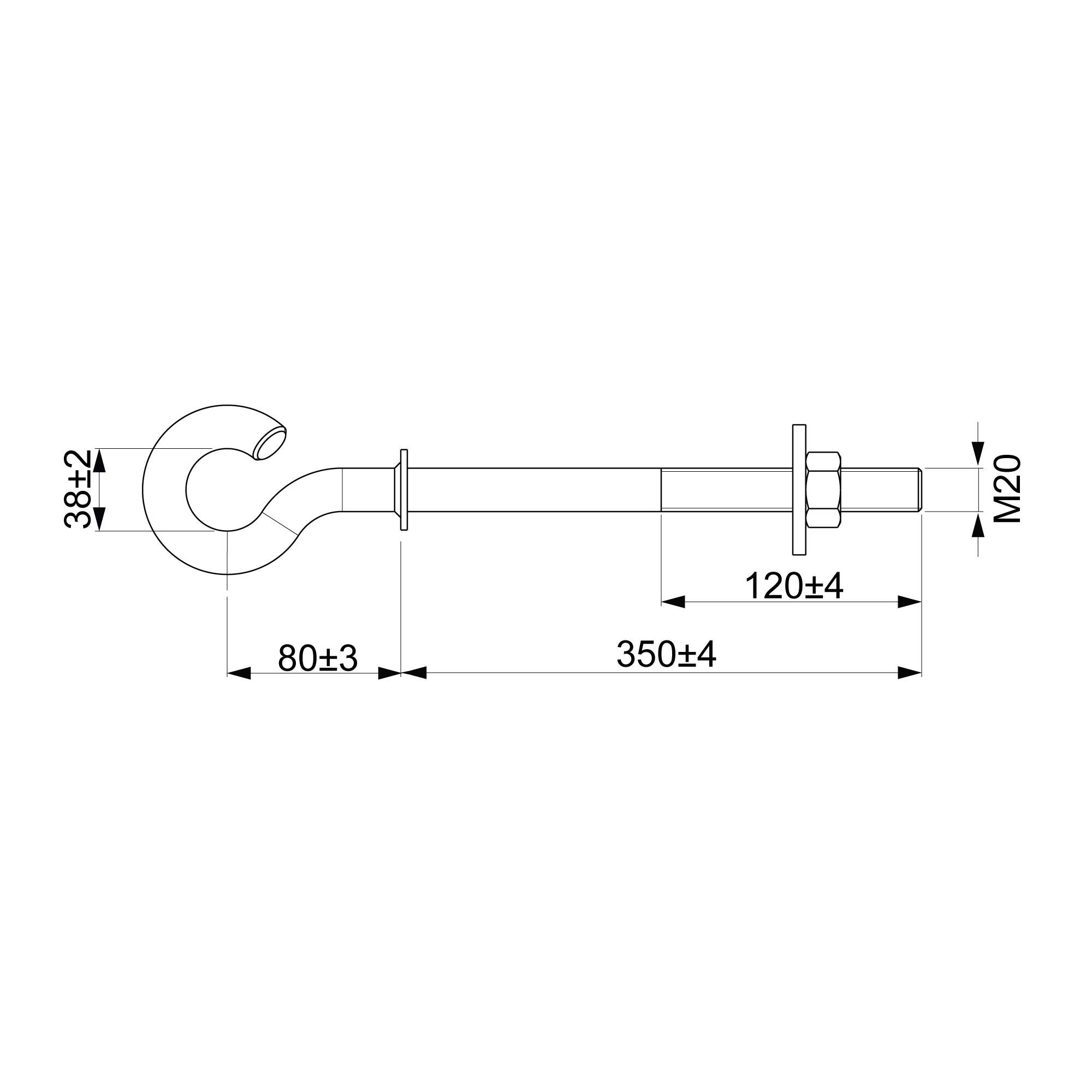

Through the pole, M20, L=350
Contact sales

Technical information

Technical specifications
Dimensions
Weight 1.58 kg
Certificates
Standards SFS 2451, SFS 2452
Mechanical
Test load Fx 14.5 kN
Test load Fy 4.6 kN
ETIM
ETIM Class EC000092
Material Steel
Surface protection Hot-dip galvanized
Inner diameter of eye 38 mm
Shaft diameter 20 mm
Shaft length 350 mm
Total length 469 mm
Thread length 120 mm

Packaging
Carton
Size 20 pce
Depth 600 mm
Height 210 mm
Width 260 mm
Weight 32.100 kg
Volume 32.76 l
Pallet package
Size 480 pce
Depth 1200 mm
Height 990 mm
Width 800 mm
Weight 790.400 kg
Volume 950.4 l
