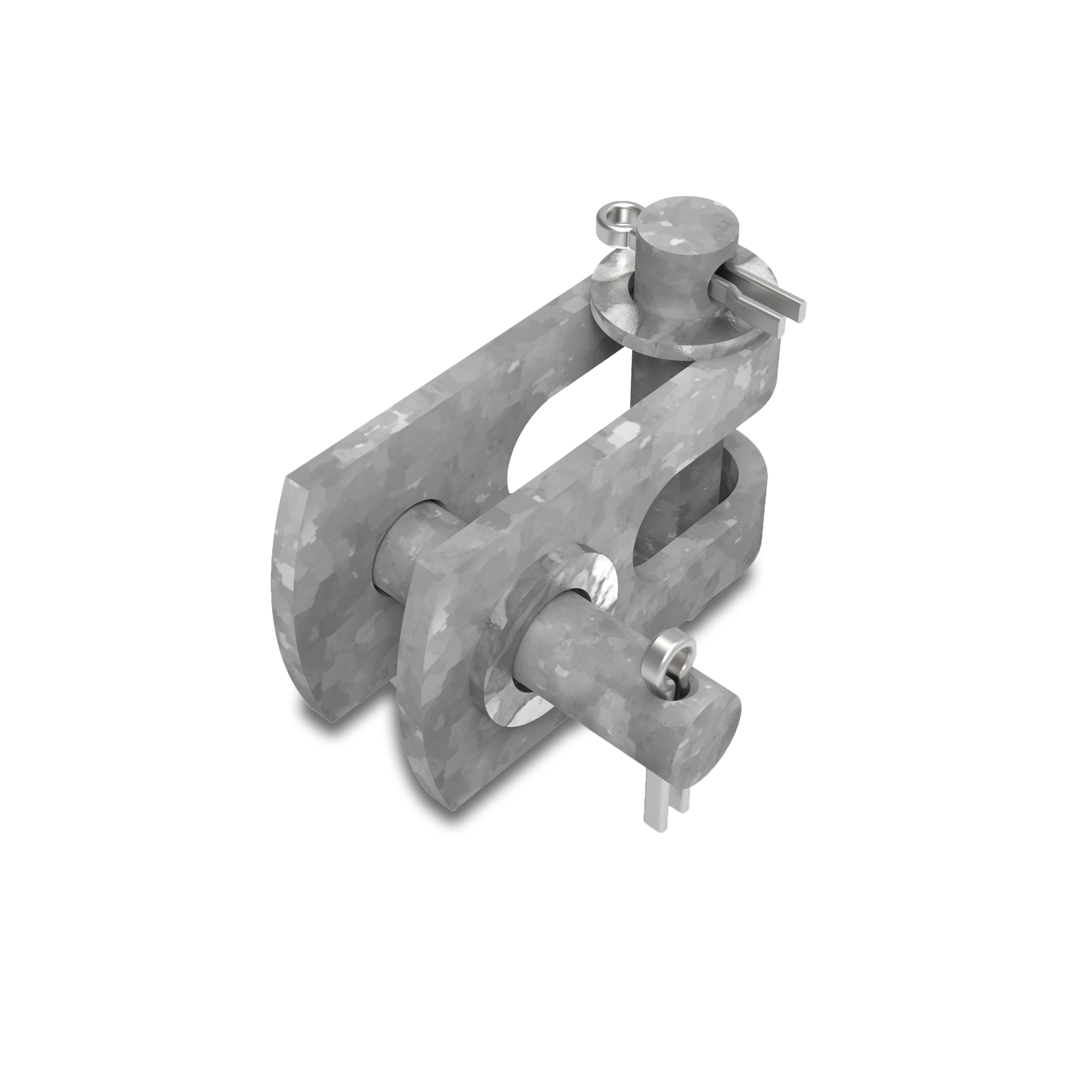

Cross clevis SH195
Cross clevis can be used e.g. in the upper end of SH193 insulator string when the string's eye ball cannot be directly attached to crossarm or pole structure.
| Code | SH195 |
| GTIN | 6418677407079 |
| Name | Cross clevis Clevis = 21 mm |

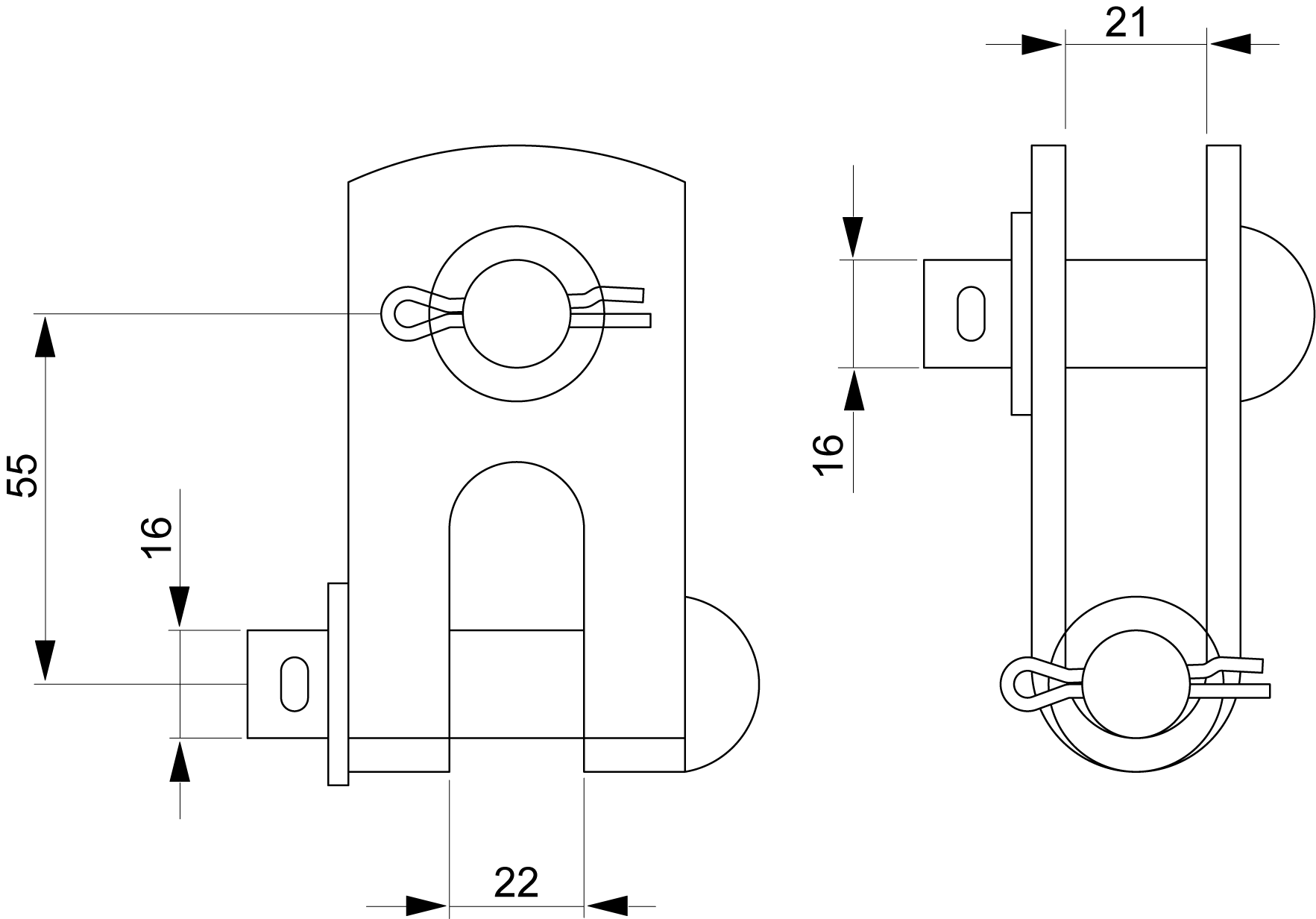

| Dimensions | |
|---|---|
| Weight | 0.55 kg |
| Height | 47 mm |
| Width | 50 mm |
| Length | 93 mm |
| ETIM | |
| ETIM Class | EC003516 |
| Type of accessory/spare part | Other |
| Carton | |
|---|---|
| Size | 50 pcs |
| Depth | 390 mm |
| Height | 205 mm |
| Width | 255 mm |
| Weight | 28.000 kg |
| Volume | 20.38725 l |
| Pallet package | |
| Size | 1800 pcs |
| Depth | 1200 mm |
| Height | 990 mm |
| Width | 800 mm |
| Weight | 1028.000 kg |
| Volume | 950.4 l |
