| Code | SH545.2 |
| GTIN | 6418677439834 |

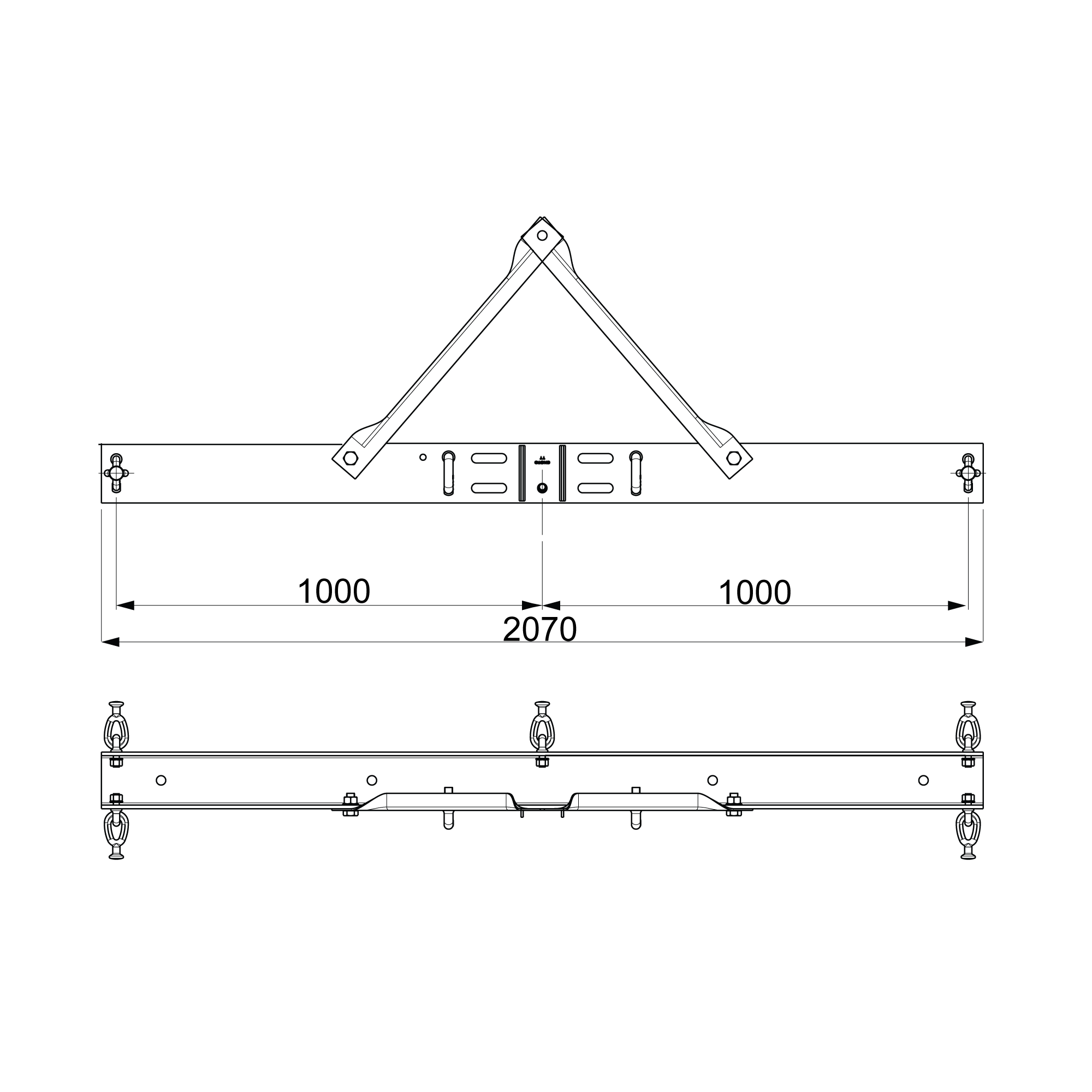

| Name | Crossarm Traavers EBR 2033 HE140A 2070mm |
-
What are you looking for?
-

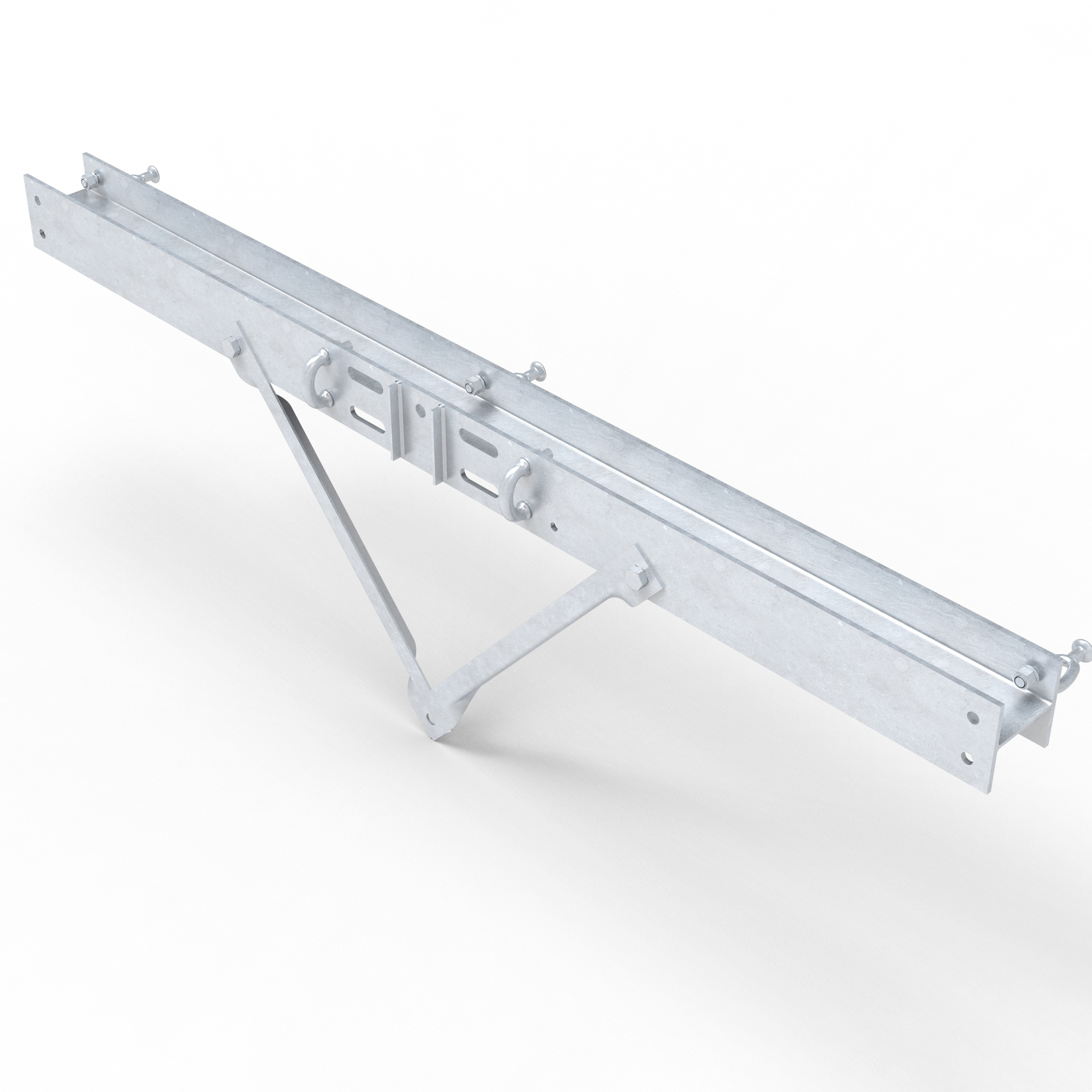

Crossarm SH545.2
Crossarm SH545.2
Technical information
Technical specifications
Technical specifications
| Dimensions | |
|---|---|
| Weight | 69 kg |
| ETIM | |
| ETIM Class | EC003515 |
| Type | Deadend cross arm |
| Suitable for | One pole |
| Profile shape | H-profile |
| Material | Steel |
| Surface protection | Galvanized |
| Max. rated voltage | 24 kV |
Packaging
Packaging
| Pallet package | |
|---|---|
| Size | 20 pcs |
| Depth | 1200 mm |
| Width | 800 mm |
| Weight | 1400.000 kg |
