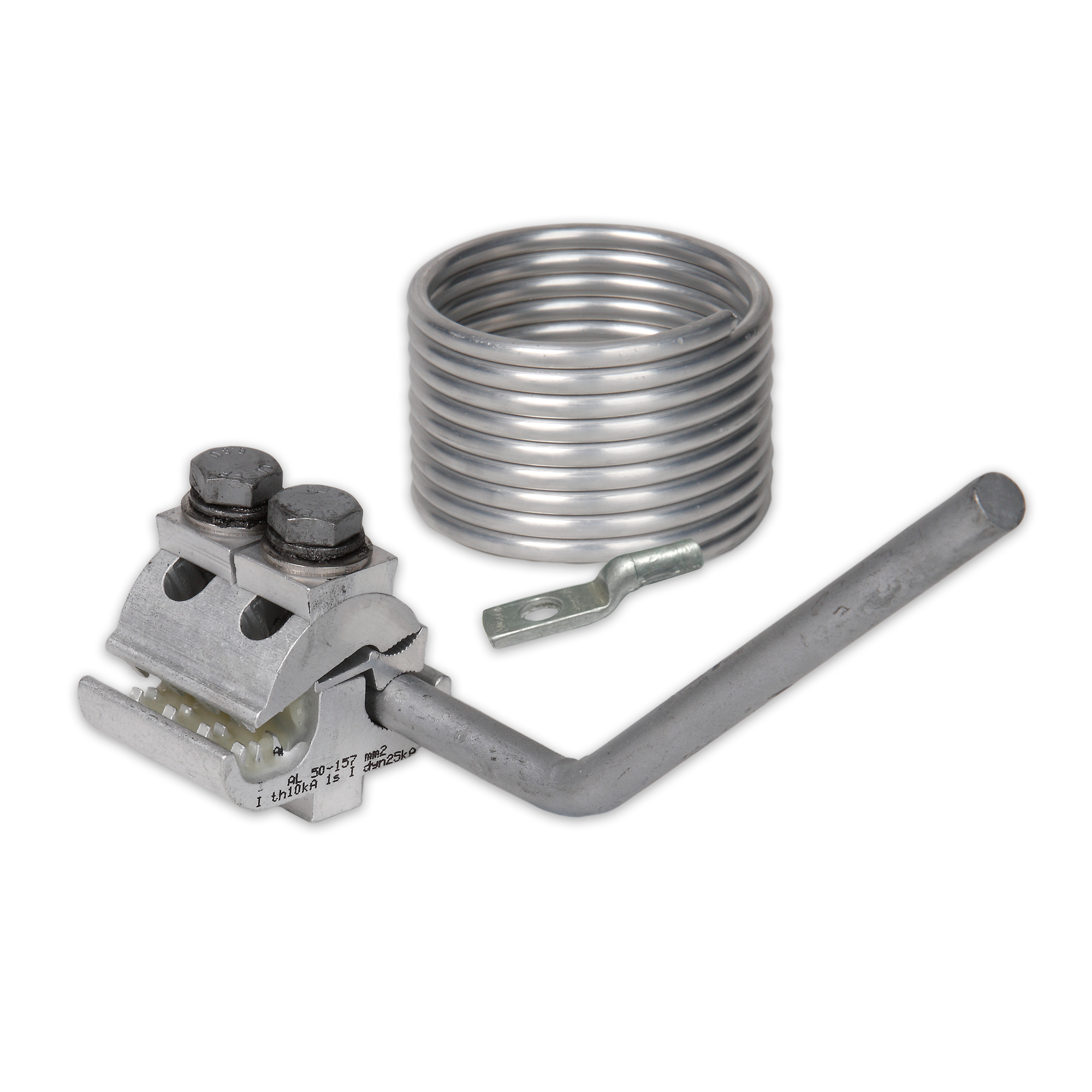

Arc protection device SEW20.2
The connector SEW20.2 includes an Al-thread to connect the connector to the neck of the insulator. The length of 25 mm² Al thread is 2.1 m. The connector is watertight by silicone greased teeth.
| Code | SEW20.2 |
| GTIN | 6438100305543 |
| Name | Arc protection device PAS/BLL-T 50-157 mm² AlMgSi, with plain horn and Al-thread |
| Certificates | |
|---|---|
| Standards | EN 50397-2:2009 |
| Dimensions | |
| Weight | 0.627 kg |
| Height | 85 mm |
| Width | 200 mm |
| Length | 295 mm |
| Features | |
| Bolt | 2xM10 |
| For conductor size | BLX / BLL 50-157 |
| Plastic cover | SP16 |
| Mechanical | |
| Tightening torque Nm | 40 Nm |
| ETIM | |
| ETIM Class | EC001062 |
| Nominal cross section main conductor, SM | 50 ... 157 mm² |
| Material main conductor | Aluminium |
| Material branch conductor | Aluminium |
| Terminal insulated | No |
| Clamping channel opening main conductor | Both sides open |
| Clamping channel opening branch conductor | Both sides open |
| Surface protection | Bare |
| Type of connection | Insulation piercing connector IPC |
| Plastic bag | |
|---|---|
| Size | 3 pcs |
| Depth | 300 mm |
| Height | 10 mm |
| Width | 152 mm |
| Weight | 1.885 kg |
| Volume | 0.456 l |
| Carton | |
| Size | 24 pcs |
| Depth | 403 mm |
| Height | 246 mm |
| Width | 298 mm |
| Weight | 15.413 kg |
| Volume | 29.543124 l |
| Pallet package | |
| Size | 768 pcs |
| Depth | 1200 mm |
| Height | 1130 mm |
| Width | 800 mm |
| Weight | 513.216 kg |
| Volume | 1084.8 l |
