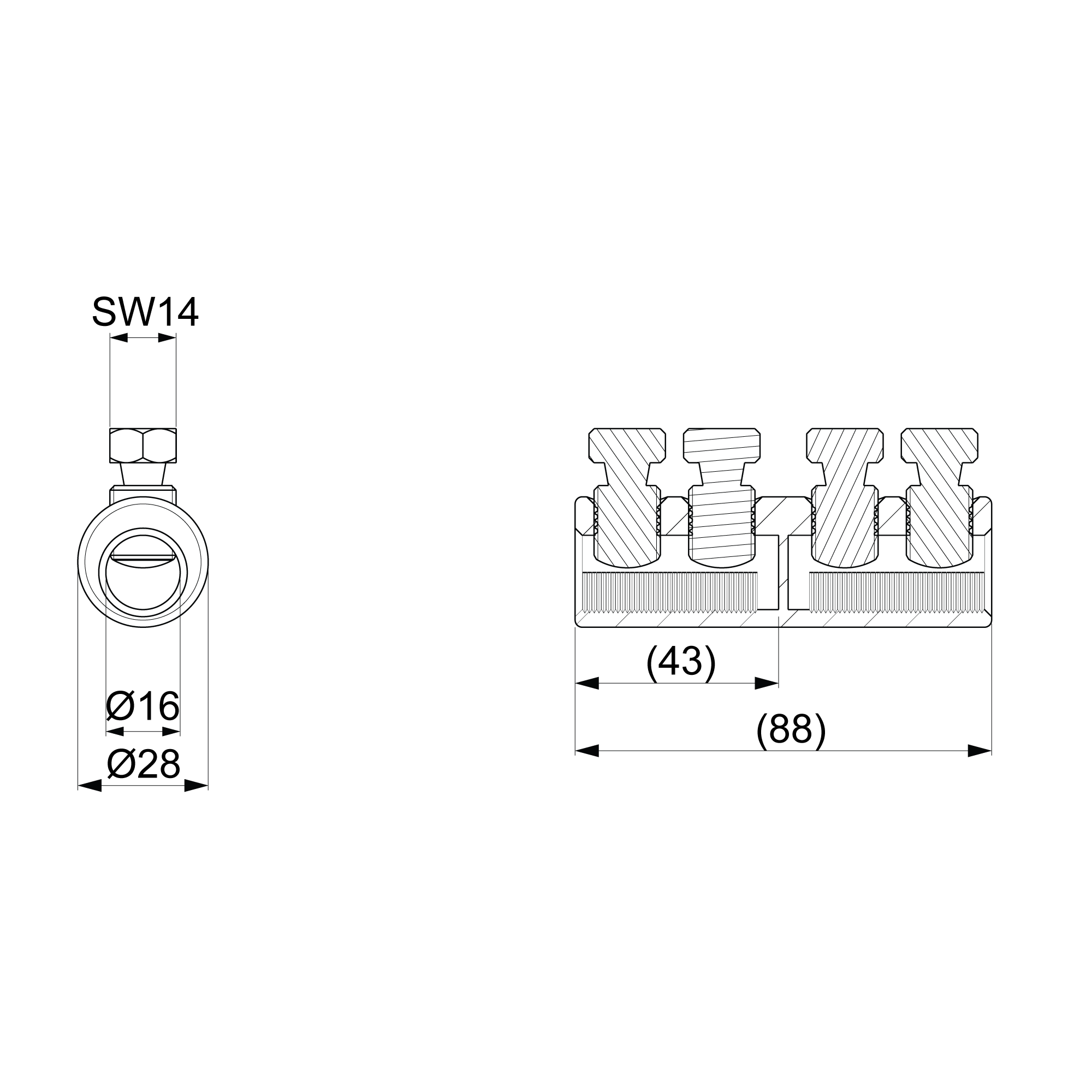

Cable connector mechanical SLJ2.47

The connectors are used for jointing conductors of up to 1 kV cables. Because of the shear head bolt construction no crimping tools are needed. The required torque is achieved by tightening the bolt until it breaks off. The connectors are longitudinally water tight and they are suitable both for aluminium and copper conductors, solid and stranded, sector shaped and circular. The core insulation may be as well plastic as paper.

• Shear head technology – no compression tools.
• Wide range – suitable for solid, stranded, sector and round conductor.
• Suitable for Al and Cu conductors.
