Bracket for tension clamps.
Not available anymore
| Code | SO253 |
| GTIN | 6418677418907 |
| Name | Bracket For tension clamps |
-
What are you looking for?
-

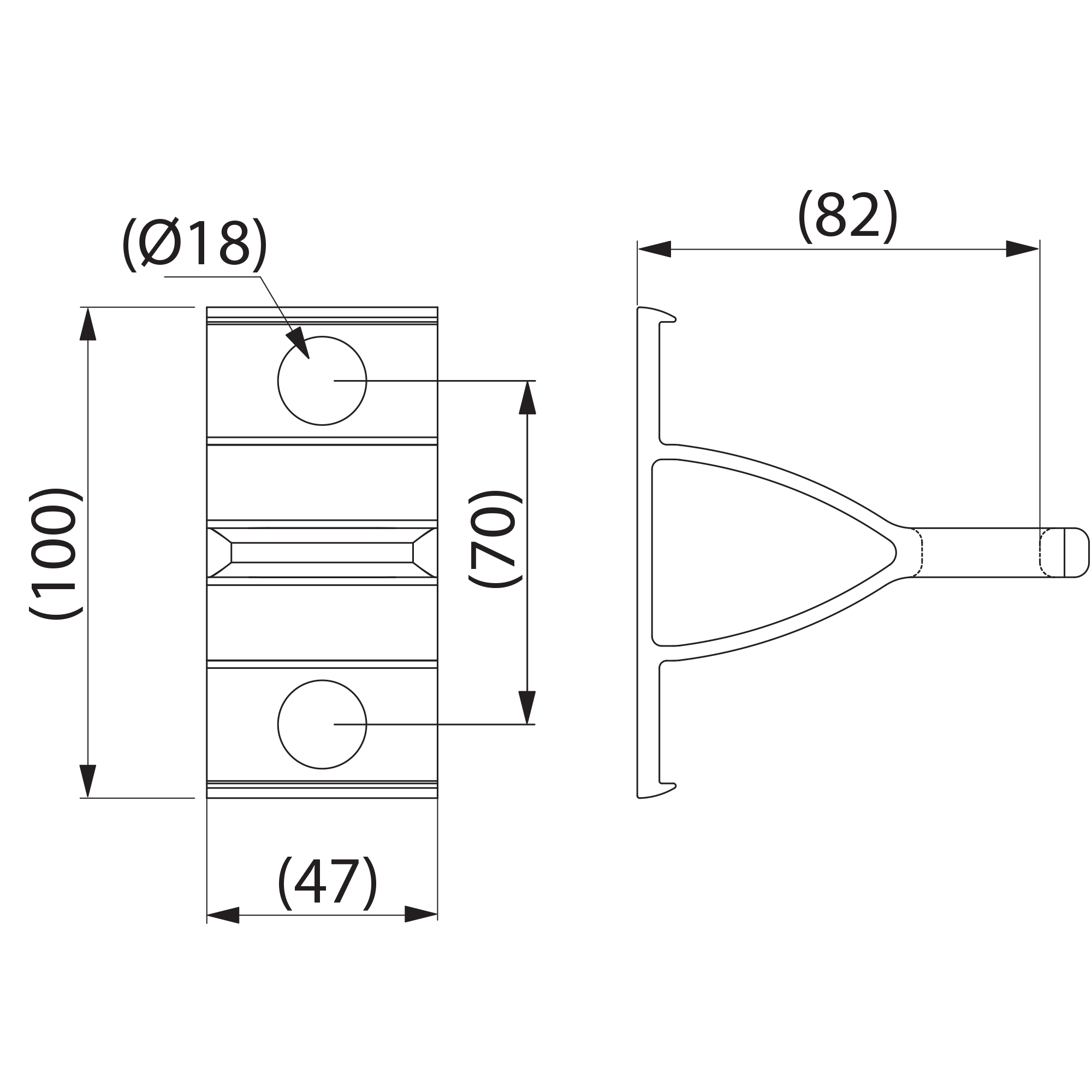

Bracket SO253
Technical information
Technical specifications
Technical specifications
| Certificates | |
|---|---|
| Standards | NF C 33-041 |
| Dimensions | |
| Weight | 0.11 kg |
| Mechanical | |
| SMFL | 22 kN |
| ETIM | |
| ETIM Class | EC003516 |
| Type of accessory/spare part | Other |
Packaging
Packaging
| Carton | |
|---|---|
| Size | 25 pcs |
| Depth | 375 mm |
| Height | 115 mm |
| Width | 250 mm |
| Weight | 2.966 kg |
| Volume | 10.78125 l |
| Pallet package | |
| Size | 1575 pcs |
| Depth | 1200 mm |
| Height | 1050 mm |
| Width | 800 mm |
| Weight | 206.858 kg |
| Volume | 1008 l |
