Tension clamp SO250.01

For tensioning of LV ABC cables in an insulated messenger wire system (IMWS). Suitable for every climatic conditions.

  • Help in building a distribution network with a life cycle of 40-50 years.
  • Type tested and hence, always reliable.
  • Easy-to-install design to make the installer’s work easier and faster.
Code SO250.01
GTIN 6418677418617
Name Tension clamp
IMWS 50-70 mm² (without bracket)
Contact sales

Technical information

Technical specifications
Certificates
Standards EN 50483-3

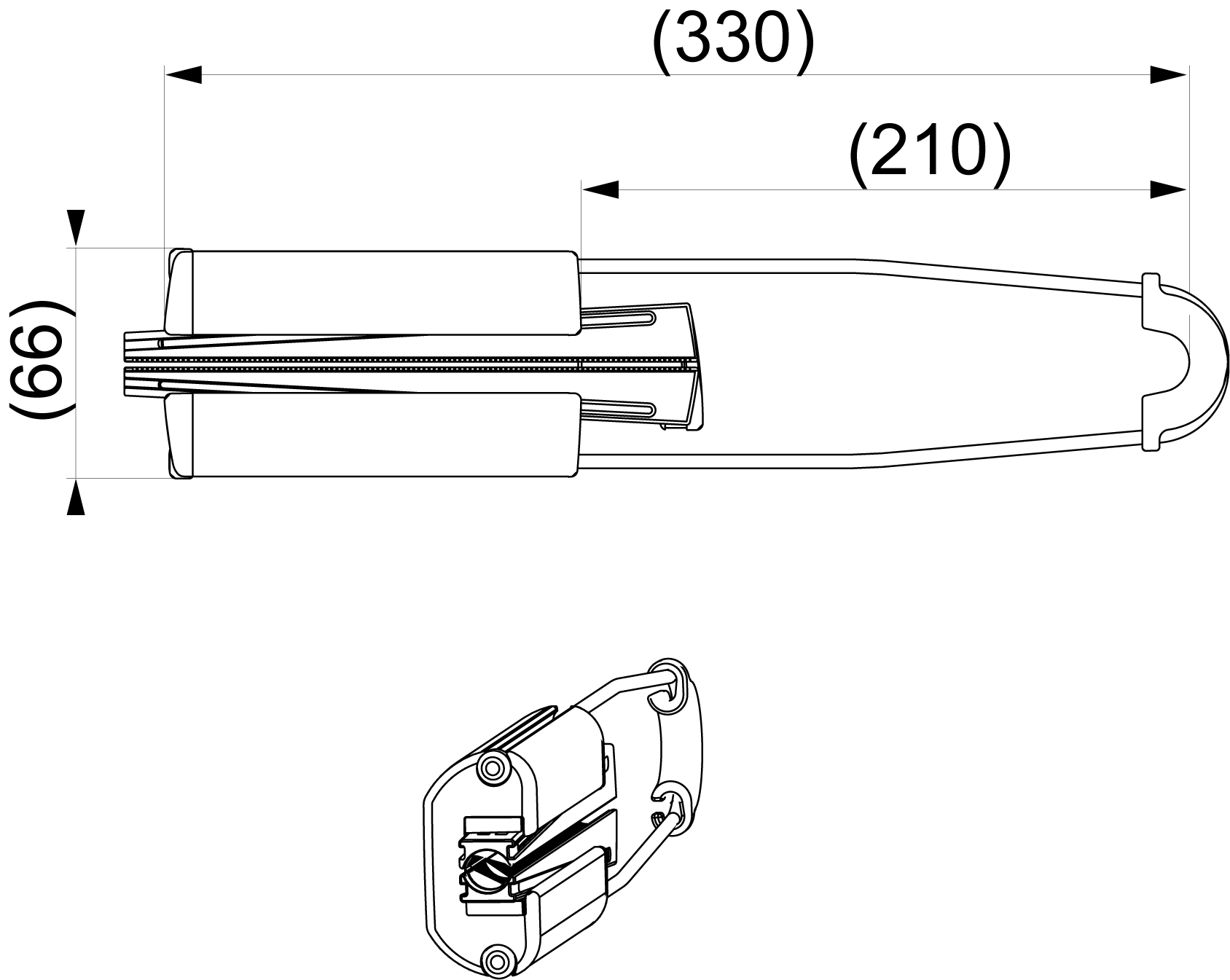

Dimensions
Weight 0.478 kg
Messenger diameter 11 ... 14 mm
Messenger conductor size 50 ... 70 mm²
Mechanical
SMFL 15 kN
Features
Includes bracket No
ETIM
ETIM Class EC003516
Type of accessory/spare part Other

Packaging
Carton
Size 25 pcs
Depth 385 mm
Height 165 mm
Width 260 mm
Weight 12.450 kg
Volume 16.5165 l
Pallet package
Size 1350 pcs
Depth 1200 mm
Height 1140 mm
Width 800 mm
Weight 692.300 kg
Volume 1094.4 l
