Suspension clamp SO260.1

For suspensioning of LV ABC cables in an insulated messenger wire system (IMWS). Suitable for every climatic conditions.

errorNot available anymore
  • Help in building a distribution network with a life cycle of 40-50 years.
  • Type tested and hence, always reliable.
  • Easy-to-install design to make the installer’s work easier and faster.
Code SO260.1
GTIN 6418677419058
Name Suspension clamp
IMWS 25-95 mm² (without bracket)
Contact sales

Technical information

Technical specifications

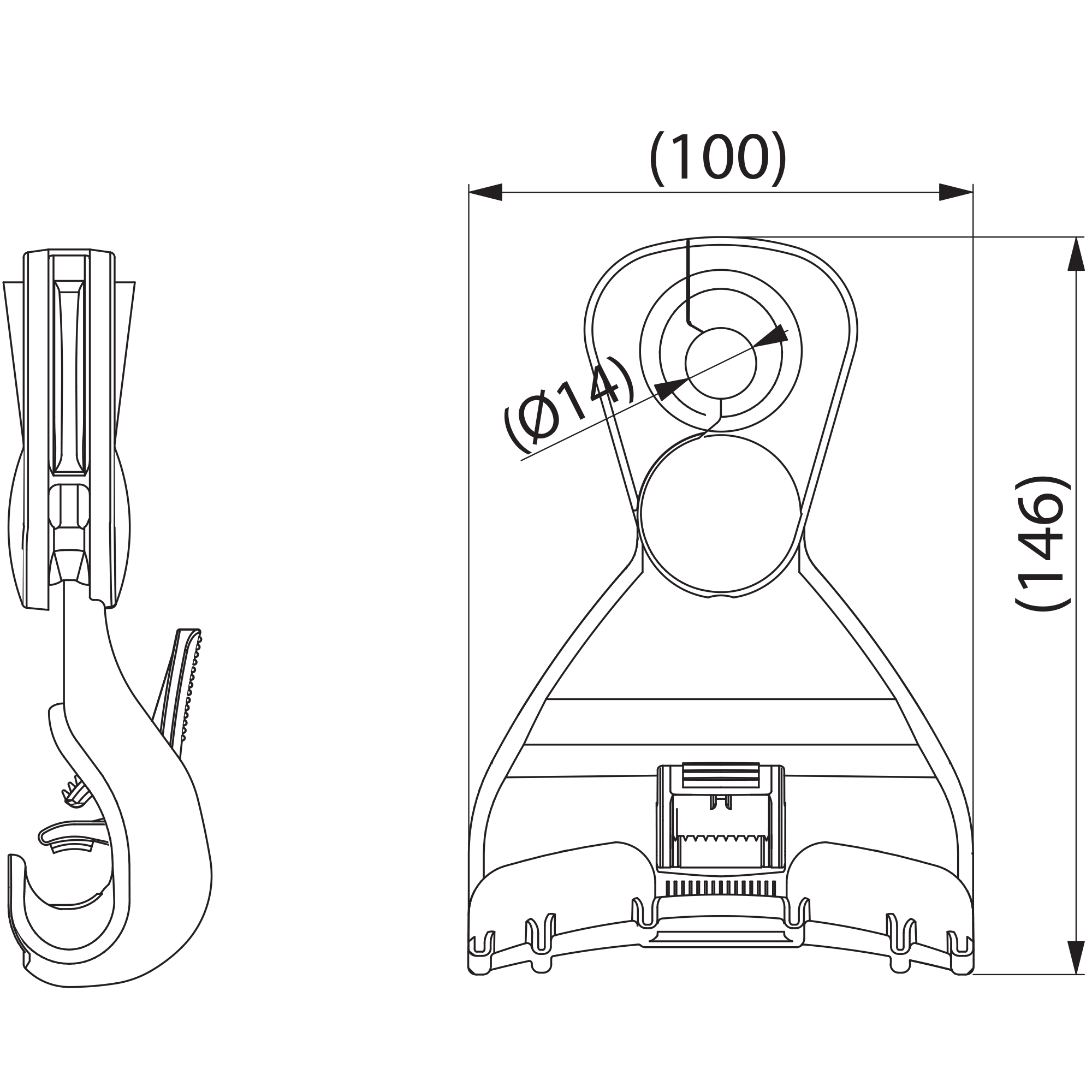

Dimensions
Weight 0.16 kg
Messenger diameter 8.5 ... 15.5 mm
Messenger conductor size 25 ... 95 mm²
Mechanical
SMFL 12 kN
Features
Includes bracket No
ETIM
ETIM Class EC003516
Type of accessory/spare part Other

Packaging
Carton
Size 50 pcs
Depth 400 mm
Height 240 mm
Width 295 mm
Weight 8.500 kg
Volume 28.32 l
Pallet package
Size 1600 pcs
Depth 1200 mm
Height 1100 mm
Width 800 mm
Weight 292.000 kg
Volume 1056 l
