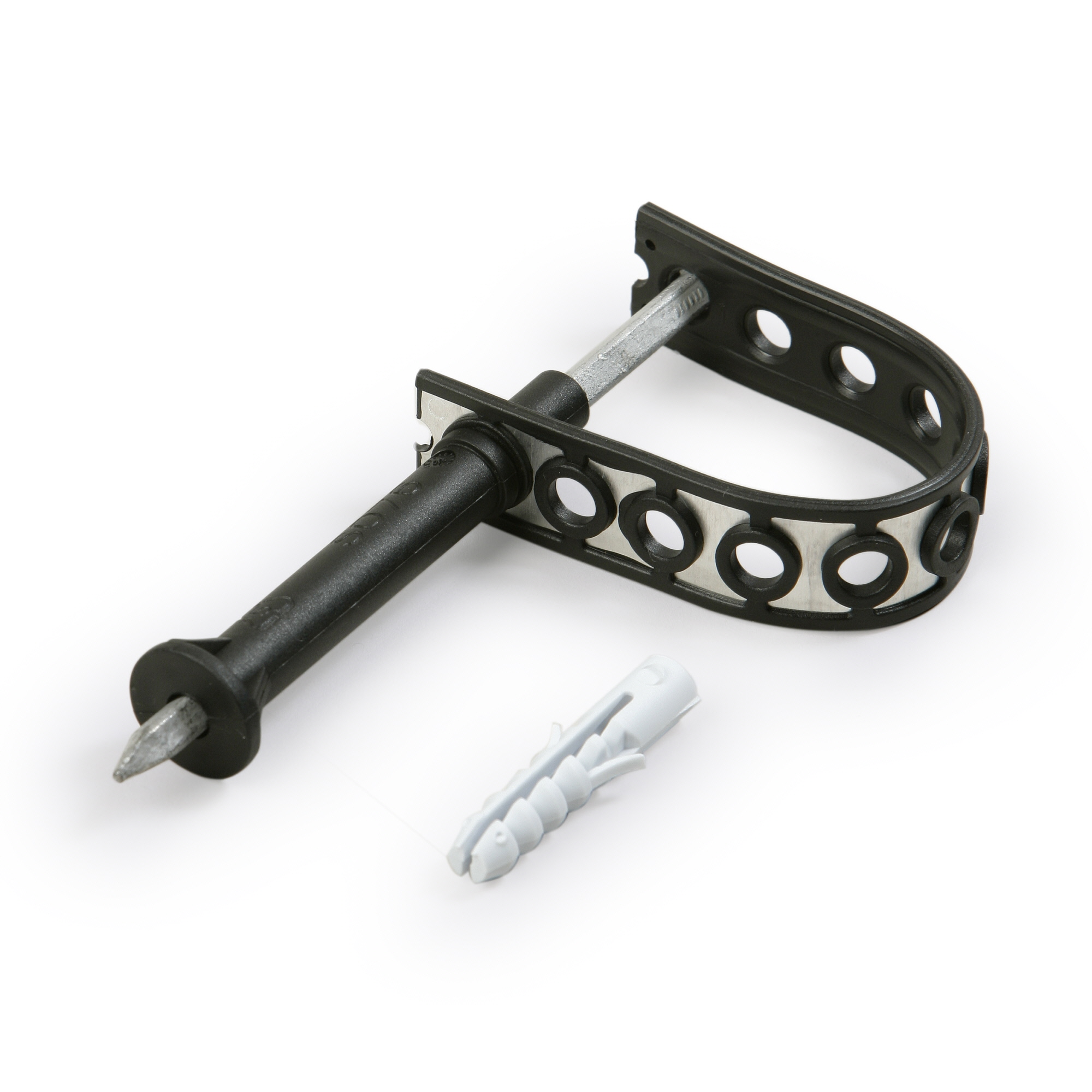

Distance nail SO76.19
For attachment of an overhead cable or a conductor to a wooden pole or a wall. The nails are designed so that the installed cable does not come into contact with the pole or wall surface.
| Code | SO76.19 |
| GTIN | 6418677446429 |

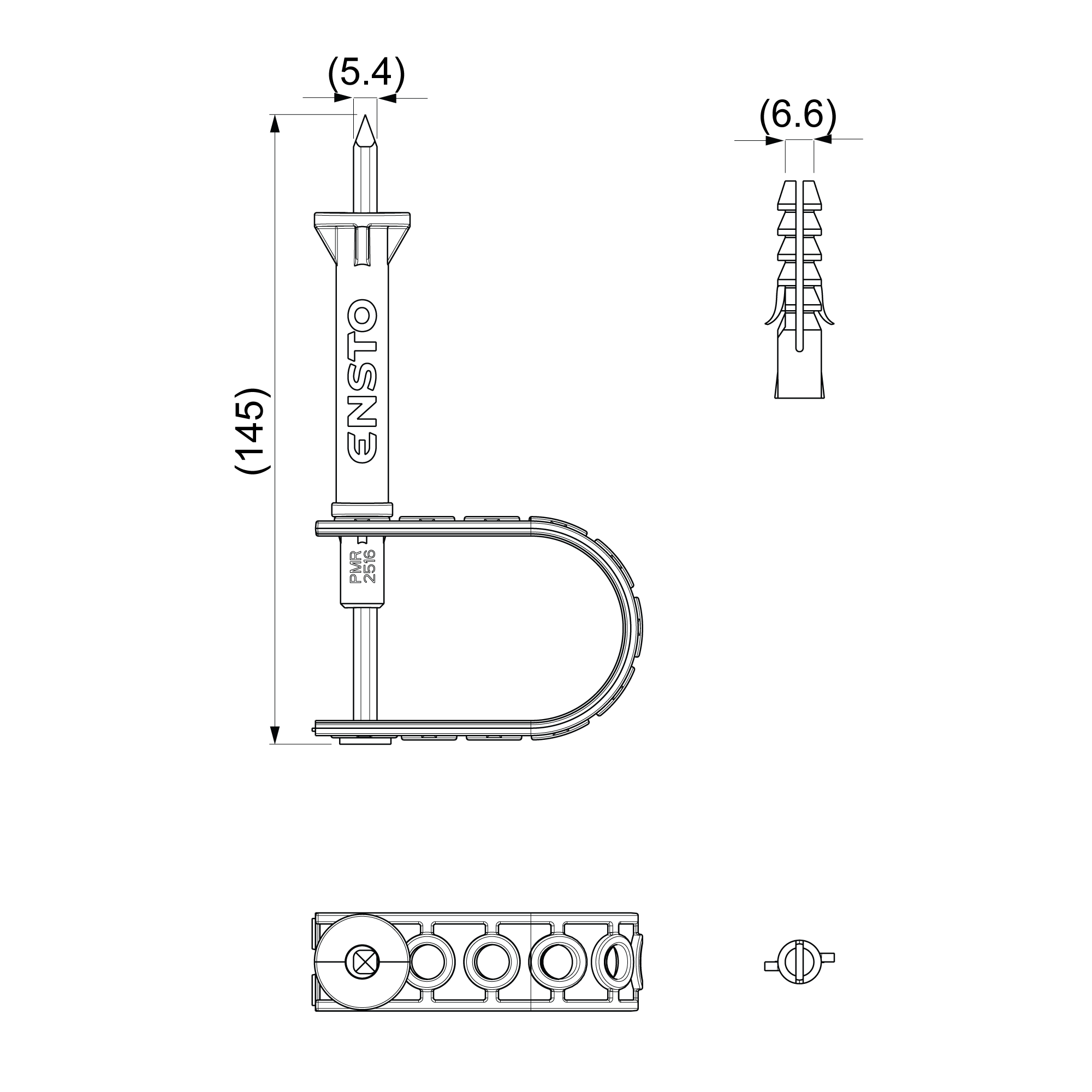

| Name | Distance nail 5.5x145 nail 10x50 plug |
| Dimensions | |
|---|---|
| Weight | 0.054 kg |
| Cable diameter | 12-47 |
| Mechanical | |
| Load in use max | 0.2 kN |
| Features | |
| Use for materials | Hard surfaces |
| ETIM | |
| ETIM Class | EC000127 |
| Diameter | 12 ... 47 mm |
| With distance to the wall | Yes |
| Model | Closed |
| Type of fastening | Glue |
| Material | Plastic |
| Surface protection | Untreated |
| UV resistant | Yes |
| Plastic bag | |
|---|---|
| Size | 25 pcs |
| Depth | 350 mm |
| Height | 10 mm |
| Width | 230 mm |
| Weight | 1.359 kg |
| Volume | 0.805 l |
| Carton | |
| Size | 100 pcs |
| Depth | 375 mm |
| Height | 115 mm |
| Width | 250 mm |
| Weight | 5.650 kg |
| Volume | 10.78125 l |
| Pallet package | |
| Size | 6300 pcs |
| Depth | 1200 mm |
| Height | 1050 mm |
| Width | 800 mm |
| Weight | 375.975 kg |
| Volume | 1008 l |
