For the attachment underground cables to wooden poles.
| Code | SO75.100 |
| GTIN | 6418677421730 |
| Name | Distance clip For all surfaces |
-
What are you looking for?
-

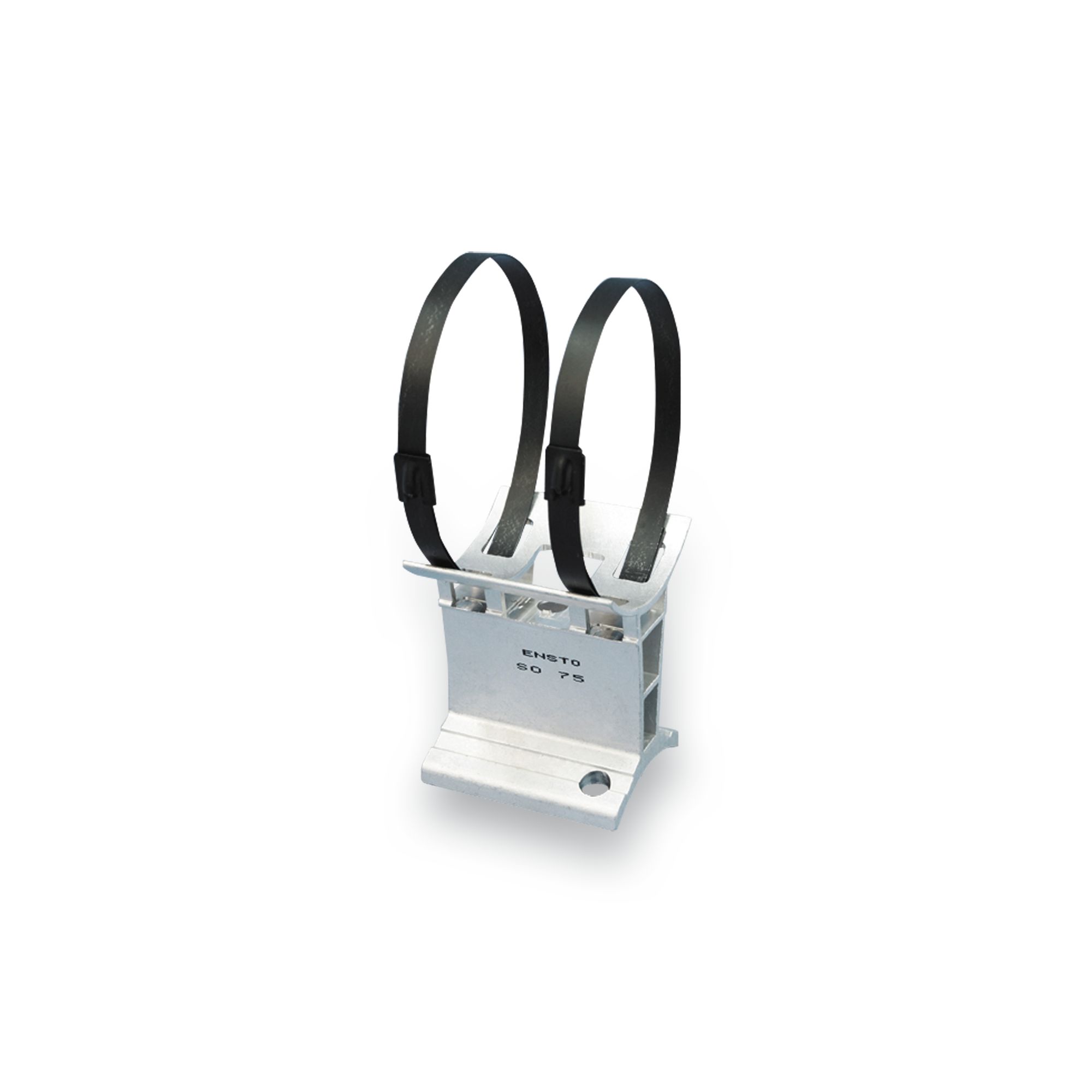

Distance clip SO75.100
Distance clip SO75.100
Technical information
Technical specifications
Technical specifications
| Dimensions | |
|---|---|
| Weight | 0.107 kg |
| Cable diameter | 45-100 |
| Mechanical | |
| Load in use max | 4 kN |
| Features | |
| Use for materials | All surfaces |
| ETIM | |
| ETIM Class | EC000127 |
| Diameter | 45 ... 100 mm |
| With distance to the wall | Yes |
| Model | Closed |
| Type of fastening | Screw hole |
| Material | Plastic |
| Surface protection | Untreated |
| UV resistant | Yes |
Packaging
Packaging
| Plastic bag | |
|---|---|
| Size | 1 pce |
| Depth | 300 mm |
| Height | 10 mm |
| Width | 152 mm |
| Weight | 0.111 kg |
| Volume | 0.456 l |
| Carton | |
| Size | 15 pcs |
| Depth | 375 mm |
| Height | 115 mm |
| Width | 250 mm |
| Weight | 1.881 kg |
| Volume | 10.78125 l |
| Pallet package | |
| Size | 945 pce |
| Depth | 1200 mm |
| Height | 1050 mm |
| Width | 800 mm |
| Weight | 138.503 kg |
| Volume | 1008 l |
