Pre-insulated compress joint SJ9.700
SJ9.700 is a compression joint for connect LV insulated overhead phase conductors. Tested according to self supporting system full tension. Full tension test load 85% of conductor breaking load. Test voltage 6 kV / 50 Hz / 1 min in water.
| Code | SJ9.700 |
| GTIN | 6438100332167 |
| Name | Pre-insulated compress joint 70 mm², White |

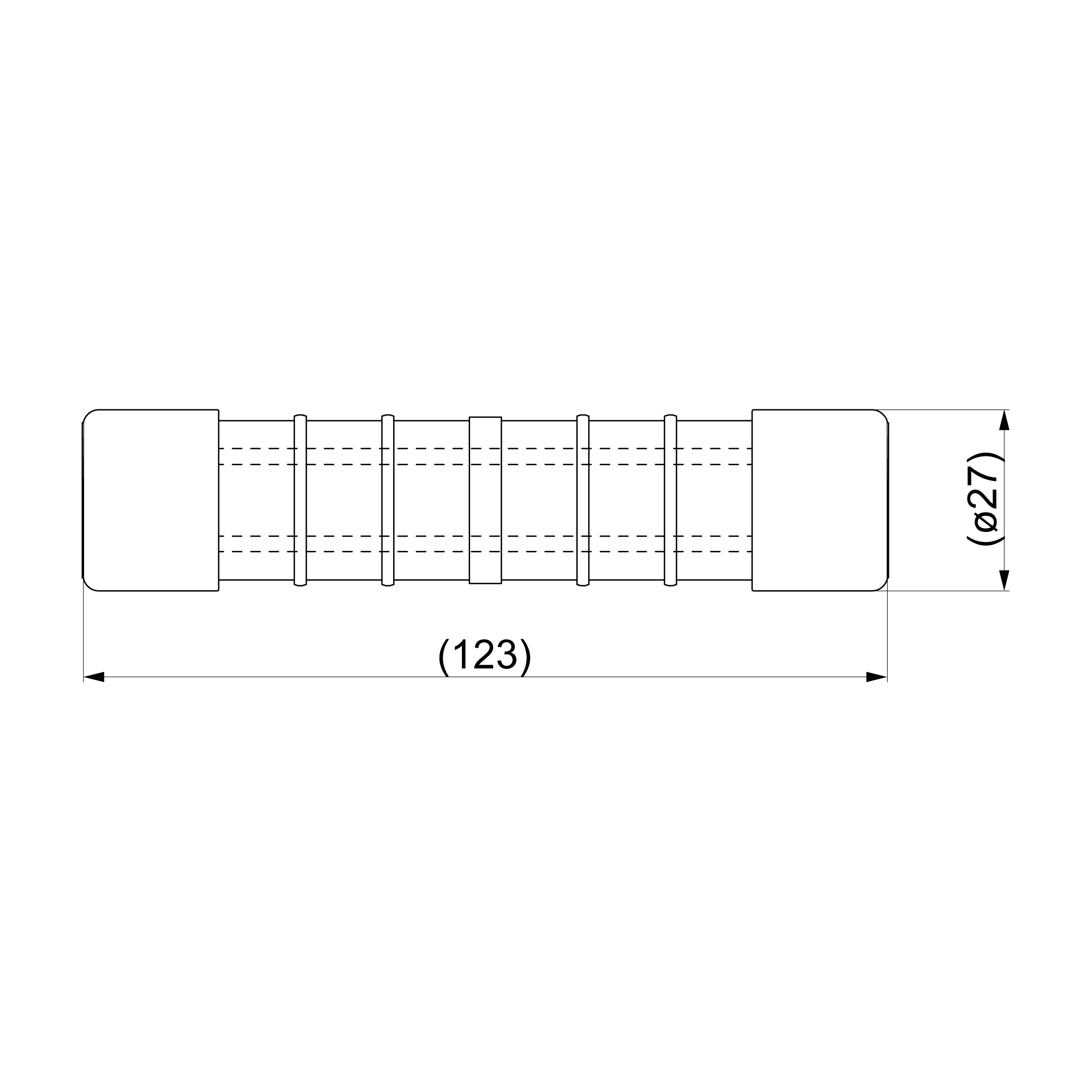

| Dimensions | |
|---|---|
| Weight | 0.10825 kg |
| Conductor size | 70 mm² |
| Certificates | |
| Standards | EN 50483-4:2009 |
| Colors | |
| Color identifier | White |
| Electrical values | |
| Highest system voltage | 1 kV |
| Test voltage in water | 6 kV / 50 Hz / 1 min |
| Features | |
| Crimping tool die | E215 |
| ETIM | |
| ETIM Class | EC001169 |
| Insulating material | Plastic |
| Number of conductors | 1 |
| Nominal cross section conductor | ≥ 70 mm² |
| Carton | |
|---|---|
| Size | 100 pcs |
| Weight | 10.875 kg |
16 mm², Blue
Code: SJ9.16
GTIN: 6438100318512
25 mm², Orange
Code: SJ9.25
GTIN: 6438100318529
35 mm², Red
Code: SJ9.35
GTIN: 6438100318536
50 mm², Yellow
Code: SJ9.50
GTIN: 6438100318543
