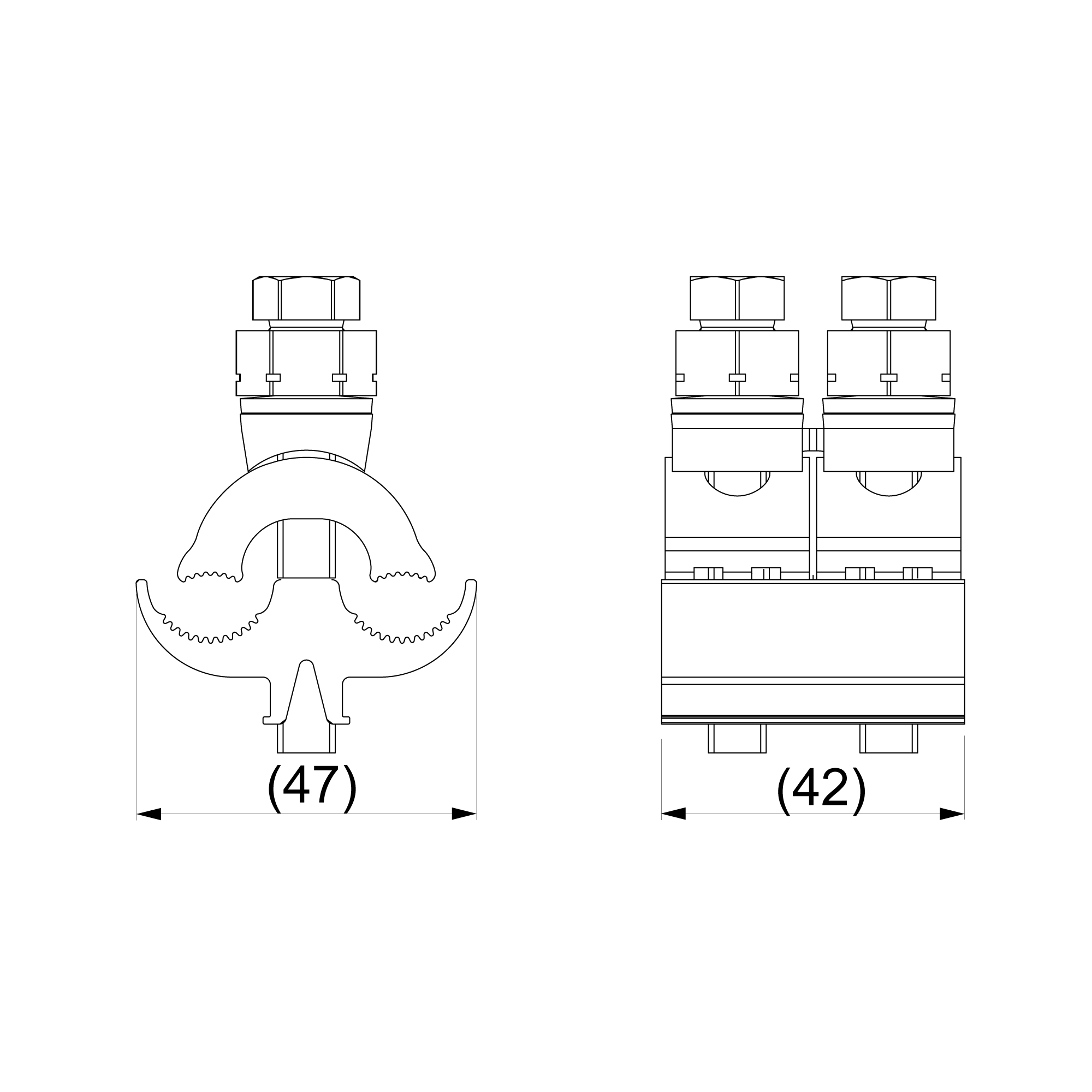

Parallel groove connector SL39.21
Non tension aluminium to aluminium LV and MV connections. The SL39.2 connector is suitable for AAC, AAAC and ACSR conductors. Equipped with two M8 bolts with shear head nuts.
| Code | SL39.21 |
| GTIN | 6418677456862 |
| Name | Parallel groove connector Al 16-150 mm² / Al 16-150 mm² |
| Dimensions | |
|---|---|
| Weight | 0.128 kg |
| Main conductor mm² | Al 16-150 |
| Branch conductor mm² | Al 16-150 |
| Conductor diameter | 4.5 ... 17.5 mm |
| Certificates | |
| Standards | IEC 61284 |
| Features | |
| Bolt | 2xM8 |
| Plastic cover | SP15 |
| Mechanical | |
| Tightening torque Nm | 22 Nm |
| ETIM | |
| ETIM Class | EC001062 |
| Nominal cross section main conductor, SM | 16 ... 150 mm² |
| Nominal cross section branch conductor, SE/RE | 16 ... 150 mm² |
| Nominal cross section branch conductor, SM/RM | 16 ... 150 mm² |
| Material main conductor | Aluminium |
| Material branch conductor | Aluminium |
| Terminal insulated | No |
| Clamping channel opening main conductor | Both sides open |
| Clamping channel opening branch conductor | Both sides open |
| Surface protection | Bare |
| Type of connection | Screwed connection |
| Plastic bag | |
|---|---|
| Size | 1 pcs |
| Depth | 152 mm |
| Height | 203 mm |
| Width | 10 mm |
| Weight | 0.228 kg |
| Volume | 0.30856 l |
| Carton | |
| Size | 50 pcs |
| Depth | 375 mm |
| Height | 115 mm |
| Width | 250 mm |
| Weight | 11.616 kg |
| Volume | 10.78125 l |
| Pallet package | |
| Size | 3150 pcs |
| Depth | 1200 mm |
| Height | 1050 mm |
| Width | 800 mm |
| Weight | 751.808 kg |
| Volume | 1008 l |
