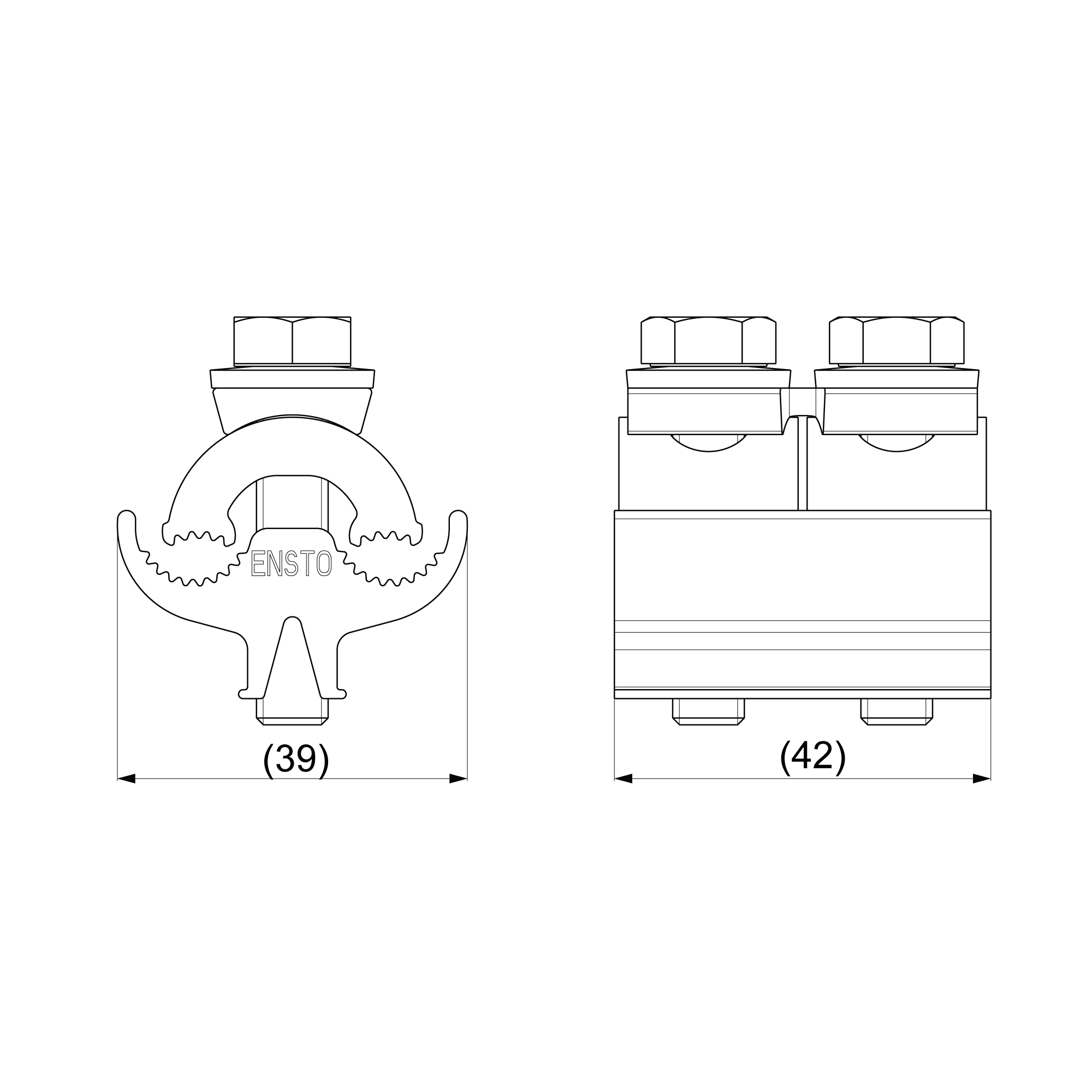

Parallel groove connector SL37.201
Non tension aluminium to aluminium connector SL37.201 is equipped with two M8 shear head bolts.
| Code | SL37.201 |
| GTIN | 6418677414602 |
| Name | Parallel groove connector Al 10-95 / Al 10-95 mm² |
| Dimensions | |
|---|---|
| Weight | 0.113 kg |
| Main conductor mm² | Al 10-95 |
| Branch conductor mm² | Al 10-95 |
| Conductor diameter mm | 3-13 / 3.5-13 |
| Certificates | |
| Standards | EN IEC 61238-1-1 |
| Mechanical | |
| Tightening torque Nm | 22 Nm |
| ETIM | |
| ETIM Class | EC001062 |
| Nominal cross section main conductor, SM | 10 ... 95 mm² |
| Nominal cross section branch conductor, SE/RE | 10 ... 95 mm² |
| Nominal cross section branch conductor, SM/RM | 10 ... 95 mm² |
| Material main conductor | Aluminium |
| Material branch conductor | Aluminium |
| Terminal insulated | No |
| Clamping channel opening main conductor | Both sides open |
| Clamping channel opening branch conductor | Both sides open |
| Surface protection | Bare |
| Type of connection | Screwed connection |
| Plastic bag | |
|---|---|
| Size | 1 pce |
| Depth | 152 mm |
| Height | 203 mm |
| Width | 10 mm |
| Weight | 0.213 kg |
| Volume | 0.30856 l |
| Carton | |
| Size | 50 pcs |
| Depth | 210 mm |
| Height | 160 mm |
| Width | 210 mm |
| Weight | 10.802 kg |
| Volume | 7.056 l |
| Pallet package | |
| Size | 3500 pcs |
| Depth | 1200 mm |
| Height | 840 mm |
| Width | 800 mm |
| Weight | 776.140 kg |
| Volume | 806.4 l |
