Insulation piercing connector SLIW66.57

Multitap connector SLIW66 with universal insulation piercing connector SLIW57. SLIW66.57 is for use with aluminium or copper conductors. Connector is design enable to facilitate several out-going conductors up to 1000 V a.c. Each branch conductor can be connected with a separate screw. Test voltage 6 kV/50 Hz/1 min in water. Connector's design enables hot line installation without peeling insulation from conductor.

Code	SLIW66.57
GTIN	6438100322359
Name	Insulation piercing connector Multitap connector with IPC, 25-150 mm² / 2x6-35 mm²

Contact sales

Technical information

Technical specifications

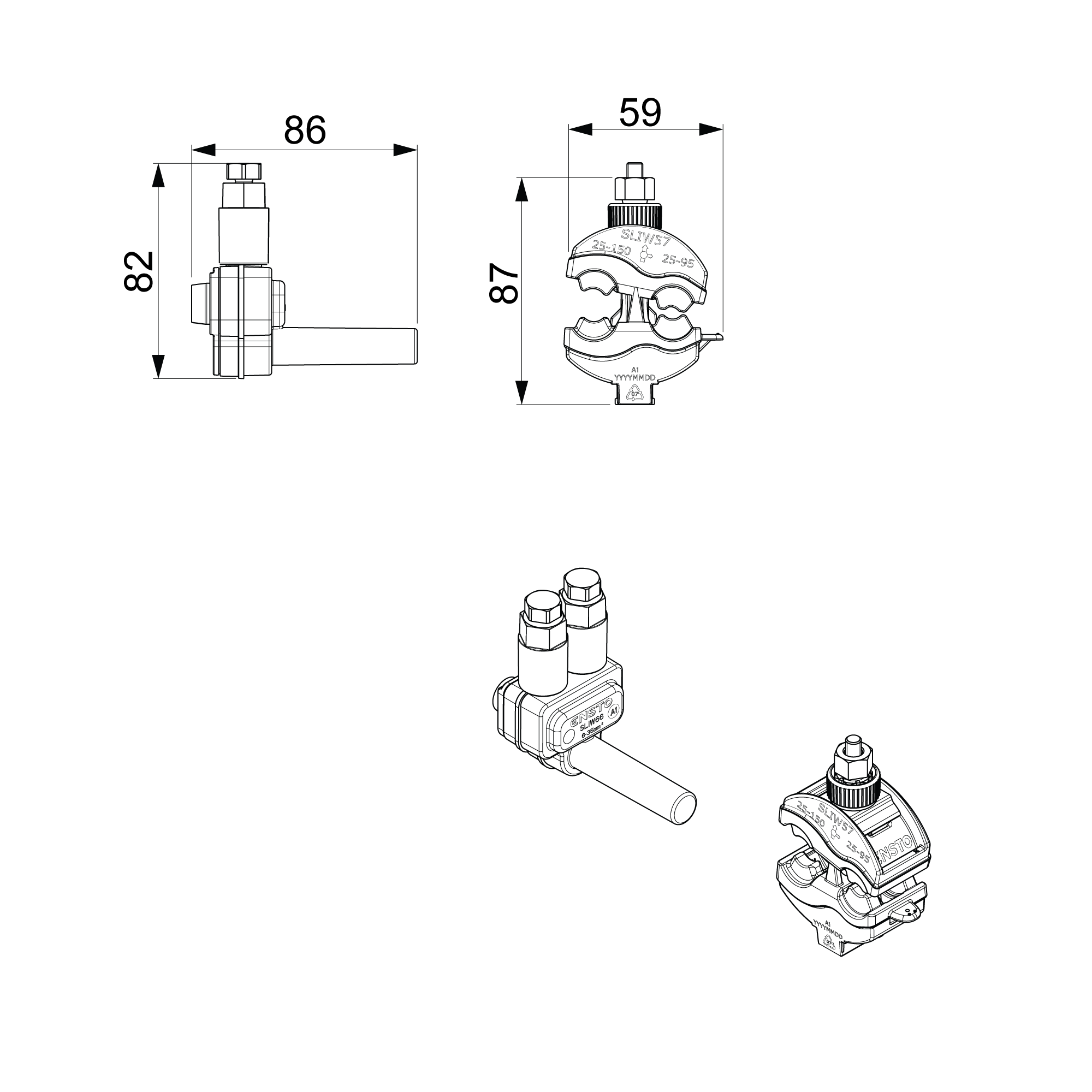

Dimensions
Weight	0.217 kg
Branch conductor mm²	2 x 6-35 mm²
Conductor diameter	4.5 ... 11 mm
Certificates
Standards	EN 50483-4:2009
Connector class	A1
Mechanical
Tightening torque	15 Nm ± 1 / 11 Nm ± 1
ETIM
ETIM Class	EC001062
Nominal cross section main conductor, SM	25 ... 150 mm²
Nominal cross section branch conductor, SE/RE	6 ... 35 mm²
Nominal cross section branch conductor, SM/RM	6 ... 35 mm²
Material main conductor	Aluminium/copper
Material branch conductor	Aluminium/copper
Terminal insulated	Yes
Clamping channel opening main conductor	Both sides open
Clamping channel opening branch conductor	Both sides open
Surface protection	Tinned
Type of connection	Insulation piercing connector IPC

Packaging

Plastic bag
Size	1 pce
Depth	300 mm
Height	10 mm
Width	152 mm
Weight	0.221 kg
Volume	0.456 l
Carton
Size	40 pcs
Depth	398 mm
Height	221 mm
Width	263 mm
Weight	9.116 kg
Volume	23.132954 l
Pallet package
Size	1440 pcs
Depth	1200 mm
Height	880 mm
Width	800 mm
Weight	353.176 kg
Volume	844.8 l
