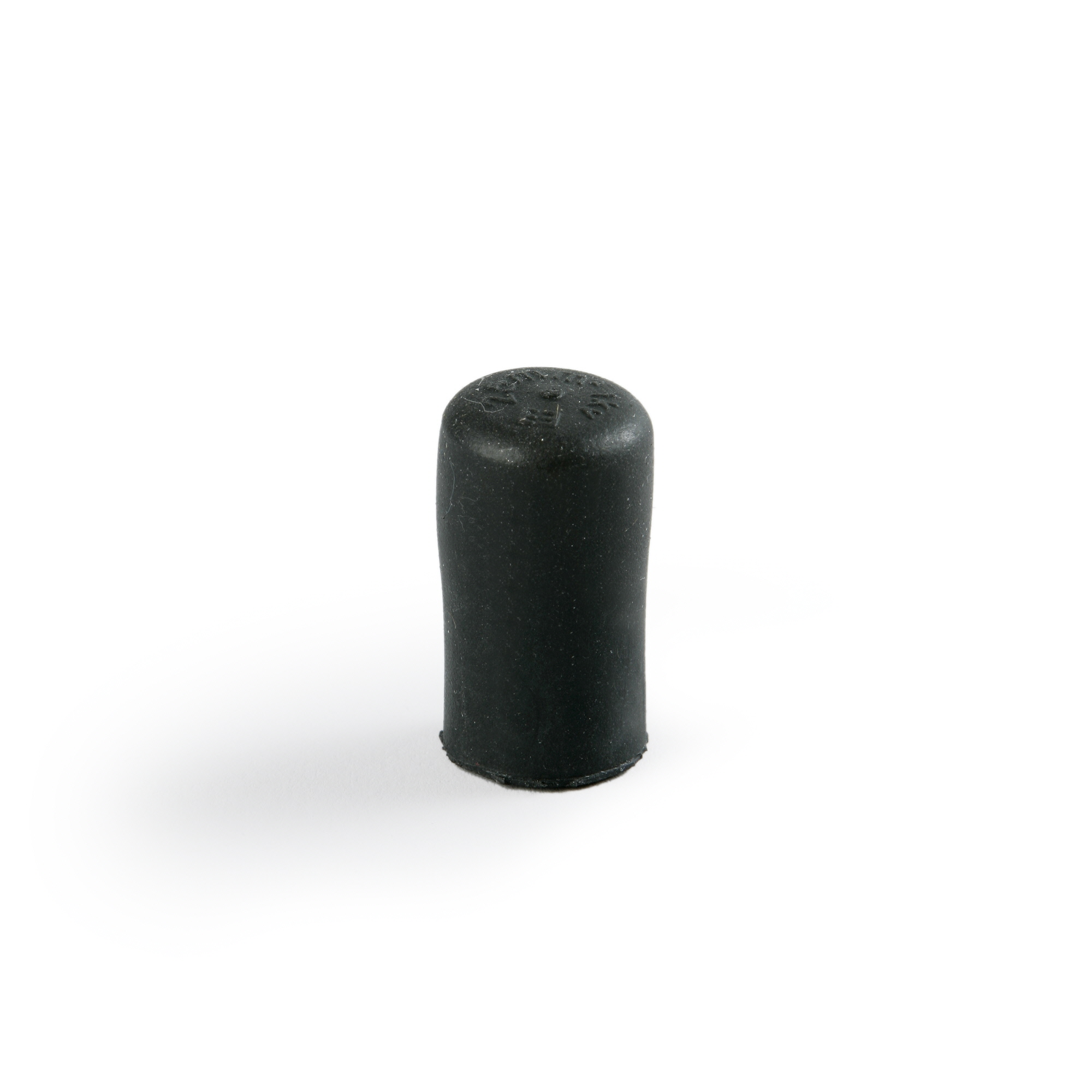

End cap PK99.025
PK99.025 is a grease filled end cap and is used for preventing water entry into the end of the branch cable.
| Code | PK99.025 |
| GTIN | 6418677400995 |
| Name | End cap 10-25 mm² |

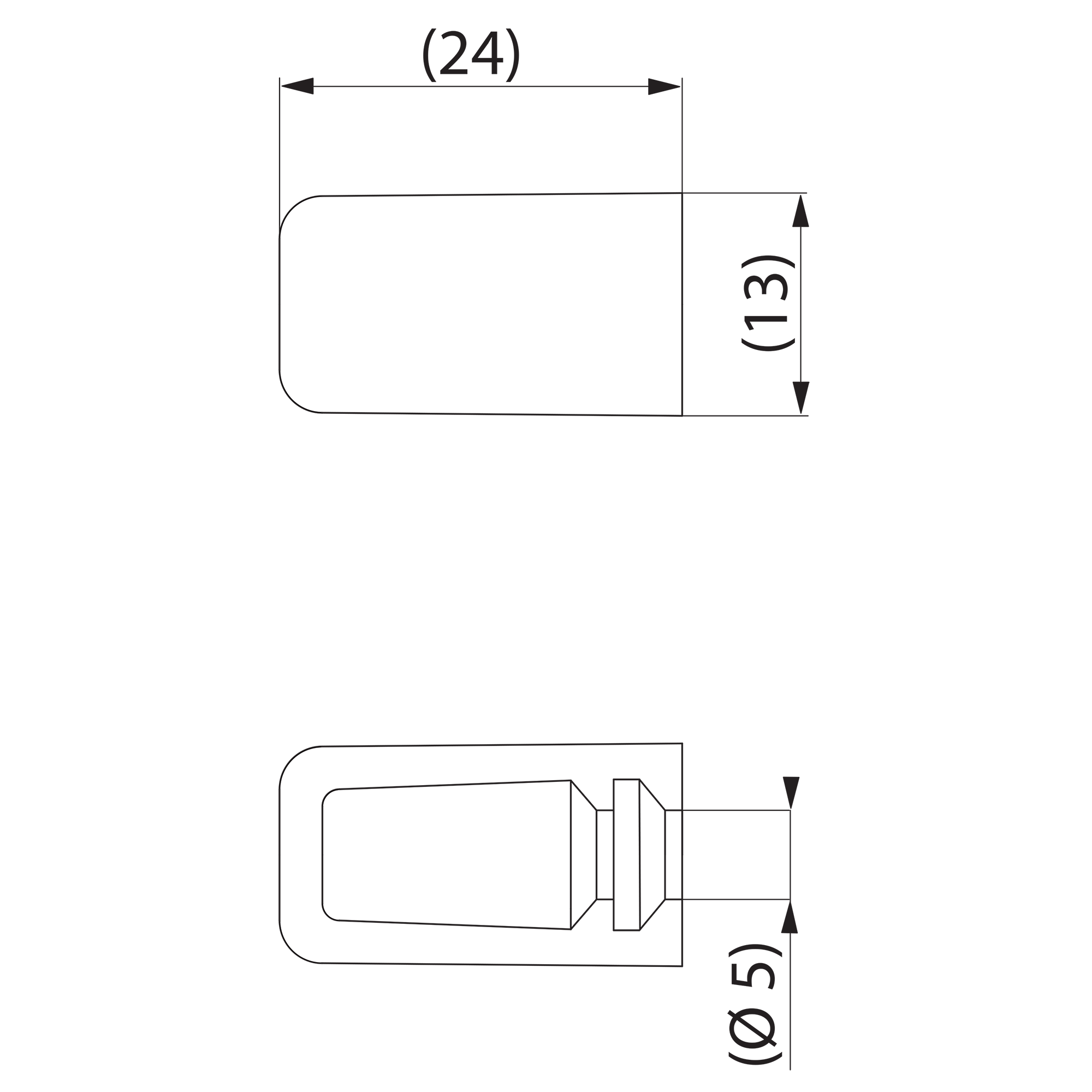

| Dimensions | |
|---|---|
| Weight | 0.003 kg |
| Conductor diameter | 7 ... 9.4 mm |
| Conductor size | 10-25 mm² |
| Certificates | |
| Standards | EN 50483-4:2009 |
| Electrical values | |
| Insulation level Ui | 1000 V |
| ETIM | |
| ETIM Class | EC000218 |
| Nominal cross section | 10 ... 25 mm² |
| Colour | Black |
| Material | Ethylene-propylene diene monomer rubber (EPDM) |
| Halogen free | Yes |
| With inner glue | No |
| Carton | |
|---|---|
| Size | 1000 pcs |
| Depth | 210 mm |
| Height | 160 mm |
| Width | 210 mm |
| Weight | 3.152 kg |
| Volume | 7.056 l |
| Pallet package | |
| Size | 70000 pcs |
| Depth | 1200 mm |
| Height | 840 mm |
| Width | 800 mm |
| Weight | 240.640 kg |
| Volume | 806.4 l |
