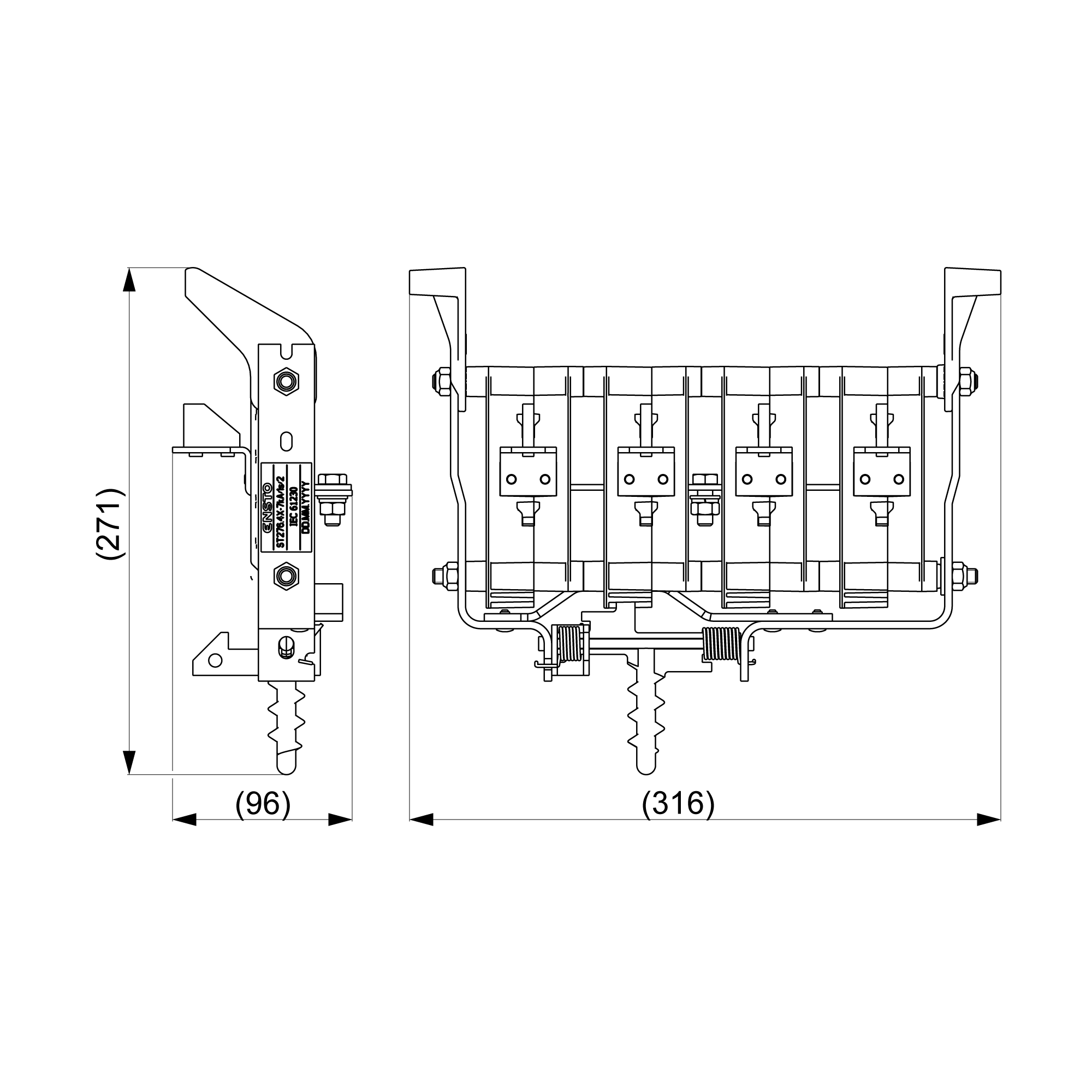

Earthing device ST276.41
Earthing devices are used for temporary earthing of the low-voltage network during installation work by attaching the earthing device to the pole fuse switch. Suitable for 160 A pole fuse switches with 4 poles. Conductor is included. Short–circuit current 7 kA/1 s/1.7.
| Code | ST276.41 |
| GTIN | 6438100324582 |
| Name | Earthing device For SZ160.4x |
| Certificates | |
|---|---|
| Standards | IEC 61230 |
| Dimensions | |
| Weight | 1.79 kg |
| Electrical values | |
| Nominal voltage (Un) | ≥ 0.5 kV |
| Features | |
| Number of poles | 4 |
| ETIM | |
| ETIM Class | EC000490 |
| Type of accessory/spare part | Earthing block |
| Material | Copper |
| Carton | |
|---|---|
| Size | 1 pce |
| Depth | 375 mm |
| Height | 115 mm |
| Width | 250 mm |
| Weight | 2.006 kg |
| Volume | 10.78125 l |
| Pallet package | |
| Size | 63 pcs |
| Depth | 1200 mm |
| Height | 1085 mm |
| Width | 800 mm |
| Weight | 146.378 kg |
| Volume | 1041.6 l |
Al/Cu 2x(16-120) mm², poles 1
Code: SZ160.1
GTIN: 6438100318307
Al/Cu 2x(16-120) mm², poles 3
Code: SZ160.3
GTIN: 6438100318314
Al/Cu 2x(16-120) mm², poles 3+PEN
Code: SZ160.32
GTIN: 6438100318321
Al/Cu 2x(16-120) mm², poles 3+PEN, KG90
Code: SZ160.322
GTIN: 6438100329228
