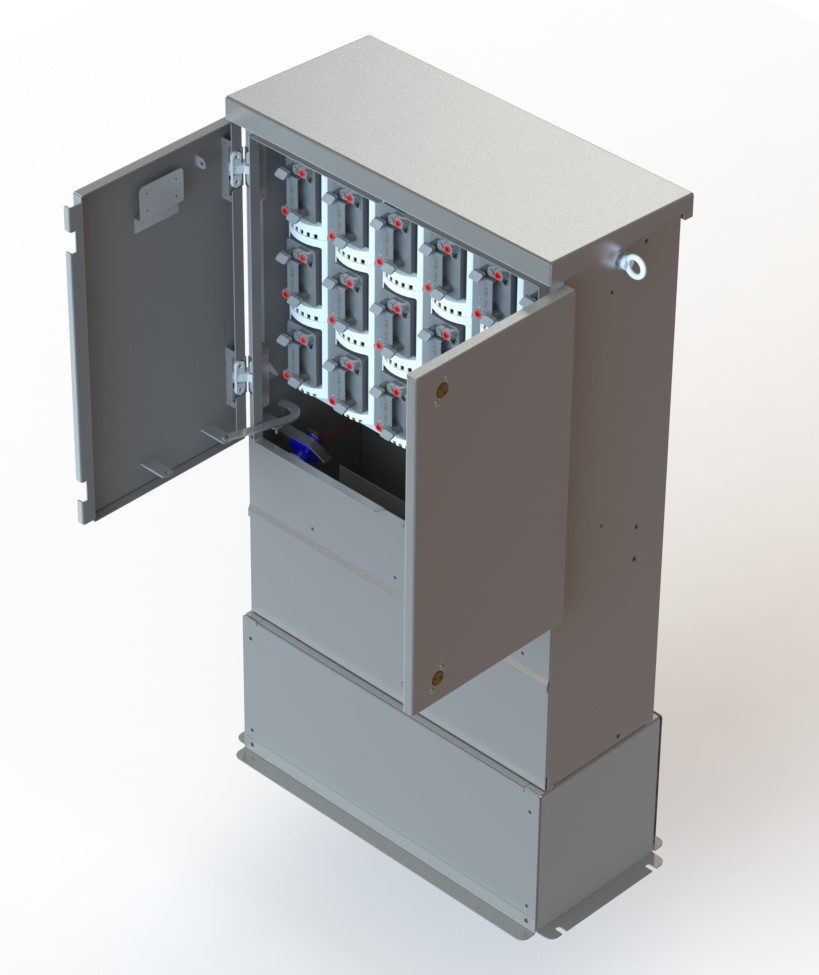

Pillar RY250715
The units have main busbar connections suitable for 1200A and neutral busbar suitable for 1000A along with generator connection on the neutral only in stainless steel housing.
| Code | RY250715 |
| GTIN | 5391540620106 |
| Name | Pillar Guernsey 10 Way Feeder SS Pillar |
| Dimensions | |
|---|---|
| Weight | 300 kg |
| Height | 1708 mm |
| Width | 1526 mm |
| Length | 484 mm |
| Others | |
| ETIM Class | EC001040 |
| Features | |
| Operating voltage | 400V |
| Highest system voltage | 0.4 kV |
| ETIM | |
|---|---|
| Max. rated operation voltage Ue AC | 400 V |
| Rated permanent current Iu | 1200 A |
| Degree of protection (IP), front side | IP44 |

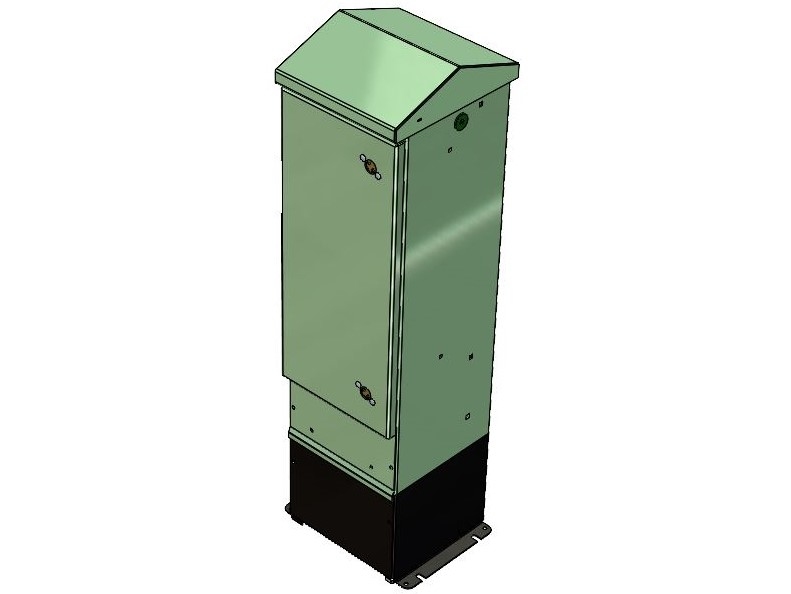

630 A, 460 mm, green
