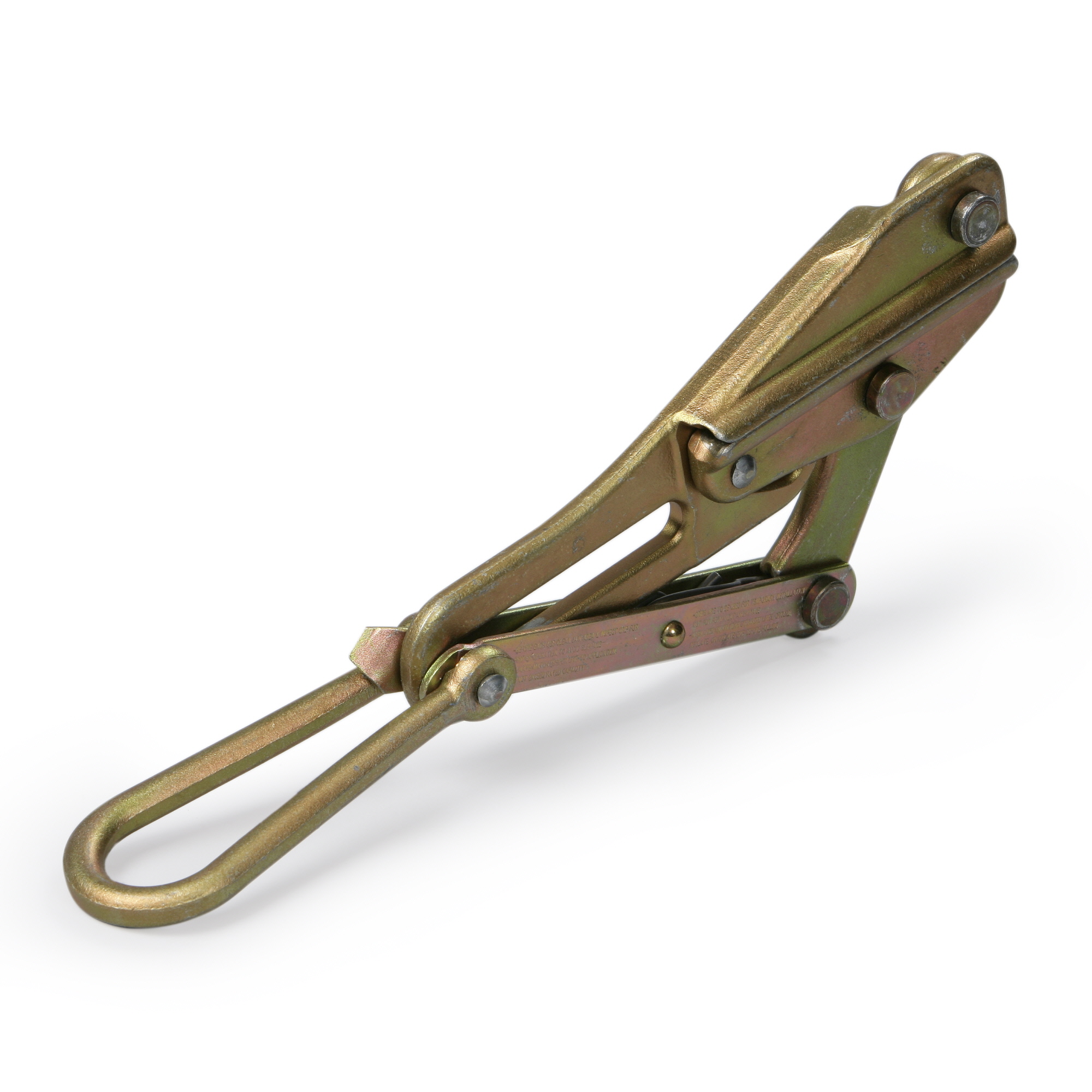

Come along clamp CT102.501
For tensioning both bare and covered conductors overhead line spans. The grips cover a wide range of diameters and make a good fixing and high tension force. CT102 is easy to install and change on the line.
| Code | CT102.501 |
| GTIN | 6418677409196 |
| Name | Come along clamp Ø 7.87-13.46 mm |
| Dimensions | |
|---|---|
| Weight | 1.68 kg |
| Covered conductors | 35 ... 50 mm² |
| Conductor diameter | 7.87 ... 13.46 mm |
| Mechanical | |
| Continuous max load | 20 kN |
| ETIM | |
| ETIM Class | EC003007 |
| Type of accessory/spare part | Other |
| Carton | |
|---|---|
| Size | 2 pcs |
| Depth | 247 mm |
| Height | 100 mm |
| Width | 156 mm |
| Weight | 3.495 kg |
| Volume | 3.8532 l |
| Pallet package | |
| Size | 4375 pcs |
| Depth | 1200 mm |
| Height | 870 mm |
| Width | 800 mm |
| Weight | 7665.313 kg |
| Volume | 835.2 l |
