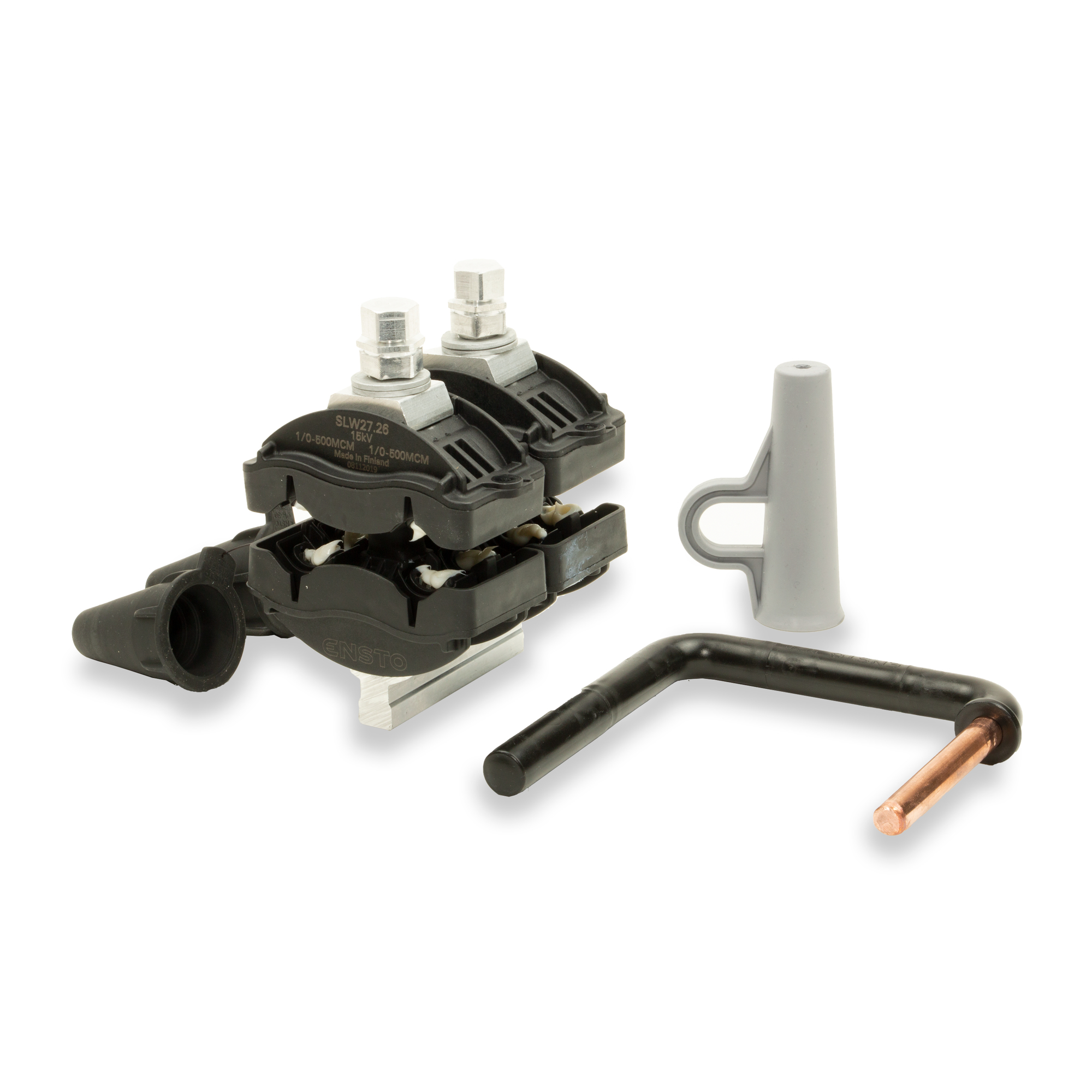

Avgreningsklemme SLW27.261
A watertight shear head bolt connector for Medium Voltage Covered Conductors (MV CC) non-tension aluminium to aluminium connections without peeling the insulation. Suitable for covered conductors with total covering thickness of .165 inches. Includes a tin plated C-shape copper stirrup.
| Kode | SLW27.261 |
| GTIN | 6438100380588 |
| Navn | Avgreningsklemme 15 kV rated covered conductor with covering thickness of .165 inches and overall diameter range of .72 - 1.15 inches. |
| Mål | |
|---|---|
| Vekt | 0.92 kg |
| Kartong | |
|---|---|
| Pakkestørrelse | 6 pcs |
| Dybde | 375 mm |
| Høyde | 115 mm |
| Bredde | 250 mm |
| Vekt | 5.736 kg |
| Volum | 10.78125 l |
| Pallepakke | |
| Pakkestørrelse | 378 pcs |
| Dybde | 1200 mm |
| Høyde | 1090 mm |
| Bredde | 1000 mm |
| Vekt | 386.368 kg |
| Volum | 1308 l |
