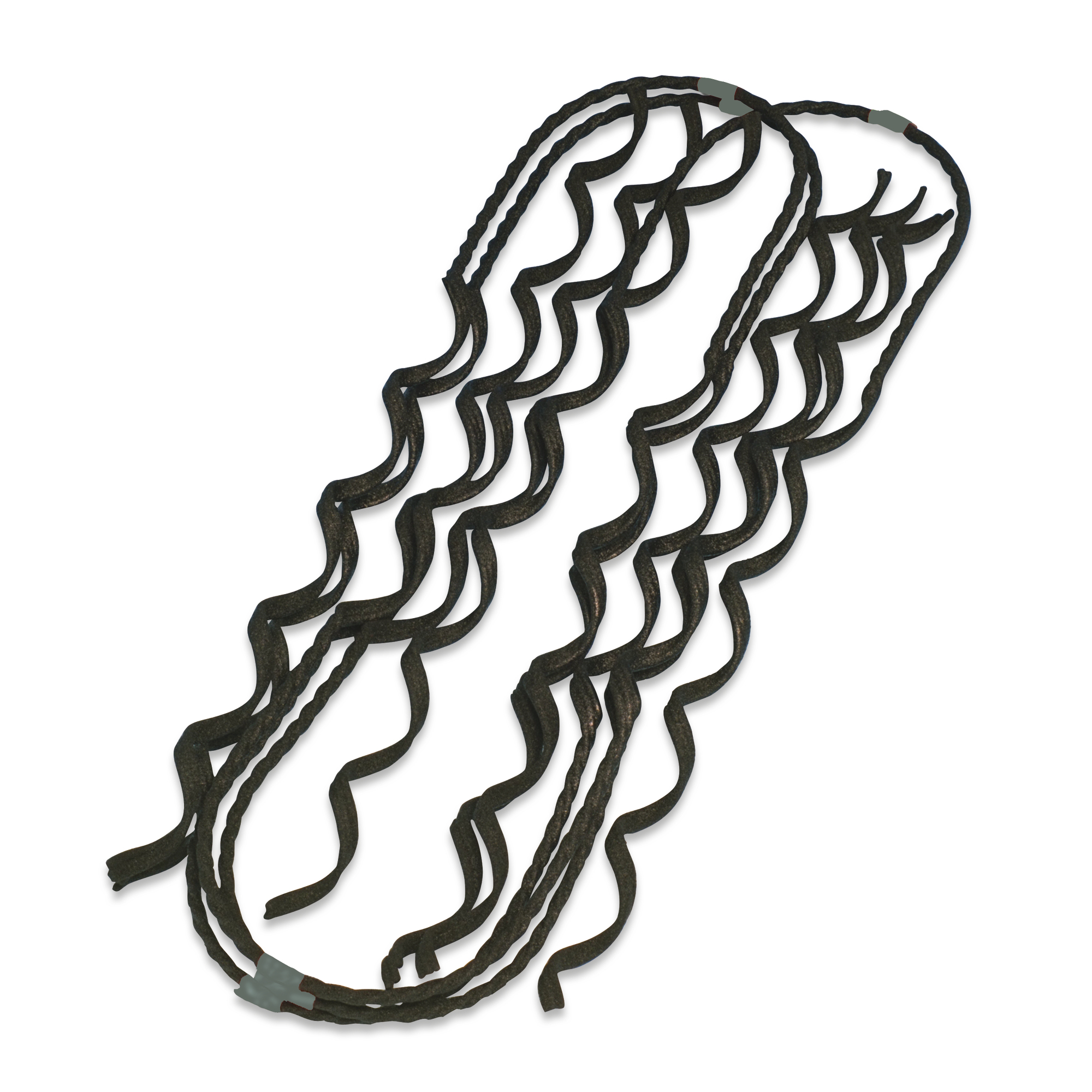

Bendslespiral SO216.340
Used with covered conductors for tying the conductors to the insulators. Can be used as both top and side ties. Easy to install without tools. The tie is installed on the insulation of the covered conductor. The sets include 6 pcs ties (one set/cross arm). The right size is easy to recognize by the colour code.
| Kode | SO216.340 |
| GTIN | 6438100399559 |
| Navn | Bendslespiral CC 340 mm², neck 73-85 mm |
| Sertifikater | |
|---|---|
| Standard merking | EN 50397-2:2009 |
| Farger | |
| Color identifier | Grå |
| Mål | |
| Vekt | 1.7 kg |
| Cable diameter | 31.5 - 36.0 mm |
| Isolator nakke | 73-85 mm |
| Belagt line | ≥ 340 mm² |
| ETIM | |
| ETIM Class | EC003516 |
| Type tilbehør/reservedel | Other |
| Kartong | |
|---|---|
| Pakkestørrelse | 10 pce |
| Dybde | 790 mm |
| Høyde | 200 mm |
| Bredde | 290 mm |
| Vekt | 17.500 kg |
| Volum | 45.82 l |
| Pallepakke | |
| Pakkestørrelse | 250 pce |
| Dybde | 1245 mm |
| Høyde | 1070 mm |
| Bredde | 800 mm |
| Vekt | 457.500 kg |
| Volum | 1065.72 l |
