Terminais ext. Thermorétractab HOTP3.1212L

Terminais ext. Thermorétractab HOTP3.1212L

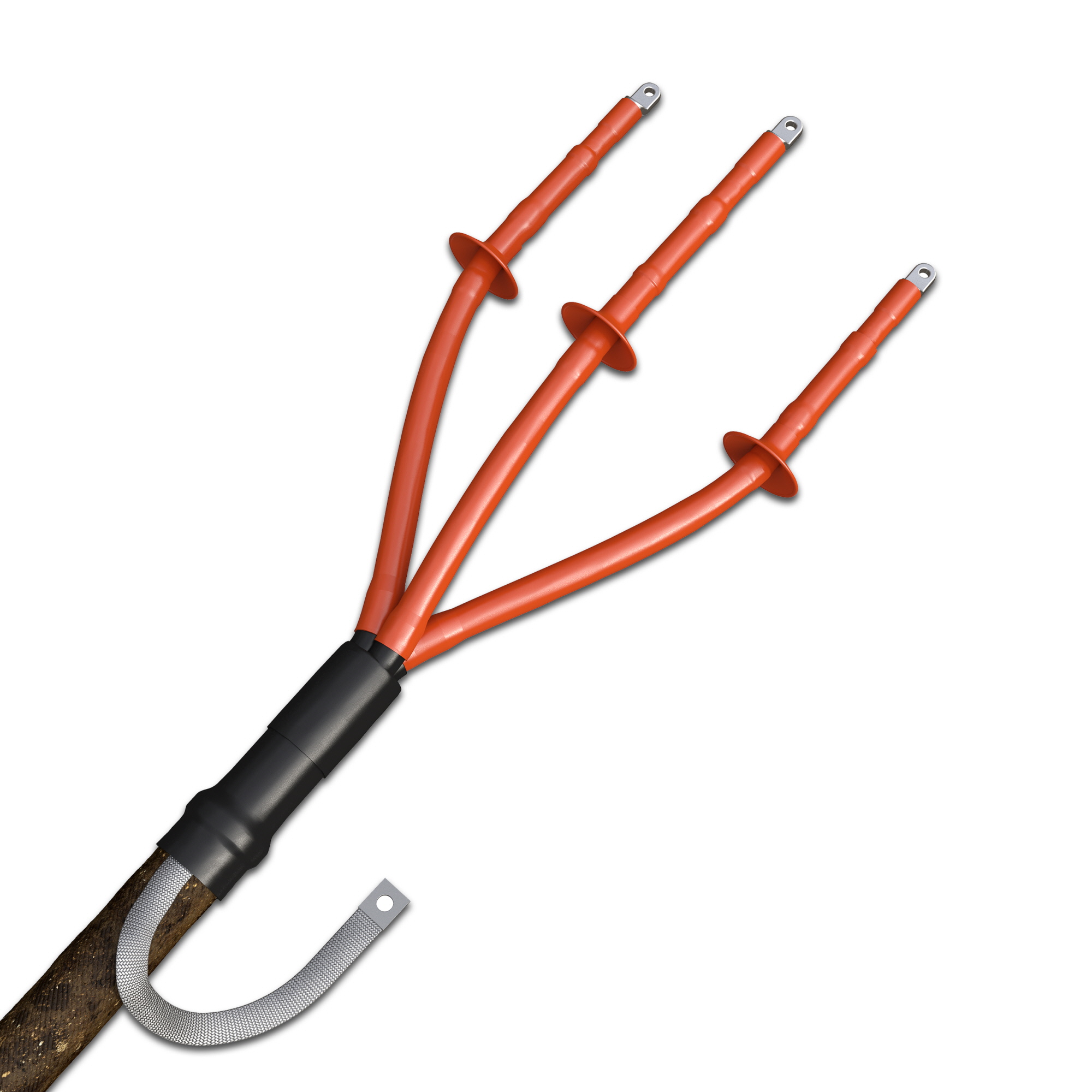

The termination kit is used for outdoor terminating of max. 12 kV cables with belted paper insulation and lead or aluminium sheath. The kit is suitable for three core cables, either armoured or non-armoured. The kit includes the shear head bolt cable lugs suitable both for aluminium and copper conductors, and all the components needed for terminating: mastics, tapes, cleaning and grinding materials, heat shrink oil resistant tubes, a semiconductive breakout, insulating anti-tracking tubes and

Code HOTP3.1212L
GTIN 6438100306526
Nom Terminais ext. Thermorétractab
6/10 (12) kV 3x35-70 mm² belted paper three core with lug light
Contacter le service commercial

Informations techniques

Spécifications techniques

Caractéristiques
Tension assignée U0/U (Um) 6.35/11 (12) kV
Ligne de fuite 710 mm
Diamètre des ailettes 90 mm

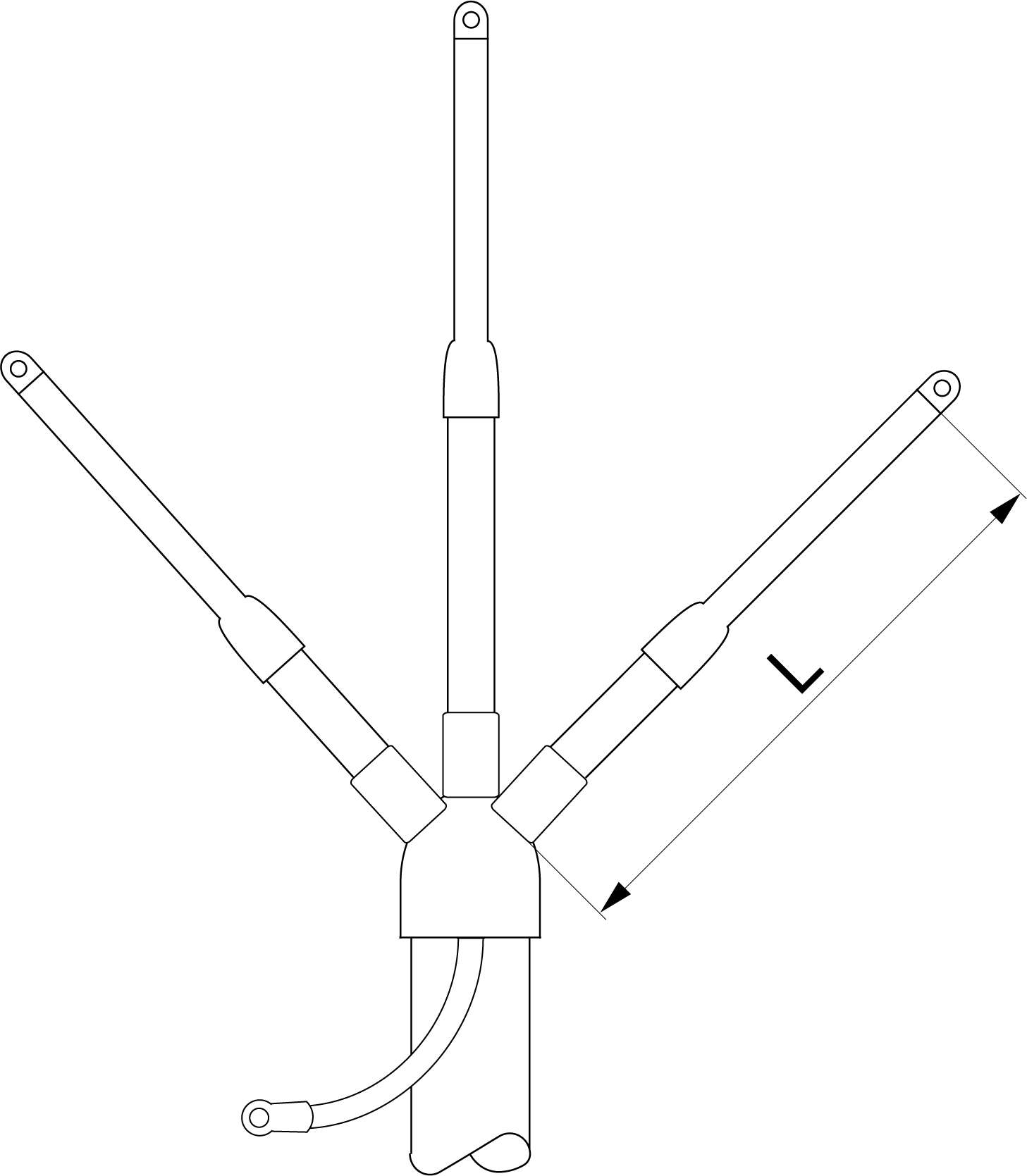

Termination length (Lt) 650 ... 1300 mm
Valeurs électriques
Nombre d´ailettes 1
Section nominale 35 ... 70 mm²
Taille du conducteur 12 kV Al/Cu 35-70
Câble
Matériau d´isolation Papier
Matériau de l´écran/blindage Câble-Cu
Nombre de noyaux 3
Dimensions
Poids 2.44 kg
ETIM
ETIM Class EC003520
Nombre de conducteurs 3
Adapté aux espaces intérieurs No
Adapté à un usage extérieur Yes
Type d'embout Heat-shrink
Cosse électrique livrée Yes
Forme de cosse Screw connection
Section nominale 35 ... 70 mm²

Packaging

Carton
Taille 1 pce
Profondeur 375 mm
Hauteur 115 mm
Largeur 250 mm
Poids 2.656 kg
Volume 10.78125 l
Emballage palette
Taille 63 pcs
Profondeur 1200 mm
Largeur 800 mm
Poids 187.328 kg
