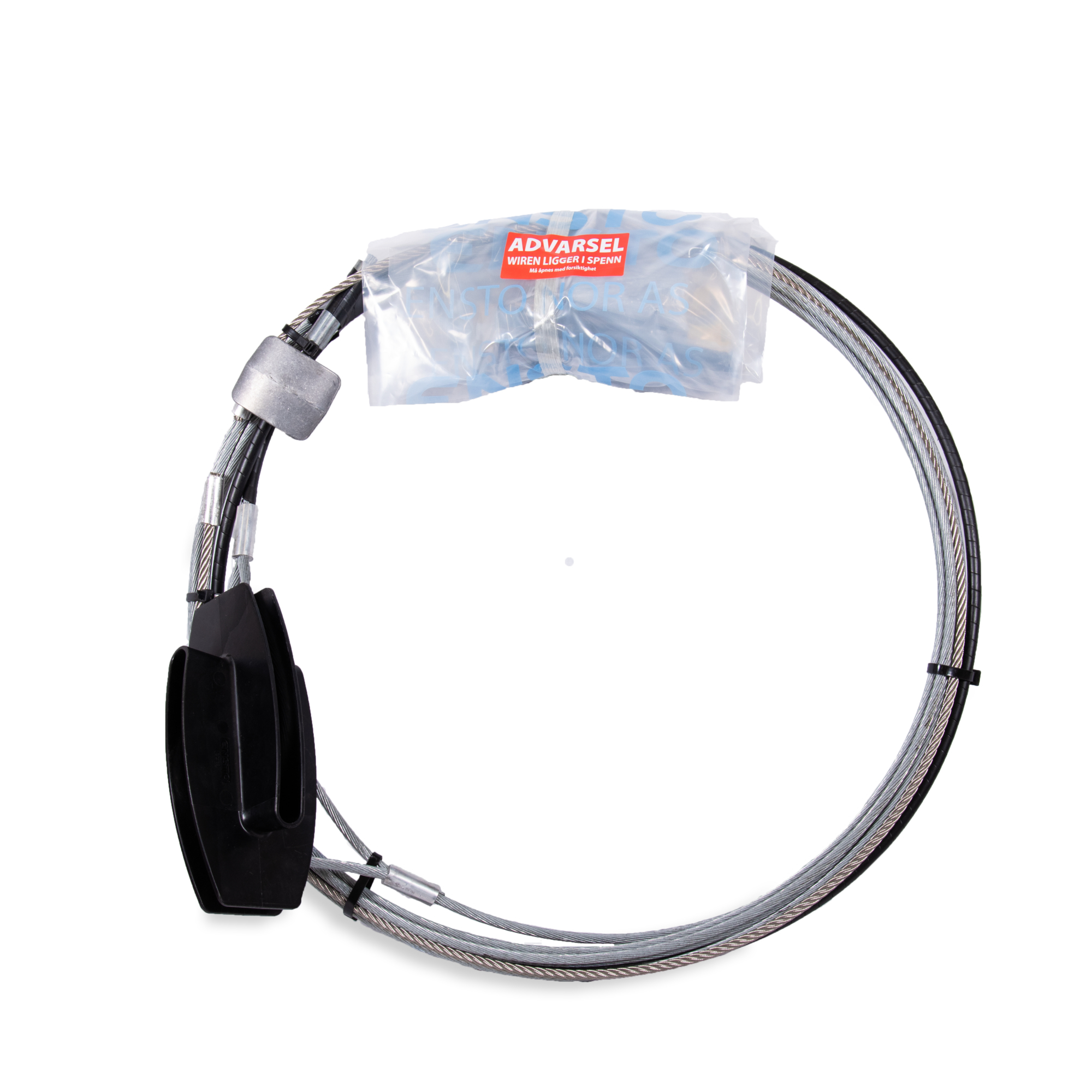

Ensemble de haubans NO2806203
Guyline set with 24 kV insulator. Contains wire with connector and pre-pressed press locks. Silk wire around post, stay clamp with double wedge, guyline indicators and guyline anchors with hook.
| Code | NO2806203 |
| GTIN | 7070918501145 |
| Nom | Ensemble de haubans St.wirekit 70mm² w/ ins |
| Dimensions | |
|---|---|
| Poids | 12 kg |
| Hauteur | 130 mm |
| Largeur | 700 mm |
| Longueur | 700 mm |
| Normes | |
| Normes | EN 12385 |
| Caractéristiques | |
| Tension | 24000 V |
| Diamètre | 9 ... 9.27 mm |
| Charge de rupture minimale spécifiée | 75.58 |
| ETIM | |
| ETIM Class | EC003513 |
| Type d'accessoire | Stay wire set |
| Yes | |
| No | |
| Matériau | Steel |
| Traitement de surface | Galvanic/electrolytic zinc plated |
| Résistant aux UV | Yes |
| Section transversale | 70 ... 70 mm² |
| Longueur | 14000 mm |
| Isolateur | Yes |
Upper end clamp, length 15.0 m
Code: SHS25K.150L
GTIN: 6418677407673
Upper end + automatic clamp, length 15.0 m
Code: SHS25K.150LA
GTIN: 6418677416965
Upper end iron, length 15 m
Code: SHS25K.150R
GTIN: 6418677407680
Upper end clamp, ceramic, length 16.5 m
Code: SHS25K.165L
GTIN: 6418677407697
