Pince de tension SO85.2
For dead-ending bare and covered conductors. The covered conductor has to be peeled before installing the clamp. The body is made of corrosion resistant aluminium alloy and the bolts are hot dip galvanized steel. Breaking load >35 kN.
| Code | SO85.2 |
| GTIN | 6418677405136 |
| Nom | Pince de tension Dia 6-14.9 mm (AAAC 25 - 150 mm²), Suspension bolt D19 mm |
| Certificats | |
|---|---|
| Normes | IEC 61284 |

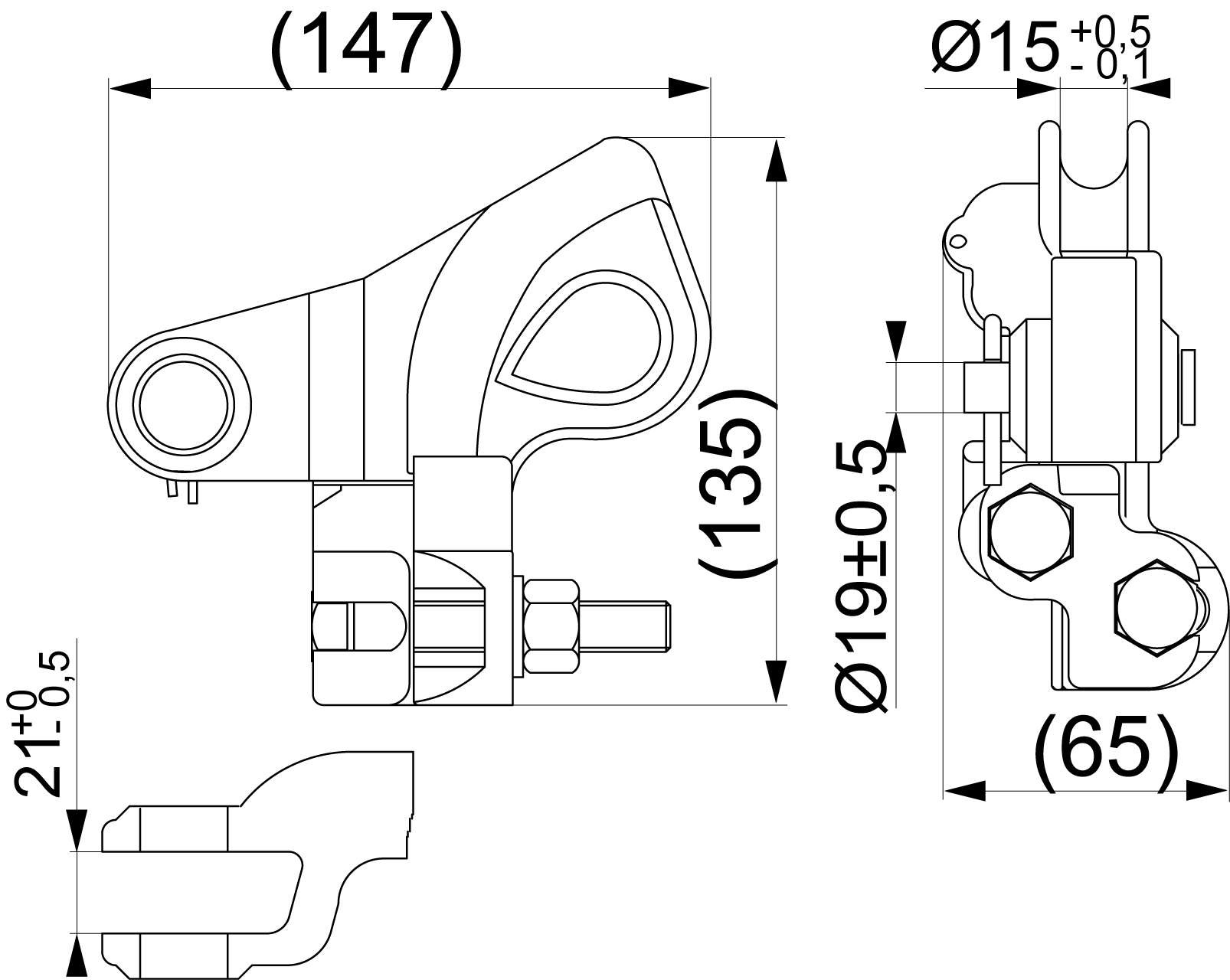

| Dimensions | |
| Poids | 0.781 kg |
| Hauteur | 65 mm |
| Largeur | 135 mm |
| Longueur | 147 mm |
| Diamètre du conducteur | 6 ... 14.9 mm |
| Boulon de fixation | 19 mm |
| Caractéristiques | |
| Boulon | 2 x M12 |
| Pour taille de conducteur | AAAC 25-132, PAS 35-120, ACSR 25-99 |
| Mécanique | |
| Charge de rupture | 35 kN |
| Charge permanente maximale | 20 kN |
| Couple de serrage | 55 Nm |
| ETIM | |
| ETIM Class | EC003516 |
| Type d'accessoire | Other |
| Carton | |
|---|---|
| Taille | 25 pcs |
| Profondeur | 210 mm |
| Hauteur | 160 mm |
| Largeur | 210 mm |
| Poids | 19.825 kg |
| Volume | 7.056 l |
| Emballage palette | |
| Taille | 800 pcs |
| Profondeur | 1200 mm |
| Largeur | 800 mm |
| Poids | 654.400 kg |
