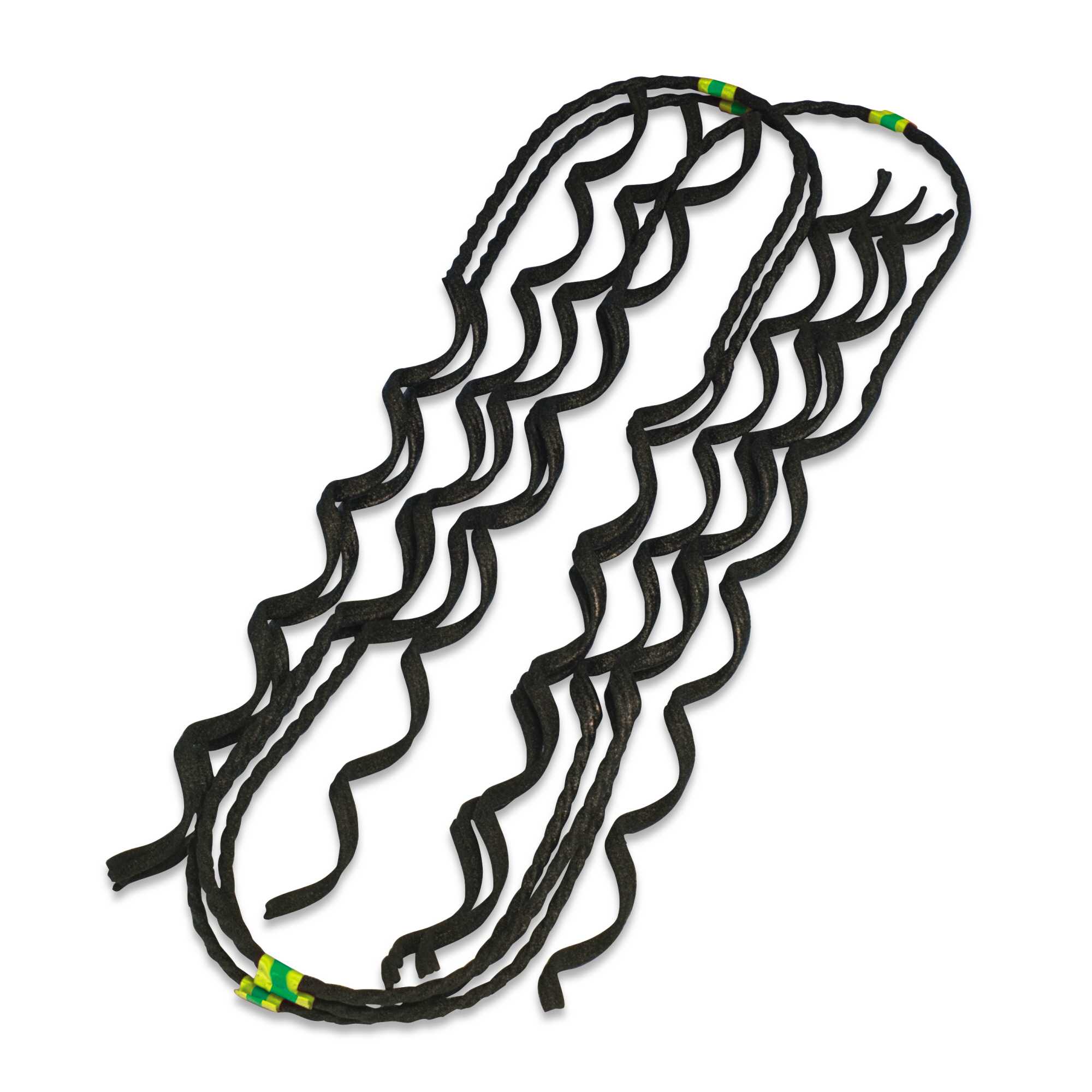

Attache hélicoïdale SO216.24173
Used with covered conductors for tying the conductors to the insulators. Can be used as both top and side ties. Easy to install without tools. The tie is installed on the insulation of the covered conductor. The sets include 6 pcs ties (one set/cross arm). The right size is easy to recognize by the colour code.
| Code | SO216.24173 |
| GTIN | 6438100312602 |
| Nom | Attache hélicoïdale CC 241 mm², neck 73 mm |
| Certificats | |
|---|---|
| Normes | EN 50397-2:2009 |
| Couleurs | |
| Identifiant couleur | Jaune-Vert |
| Dimensions | |
| Poids | 0.92 kg |
| Diamètre de câble | 23.0 - 27.0 mm |
| Col de l´isolateur | 73 mm |
| Câbles isolés | ≥ 241 mm² |
| ETIM | |
| ETIM Class | EC003516 |
| Type d'accessoire | Other |
| Sac en plastique | |
|---|---|
| Taille | 1 pce |
| Poids | 0.945 kg |
| Carton | |
| Taille | 10 pce |
| Profondeur | 790 mm |
| Hauteur | 200 mm |
| Largeur | 290 mm |
| Poids | 9.950 kg |
| Volume | 45.82 l |
| Emballage palette | |
| Taille | 200 pce |
| Profondeur | 1200 mm |
| Hauteur | 910 mm |
| Largeur | 800 mm |
| Poids | 219.000 kg |
| Volume | 873.6 l |
