Kierreside SO115.9573
Used with covered conductors for tying the conductors to the insulators. Can be used as both top and side ties. Easy to install without tools. The tie is installed on the insulation of the covered conductor. The sets include 6 pcs ties (one set/cross arm). The right size is easy to recognize by the colour code.
| Koodi | SO115.9573 |
| GTIN | 6418677404108 |
| Nimi | Kierreside CC 70-95-99 mm², neck 73 mm |
| Sertifikaatit | |
|---|---|
| Standardimerkinnät | EN 50397-2:2009 |

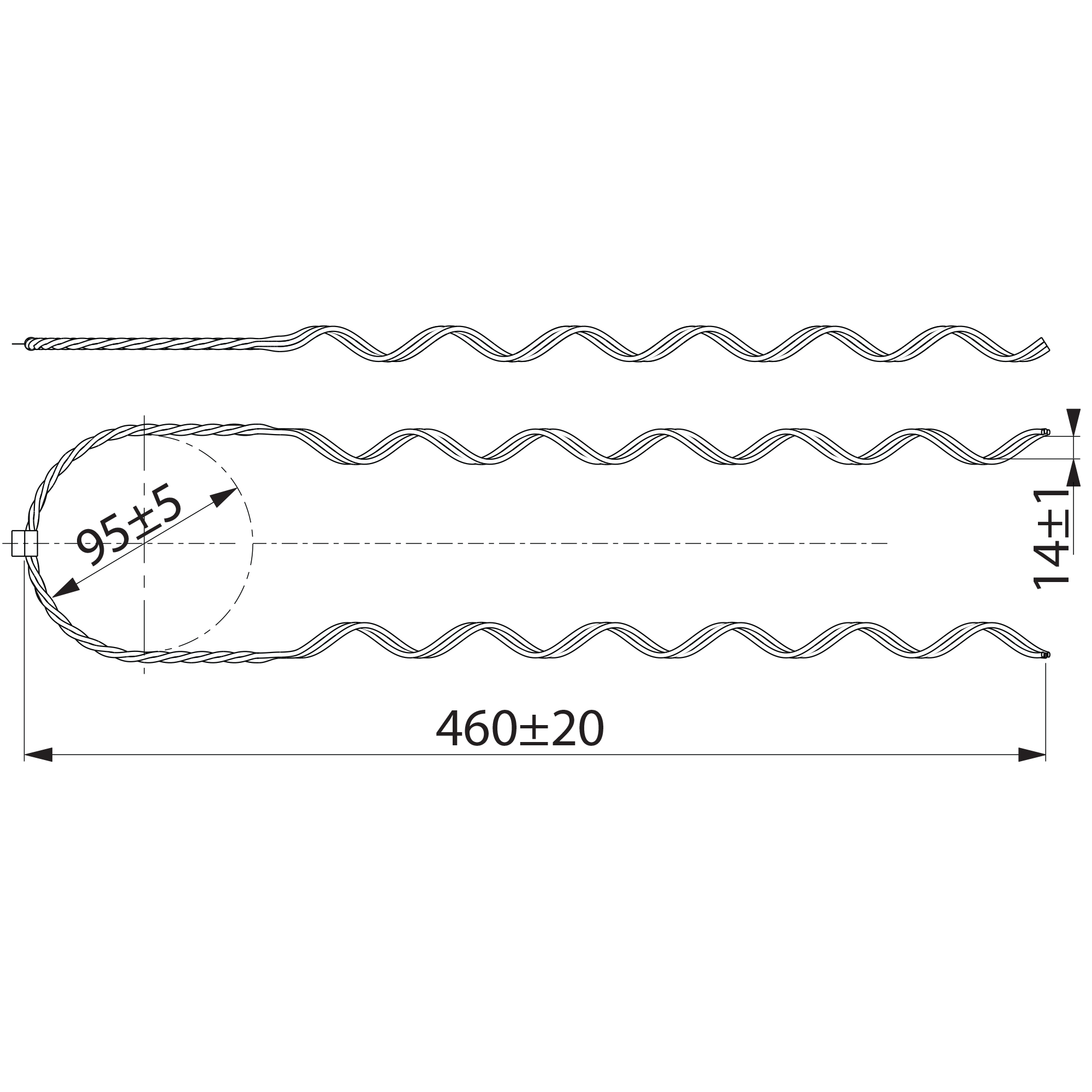

| Mitat | |
| Paino | 0.615 kg |
| Korkeus | 14 mm |
| Leveys | 95 mm |
| Pituus | 460 mm |
| Kaapelin halkaisija | 14.0 - 16.5 mm |
| Eristimen kaula | 73 mm |
| Päällystetyt johtimet | 70 ... 99 mm² |
| ETIM | |
| ETIM Class | EC003516 |
| Tarvikkeen/varaosan tyyppi | Other |
| Muovipussi | |
|---|---|
| Pakkauskoko | 1 pce |
| Paino | 0.640 kg |
| Laatikko | |
| Pakkauskoko | 25 kpl |
| Syvyys | 606 mm |
| Korkeus | 282 mm |
| Leveys | 375 mm |
| Paino | 16.613 kg |
| Tilavuus | 64.0845 l |
| Lavapakkaus | |
| Pakkauskoko | 300 kpl |
| Syvyys | 1200 mm |
| Leveys | 800 mm |
| Paino | 219.356 kg |
