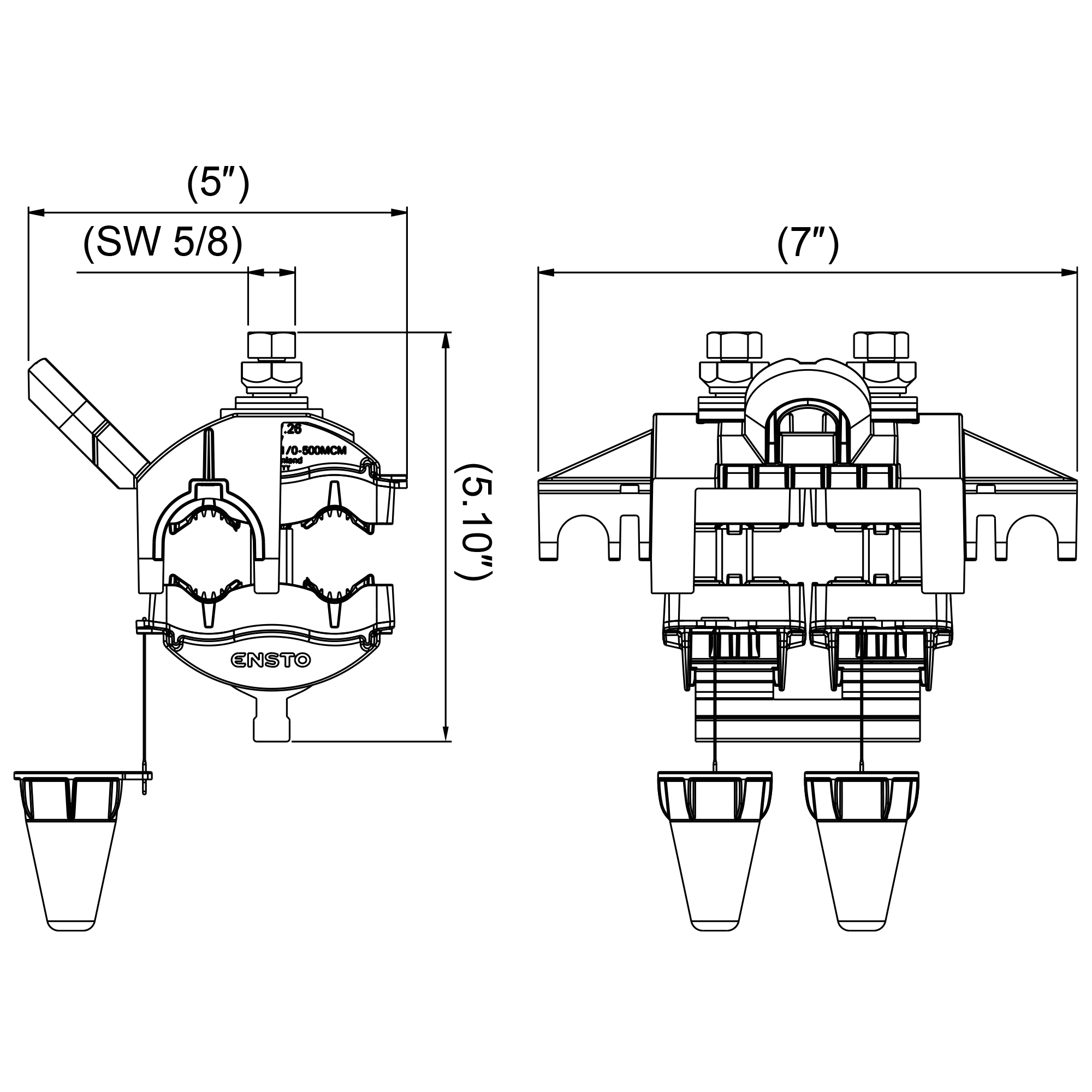

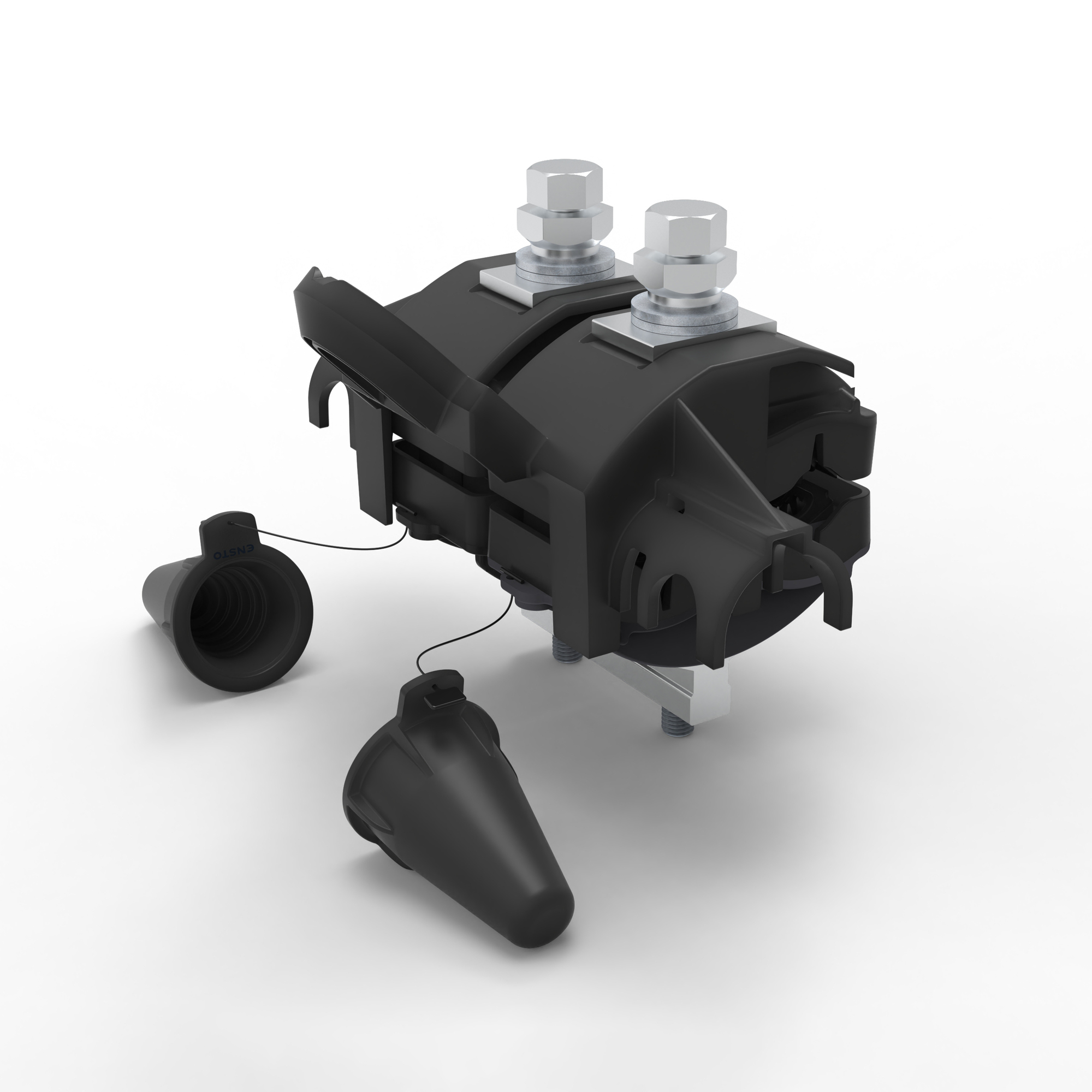

Insulation piercing connector SLW27.262LL
| Code | SLW27.262LL |
| GTIN | 6438389106381 |
| Name | Insulation piercing connector 15 kV rated covered conductor with covering thickness of .165 inches and overall diameter range of .72 - 1.15 inches. |
| Certificates | |
|---|---|
| Standards | EN 50397-2 |
| Dimensions | |
| Conductor size | 1/0 - 500 AWG |
| Conductor size US | total covering thickness of .165 inches |
| Weight | 1.36 lb |
| Mechanical | |
| Tightening torque Nm | 38 Nm |
| Plastic bag | |
|---|---|
| Size | 1 pce |
| Depth | 13.77 in |
| Height | 0.39 in |
| Width | 9.05 in |
| Weight | 1.38 lb |
| Volume | 0.21 gal |
| Carton | |
| Size | 6 pcs |
| Depth | 15.9 in |
| Height | 9.17 in |
| Width | 10.59 in |
| Weight | 9.26 lb |
| Volume | 6.68 gal |
| Pallet package | |
| Size | 144 pcs |
| Depth | 47.24 in |
| Height | 41.33 in |
| Width | 31.49 in |
| Weight | 266.5 lb |
| Volume | 266.28 gal |
15 kV rated covered conductor with covering thickness of .165 inches and overall diameter range of .72 - 1.15 inches.
Code: SLW27.26
GTIN: 6438100354749
15 kV rated covered conductor with covering thickness of .165 inches and overall diameter range of .72 - 1.15 inches.
Code: SLW27.261
GTIN: 6438100380588
15 kV rated covered conductor with covering thickness of .165 inches and overall diameter range of .72 - 1.15 inches.
Code: SLW27.26LL
GTIN: 6438389100969
main #2-300MCM, branch 1/0-500MCM
Code: SLW34.6
GTIN: 6438100356620
