Surge arrester set SDI2024.10
Protection kit for pole mount transformers against atmospheric and switching overvoltages. Surge arrester have been designed and tested according to IEC 60099-4.The kit includes all necessary parts including: Adjustable surge arrester rack, KG-connectors, wildlife covers and the surge arresters.
| Code | SDI2024.10 |
| GTIN | 6438100300586 |
| Name | Surge arrester set For pole mount transformers, Uc = 20 kV, In = 10 kA, Class 1 |

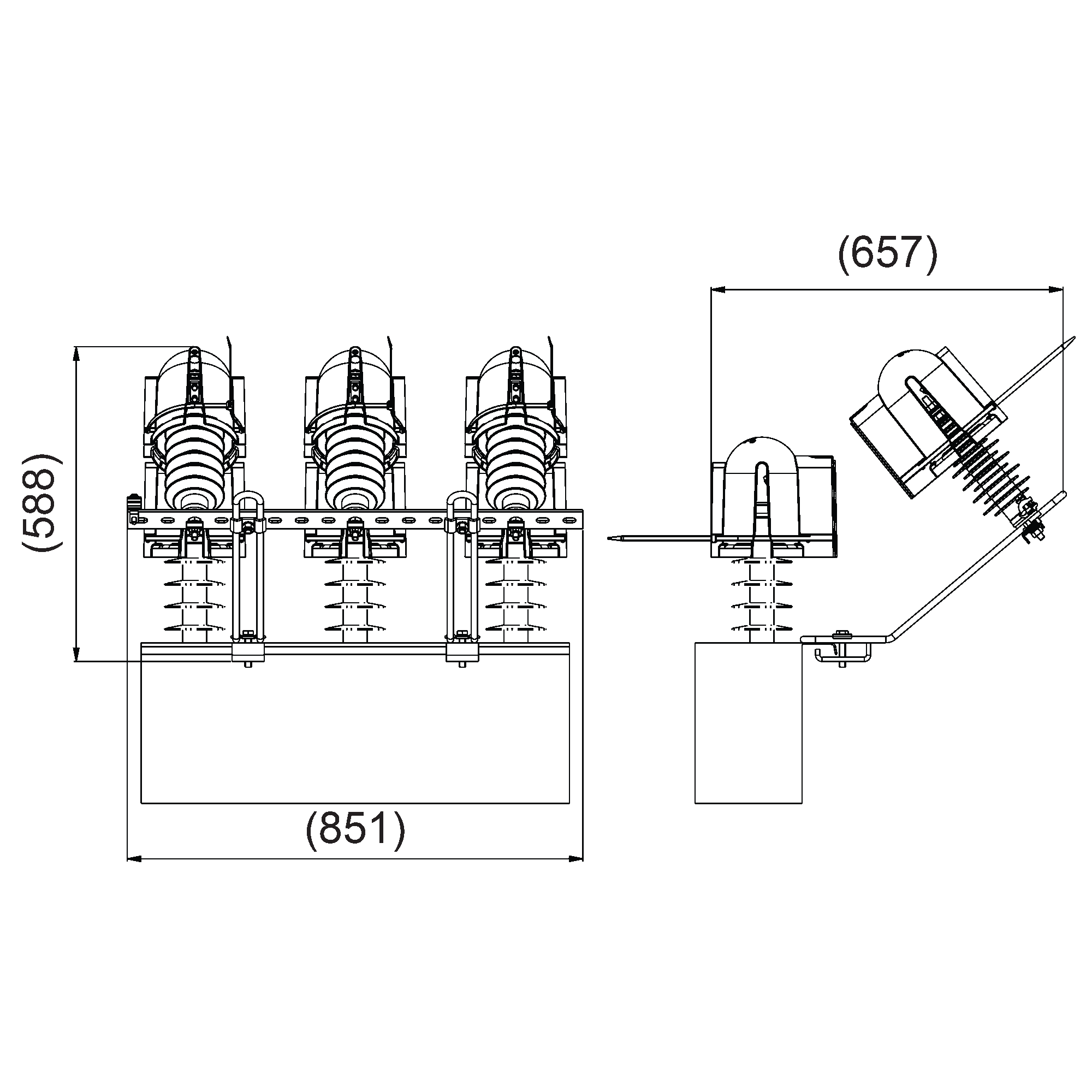

| Dimensions | |
|---|---|
| Weight | 44.75 lb |
| Electrical values | |
| Highest system voltage | 20 kV |
| Nominal current A | 10 A |
| ETIM | |
| ETIM Class | EC002676 |
| Continuous voltage AC | 20 kV |
| Rated voltage AC | 24 kV |
| Creepage path | 31.49 in |
| Height | 13.58 in |
| Application | Exterior area |
| Carton | |
|---|---|
| Size | 1 pce |
| Depth | 33.77 in |
| Height | 9.68 in |
| Width | 18.03 in |
| Weight | 46.57 lb |
| Volume | 25.53 gal |
| Pallet package | |
| Size | 4 pcs |
| Depth | 47.24 in |
| Height | 44.64 in |
| Width | 31.49 in |
| Weight | 230.38 lb |
| Volume | 287.58 gal |
