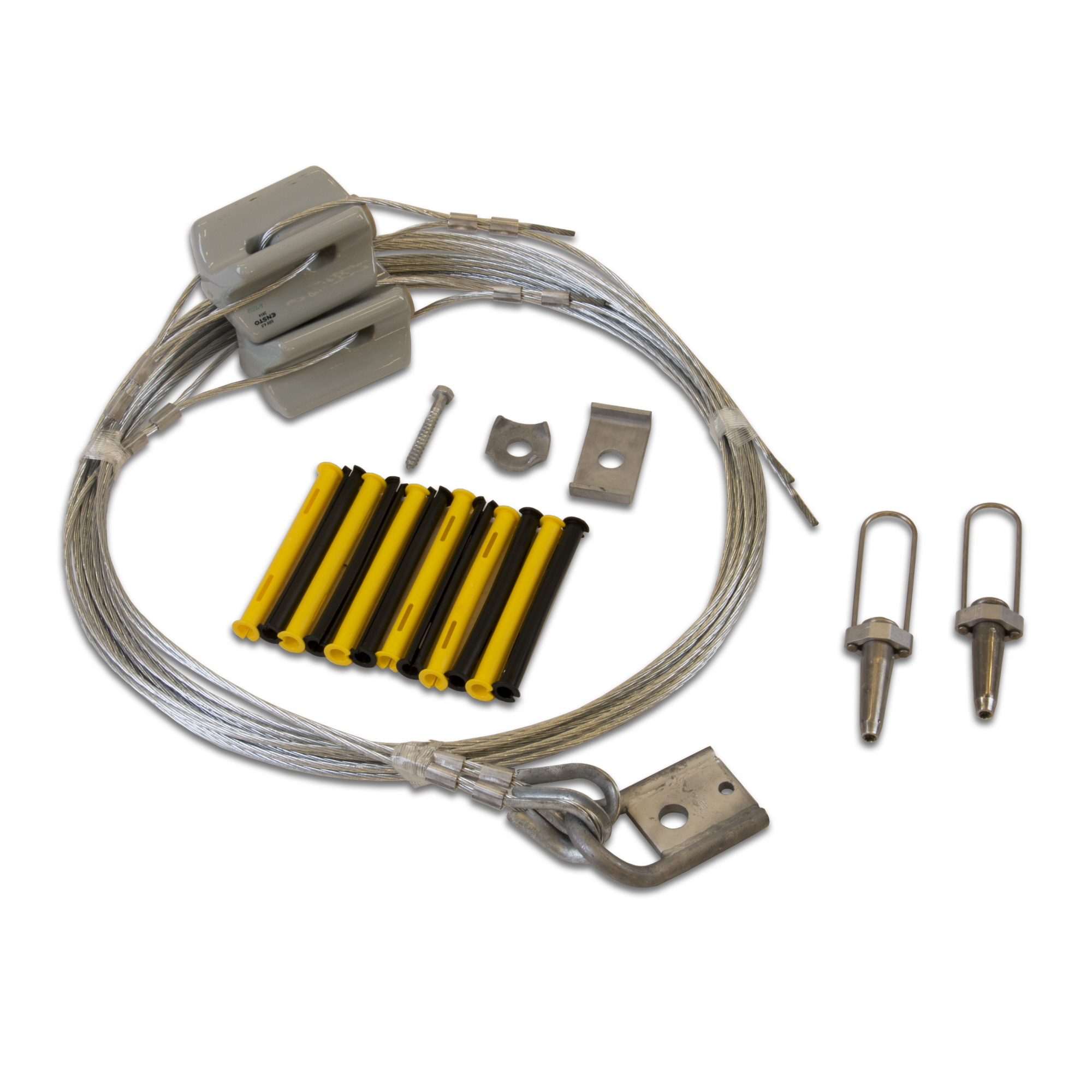

Double stay wire set SHS25K.2X165RA
An insulated set for medium voltage lines. The wire gauge is 2x25 mm² steel wire and the permitted load is up to 17.5 kN. All steel parts are hot-dip galvanized and plastic marking tubes are of weather and UV-resistant material.
| Code | SHS25K.2X165RA |
| GTIN | 6438100306816 |
| Name | Double stay wire set Upper end iron + automatic clamp, L=16.5 m |
| Dimensions | |
|---|---|
| Weight | 31.3 lb |
| Length | 649.6 in |
| Size | 2x25 |
| Stay wire | 2x25 mm² |
| Features | |
| Basic kit | 1 |
| Upper end fitting | Upper end iron |
| ETIM | |
| ETIM Class | EC003513 |
| Type of accessory/spare part | Stay wire set |
| Material | Other |
| Surface protection | Other |
| UV resistant | Yes |
| Insulator | Yes |
| Carton | |
|---|---|
| Size | 1 pce |
| Weight | 31.41 lb |
| Pallet package | |
| Size | 20 pcs |
| Depth | 47.24 in |
| Height | 22.44 in |
| Width | 31.49 in |
| Weight | 672.4 lb |
| Volume | 144.55 gal |
