Pole attachment accessories.
| Code | SH99 |
| GTIN | 6418677410697 |
| Name | Extension rock eye bolt Diameters 20/20 mm |
-
What are you looking for?
-

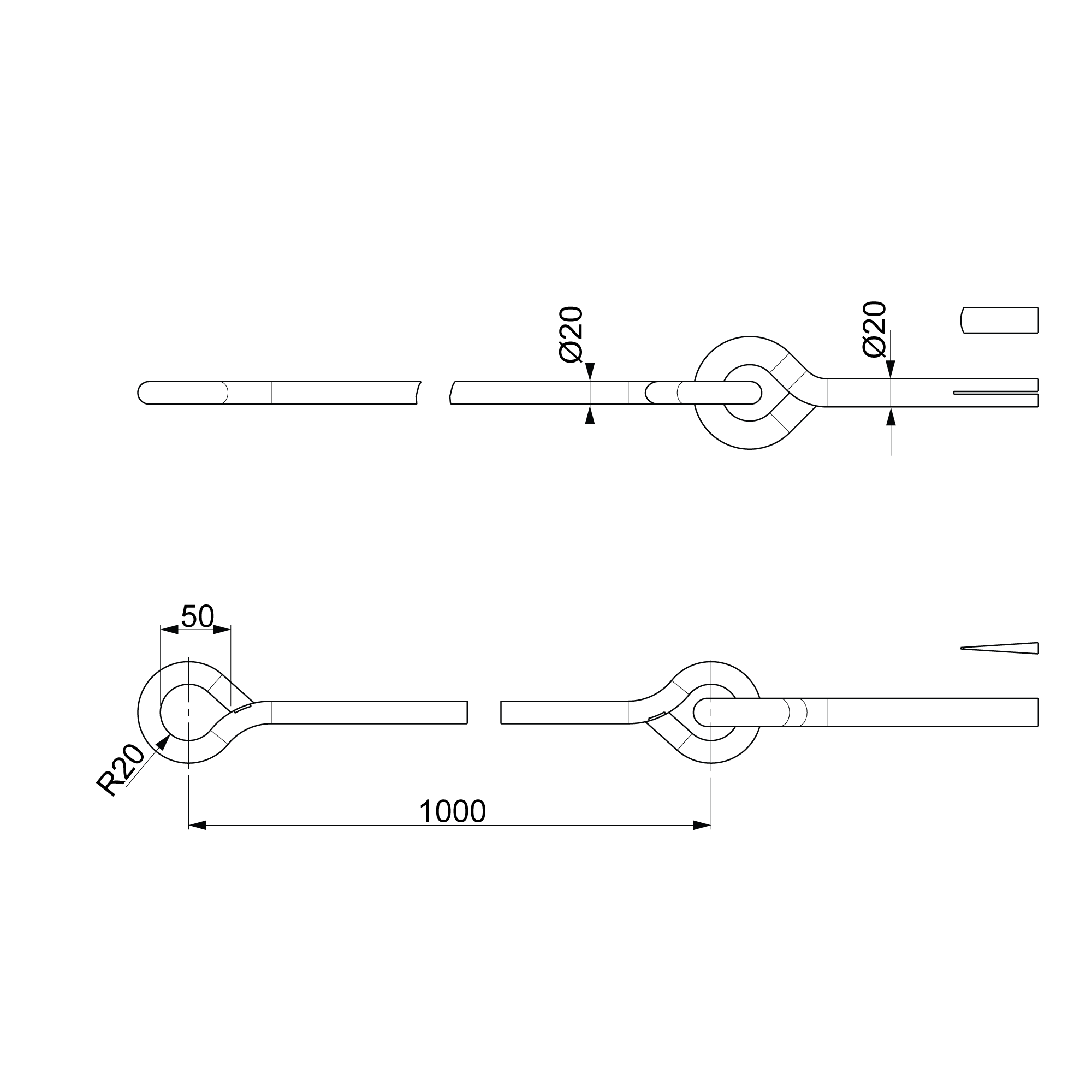

Extension rock eye bolt SH99
Extension rock eye bolt SH99
Technical information
Technical specifications
Technical specifications
| Certificates | |
|---|---|
| Standards | KJS20 |
| Dimensions | |
| Weight | 9.56 lb |
| Width | 0.78 in |
| Length | 39.37 in |
| Mechanical | |
| Load in use max | 35 kN |
| ETIM | |
| ETIM Class | EC003513 |
| Type of accessory/spare part | Rock eye bolt |
| Material | Steel |
| Surface protection | Hot-dip galvanized |
| UV resistant | Yes |
| Insulator | No |
Packaging
Packaging
| Carton | |
|---|---|
| Size | 1 pce |
| Depth | 39.37 in |
| Height | 3.14 in |
| Width | 3.14 in |
| Weight | 10.22 lb |
| Volume | 1.69 gal |
| Pallet package | |
| Size | 150 pcs |
| Depth | 47.24 in |
| Height | 45.27 in |
| Width | 31.49 in |
| Weight | 1578.5 lb |
| Volume | 291.64 gal |
