Rock eye bolt SH78.1
Used for the anchoring of the stay wire to a rock. A hole is drilled in the rock. The eyebolts are made of hot-dip galvanized steel.
| Code | SH78.1 |
| GTIN | 6418677407437 |

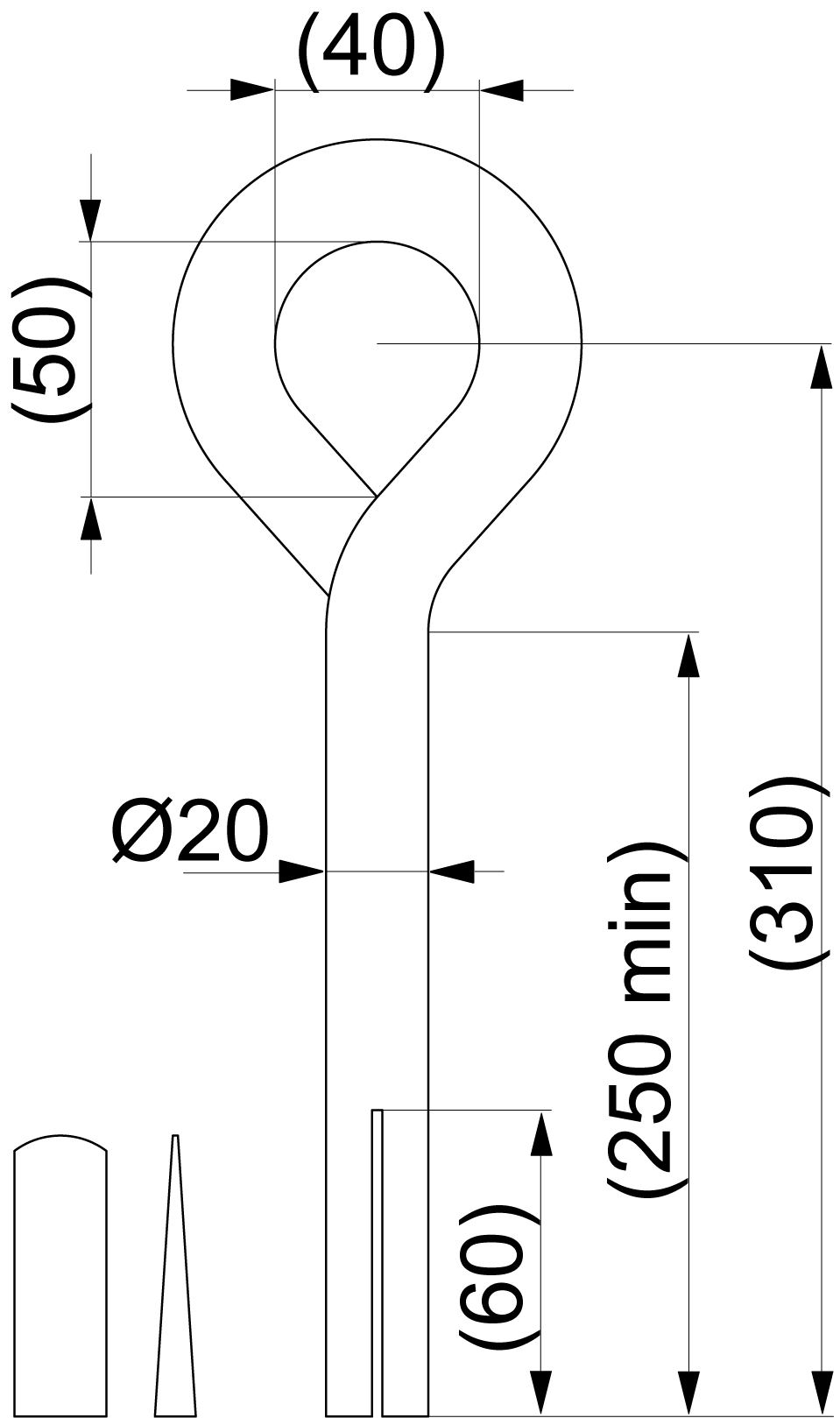

| Name | Rock eye bolt Length 310 mm, diameter 20 mm |
| Dimensions | |
|---|---|
| Weight | 2.64 lb |
| Mechanical | |
| Load in use max | 35 kN |
| ETIM | |
| ETIM Class | EC003513 |
| Type of accessory/spare part | Rock eye bolt |
| Material | Steel |
| Surface protection | Hot-dip galvanized |
| UV resistant | Yes |
| Insulator | No |
| Carton | |
|---|---|
| Size | 20 pce |
| Depth | 14.76 in |
| Height | 6.1 in |
| Width | 9.84 in |
| Weight | 54.01 lb |
| Volume | 3.83 gal |
| Pallet package | |
| Size | 720 pce |
| Depth | 47.24 in |
| Height | 30.31 in |
| Width | 31.49 in |
| Weight | 1988.56 lb |
| Volume | 195.27 gal |
