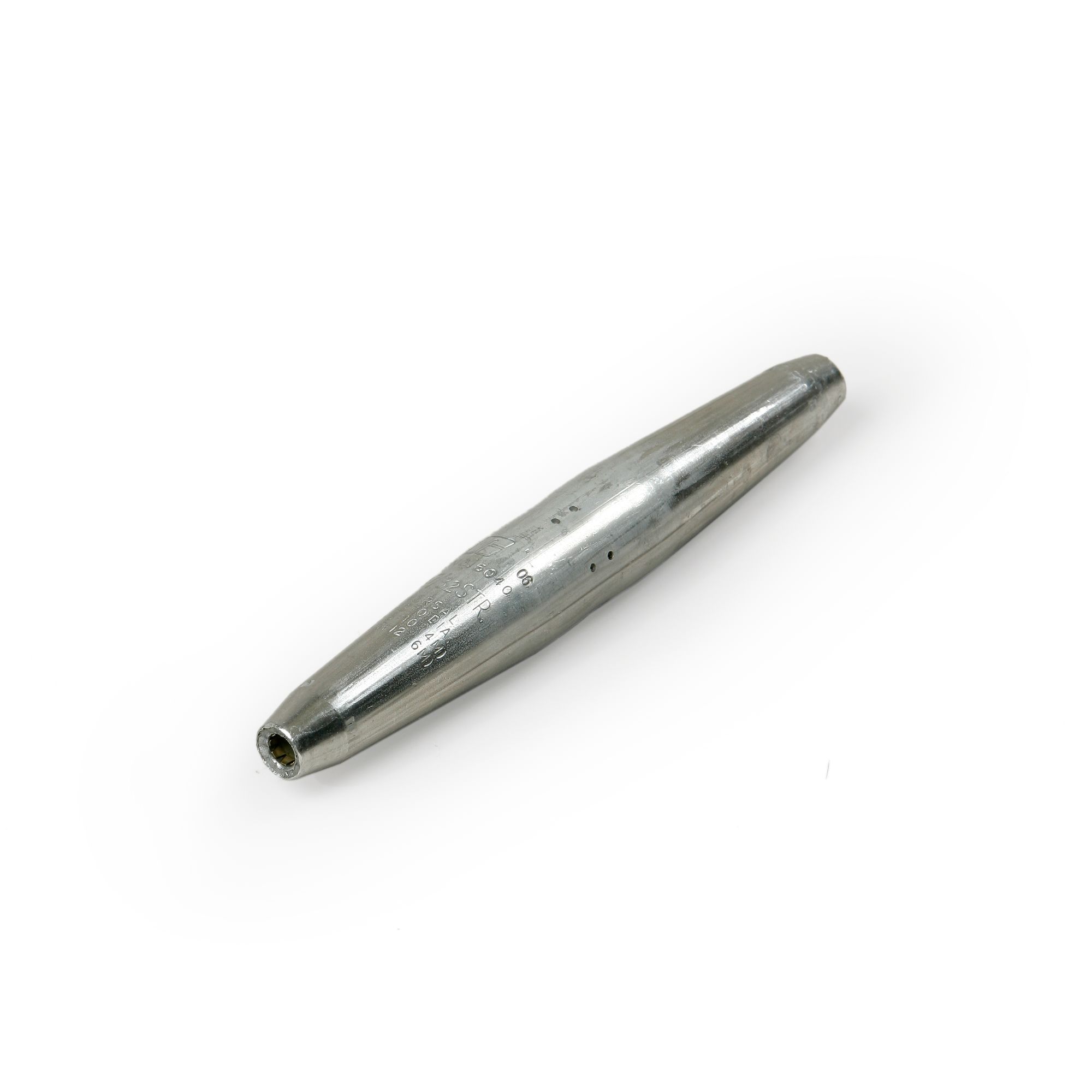

Joint automatic CIL9.25
The automatic joint is reliable and quick to make. The wedges ensure a safe joint.
| Code | CIL9.25 |
| GTIN | 6418677418549 |
| Name | Joint automatic Fe 25 mm², dia 5.5 - 6.9 mm |
| Dimensions | |
|---|---|
| Weight | 0.59 lb |
| Width | 0.98 in |
| Conductor diameter | 0.21 ... 0.27 in |
| Features | |
| For conductor size | Fe 25 mm² |
| ETIM | |
| ETIM Class | EC001169 |
| Number of conductors | 1 |
| Nominal cross section conductor | ≥ 25 mm² |
| Halogen free | Yes |
| Carton | |
|---|---|
| Size | 25 pcs |
| Depth | 14.76 in |
| Height | 4.52 in |
| Width | 9.84 in |
| Weight | 15.47 lb |
| Volume | 2.84 gal |
| Pallet package | |
| Size | 1575 pcs |
| Depth | 47.24 in |
| Height | 41.33 in |
| Width | 31.49 in |
| Weight | 1018.9 lb |
| Volume | 266.28 gal |
