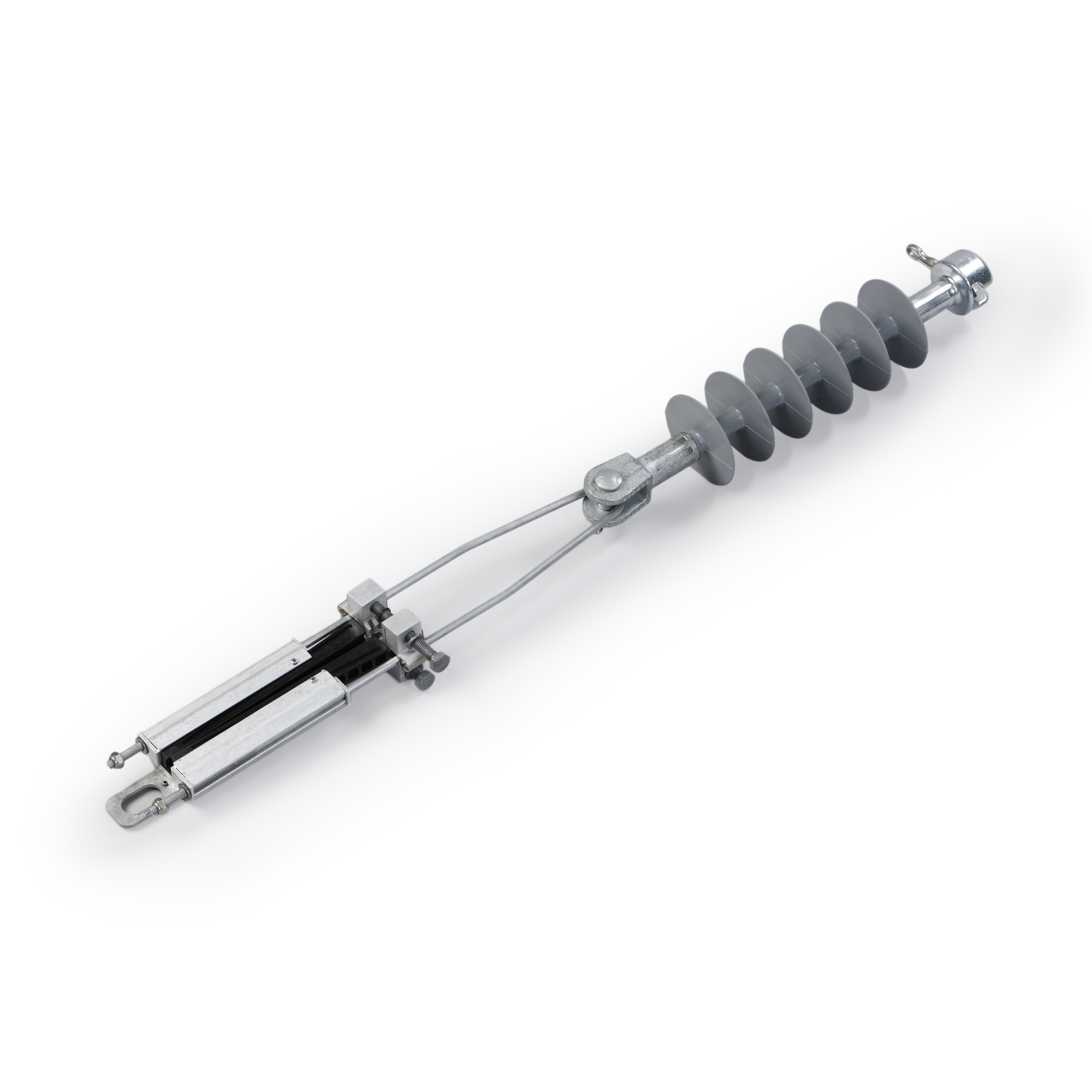

Tension insulator set SDP902811.2352
Tension string of composite insulator SDI90.2811 and tension clamp SO255.2 for covered conductor lines. Composite insulator is equipped with socket end-fitting. Tension clamp is having place for hoist.
| Code | SDP902811.2352 |
| GTIN | 6418677456107 |
| Name | Tension insulator set SDI90.2811 + SO255.2 |

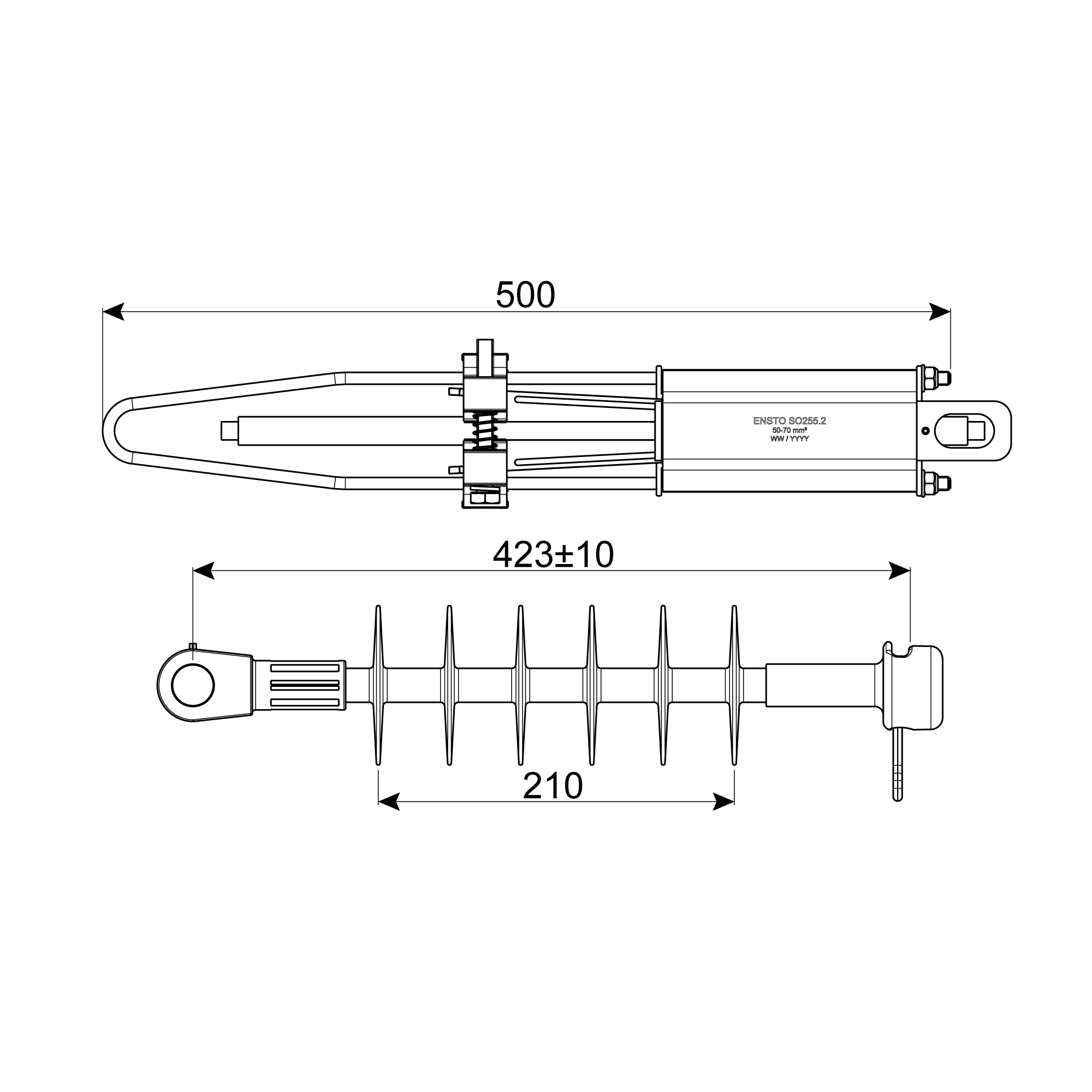

| Dimensions | |
|---|---|
| Weight | 6.5 lb |
| Height | 4.33 in |
| Width | 4.33 in |
| Length | 20.07 in |
| Creepage distance | 613 mm |
| Electrical values | |
| Highest system voltage | 24 kV |
| Wet power frequency withstand voltage | ≥ 87 kV |
| Features | |
| Standards | IEC 61109 |
| ETIM | |
| ETIM Class | EC003516 |
| Type of accessory/spare part | Other |
| Carton | |
|---|---|
| Size | 3 pcs |
| Depth | 24.92 in |
| Height | 7.71 in |
| Width | 15.07 in |
| Weight | 20.65 lb |
| Volume | 12.55 gal |
| Pallet package | |
| Size | 36 pcs |
| Depth | 47.24 in |
| Height | 37.4 in |
| Width | 31.49 in |
| Weight | 291.92 lb |
| Volume | 240.92 gal |
