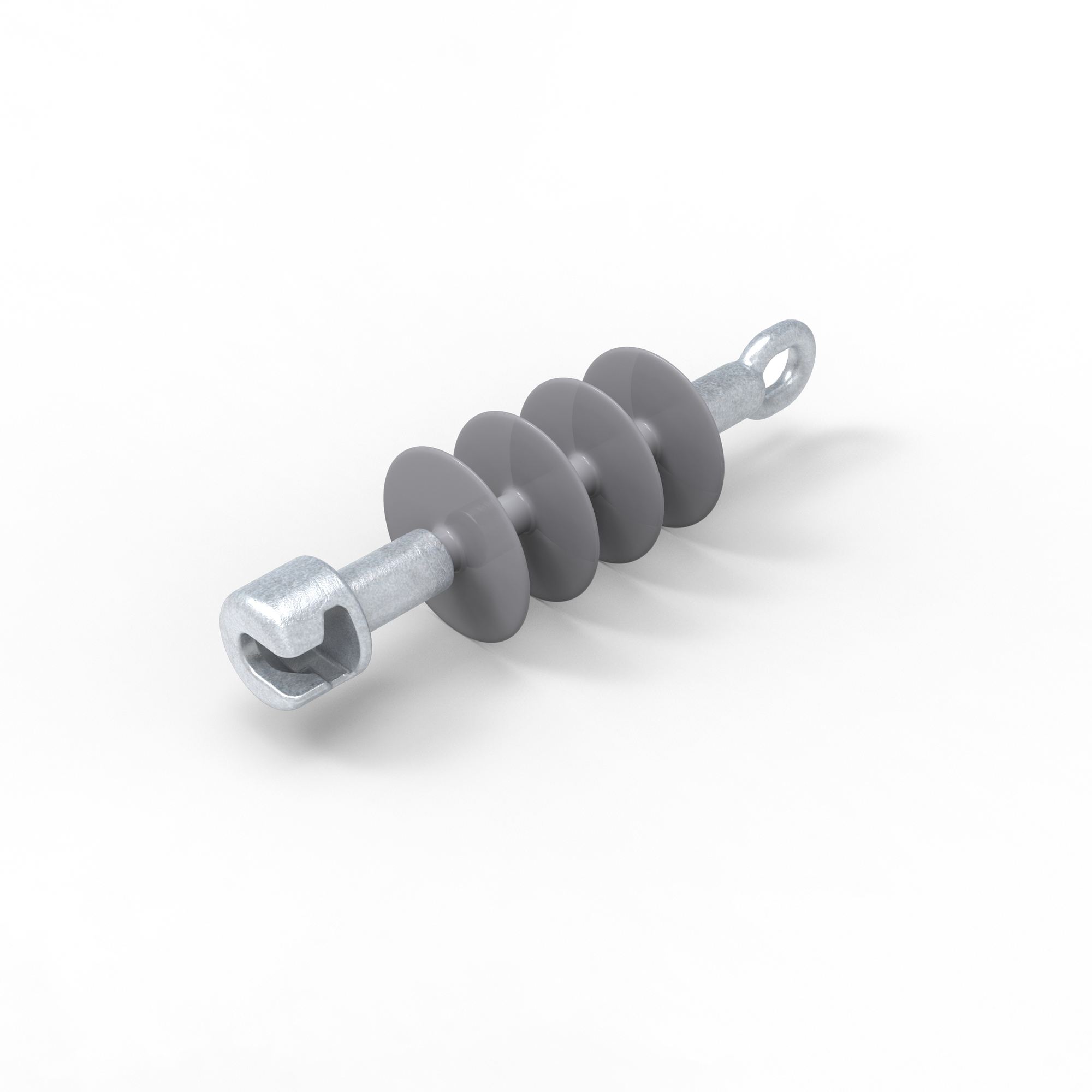

Composite tension insulator SDI90.152
Insulator for terminal and intermediate poles of 24 kV lines.
| Code | SDI90.152 |
| GTIN | 6418677422683 |
| Name | Composite tension insulator 24 kV, 70 kN, eye-socket |
| Standards | |
|---|---|
| Standards | IEC 61109 |

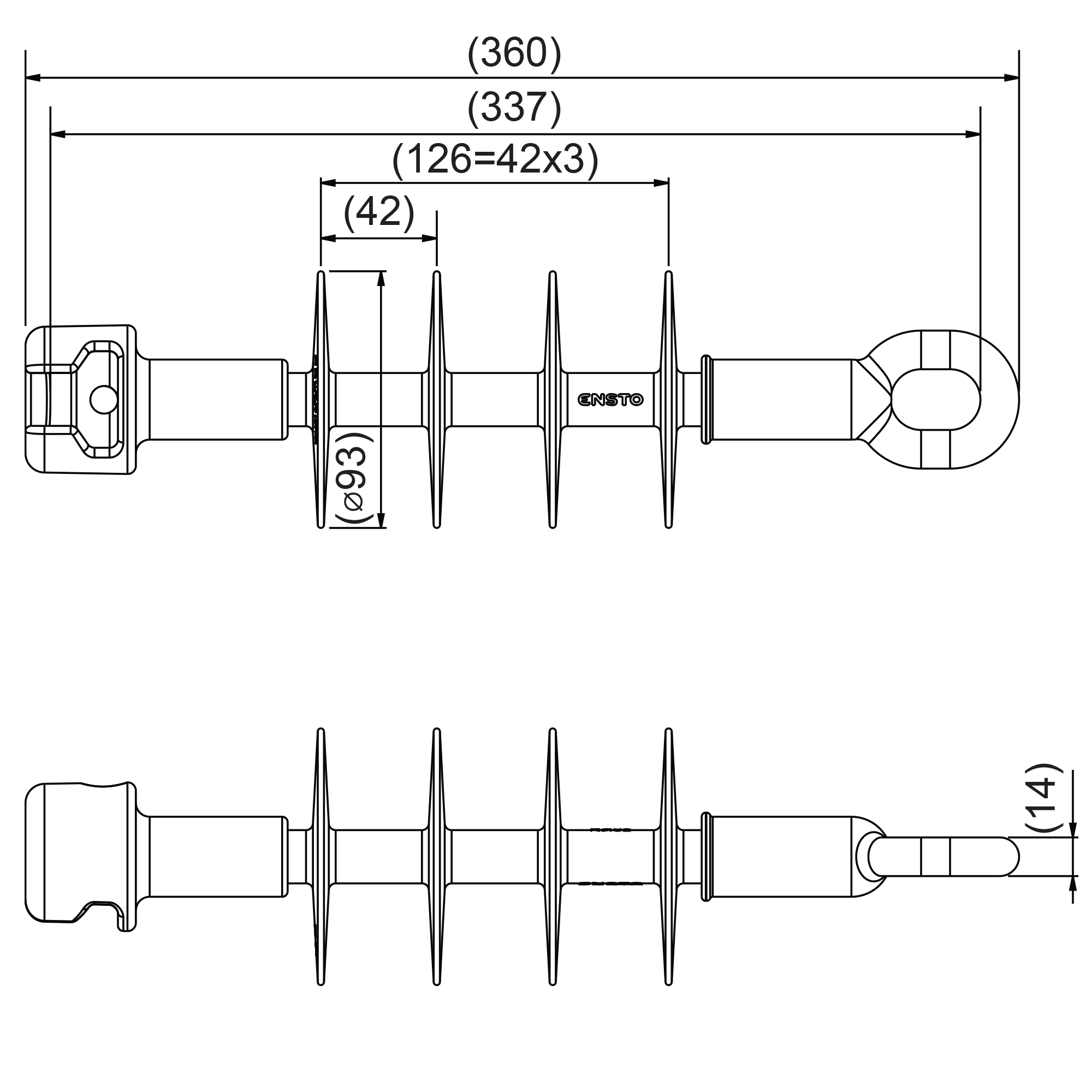

| Dimensions | |
| Weight | 2.64 lb |
| Length | 14.17 in |
| Mechanical | |
| SMFL | 70 kN |
| Features | |
| End fittings | socket / eye |
| ETIM | |
| ETIM Class | EC003514 |
| Model | Tension insulator |
| Rated voltage | 0.024 kV |
| Material | Composite |
| Length | 14.17 in |
| Diameter | 3.66 in |
| Weight | 2.64 lb |
| Creepage path | 15.39 in |
| Min. dry lightning impulse withstand voltage | 126 kV |
| Wet power frequency withstand voltage | 57 kV |
| Breaking load | 70 kN |
| Carton | |
|---|---|
| Size | 3 pcs |
| Depth | 20.66 in |
| Height | 4.33 in |
| Width | 13.38 in |
| Weight | 9.03 lb |
| Volume | 5.18 gal |
| Pallet package | |
| Size | 114 pcs |
| Depth | 47.24 in |
| Height | 40.15 in |
| Width | 31.49 in |
| Weight | 387.57 lb |
| Volume | 258.67 gal |
