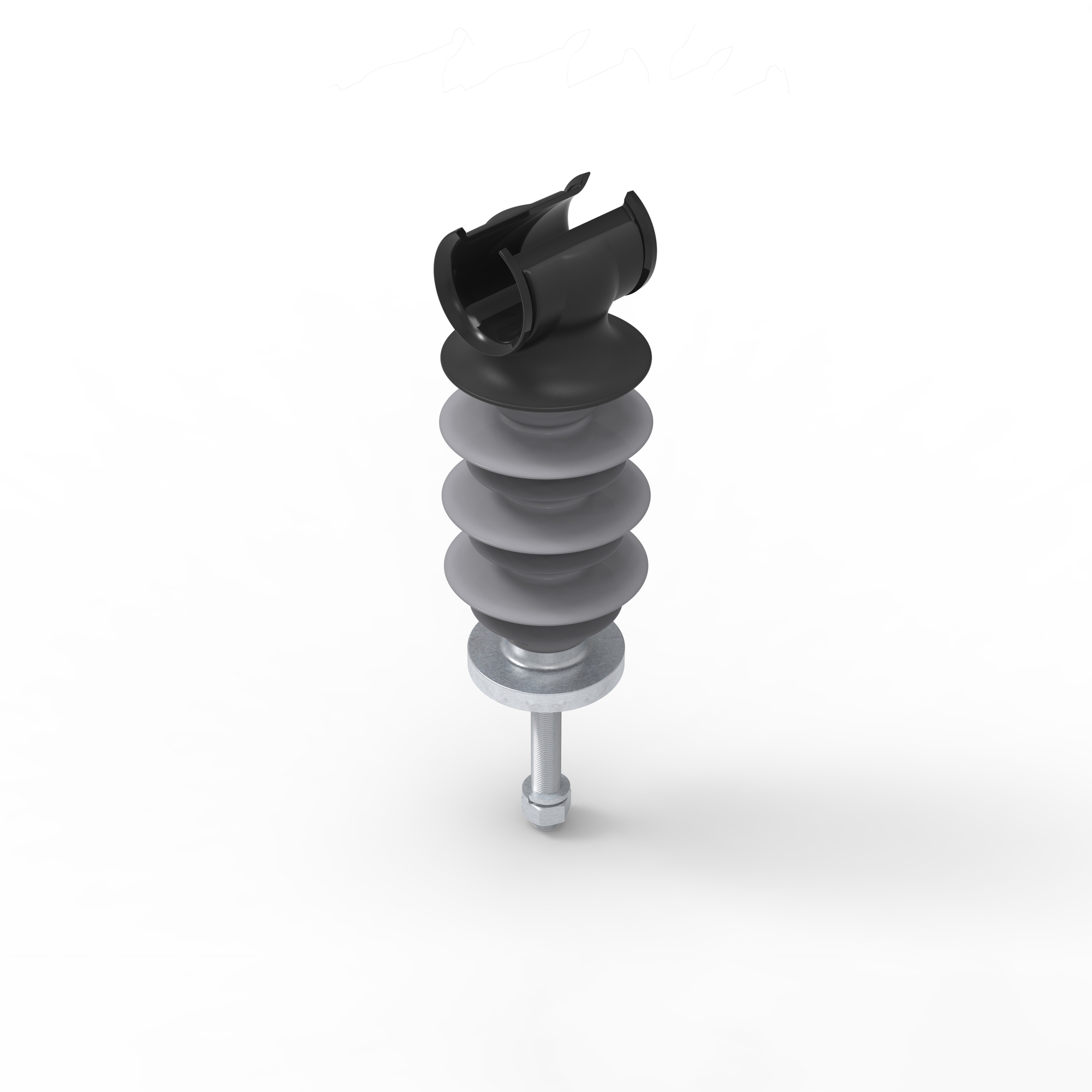

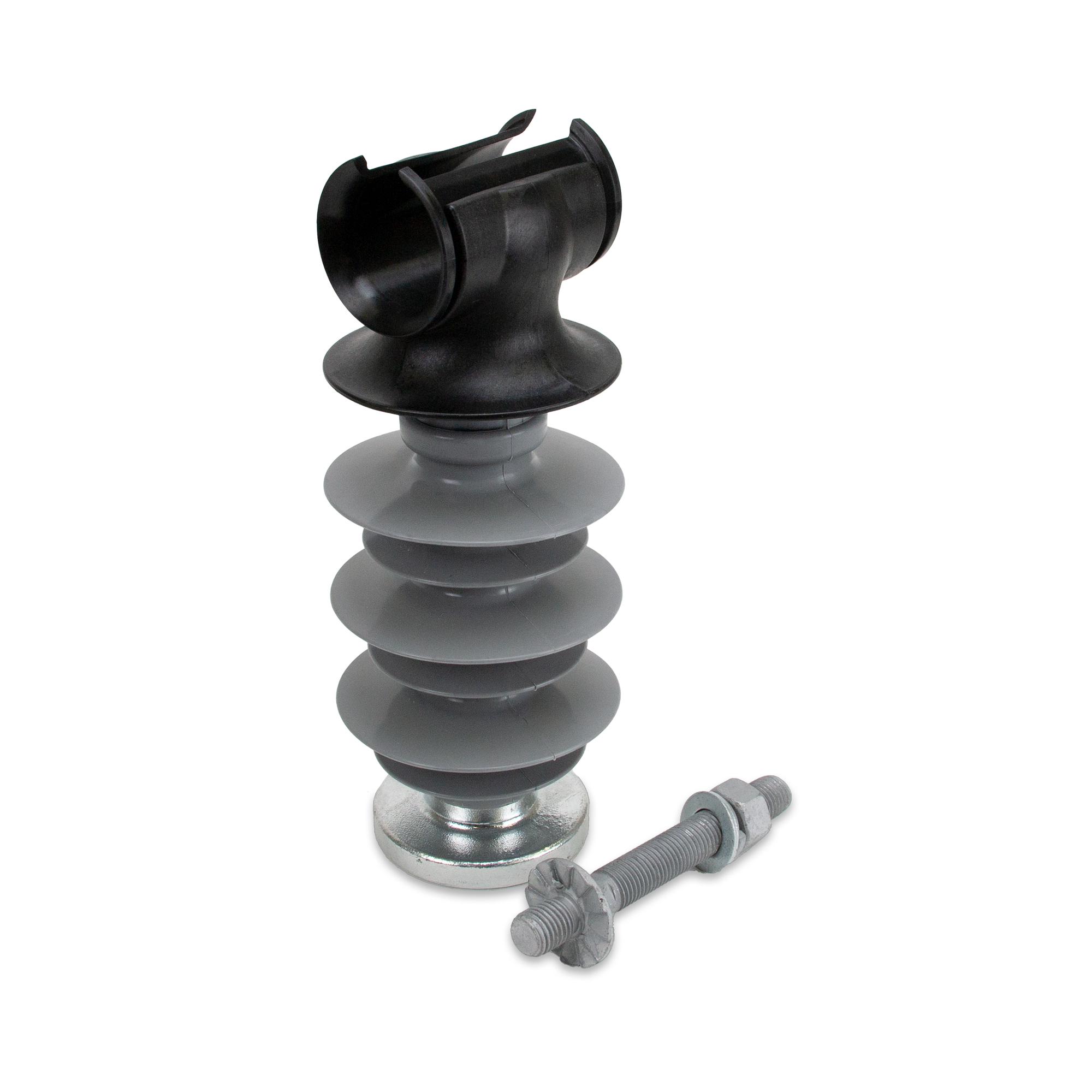

Composite line post Insulator with pin M20x140.
| Code | SDI88.37M20 |
| GTIN | 6438389105667 |
| Name | Composite line post Insulator M20x140 |
-
What are you looking for?
-
Composite line post Insulator SDI88.37M20
Composite line post Insulator SDI88.37M20
Technical information
Technical specifications
Technical specifications

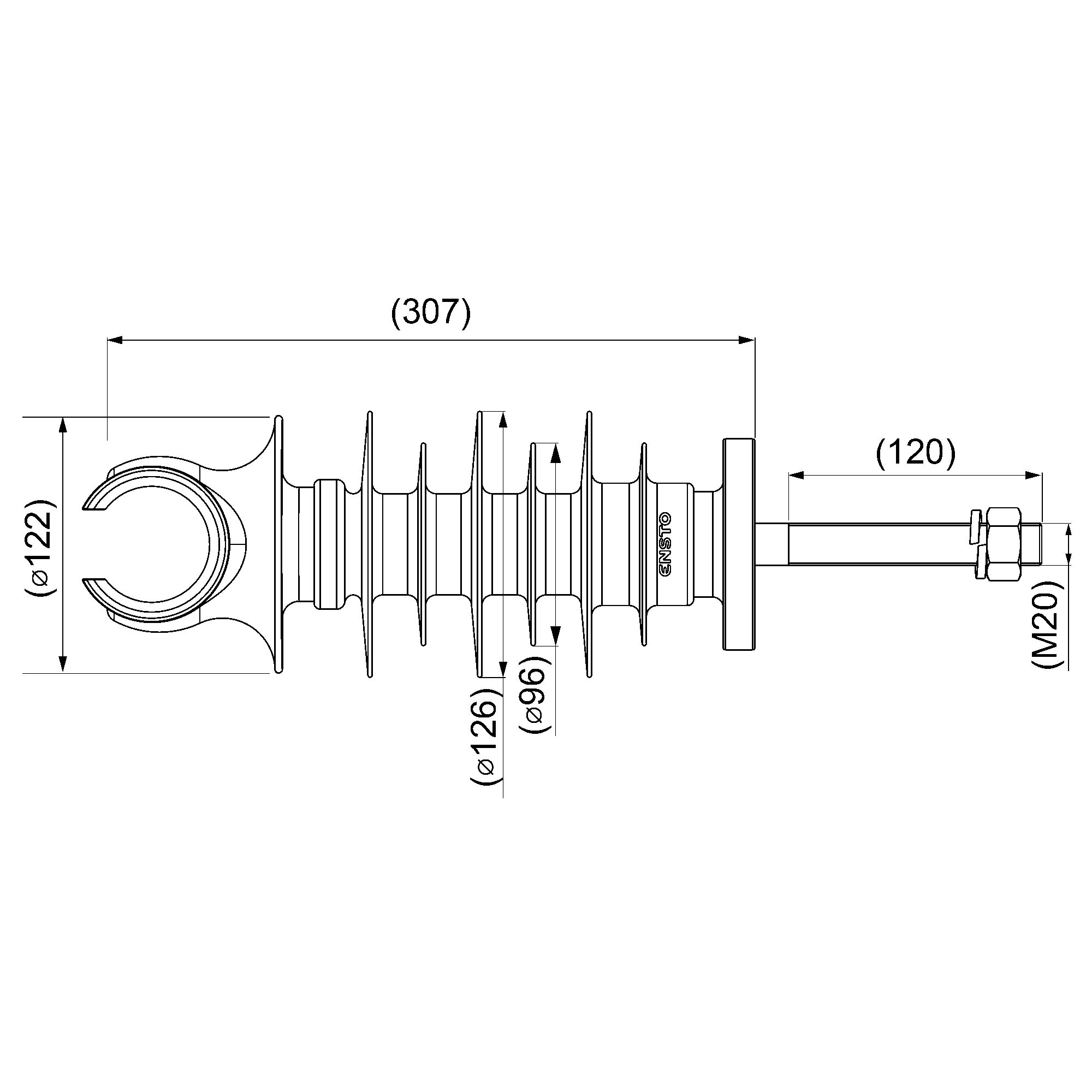

| Dimensions | |
|---|---|
| Weight | 6.37 lb |
| Creepage distance | 480 mm |
| Electrical values | |
| Highest system voltage | 24 kV |
| Dry lightning impulse withstand voltage | ≥ 95 kV |
| Wet power frequency withstand voltage | ≥ 38 kV |
| Mechanical | |
| Breaking load min | 15 kN |
| Features | |
| Bolt | M20x140 |
| ETIM | |
| ETIM Class | EC003514 |
| Model | Support insulator |
| Rated voltage | 0.024 kV |
| Material | Composite |
| Length | 16.53 in |
| Diameter | 4.96 in |
| Weight | 0 lb |
| Creepage path | 18.89 in |
| Min. dry lightning impulse withstand voltage | 95 kV |
| Wet power frequency withstand voltage | 38 kV |
| Breaking load | 15 kN |
Packaging
Packaging
| Carton | |
|---|---|
| Size | 3 pcs |
| Depth | 19.29 in |
| Height | 6.1 in |
| Width | 15.35 in |
| Weight | 20.21 lb |
| Volume | 7.82 gal |
| Pallet package | |
| Size | 108 pcs |
| Depth | 47.24 in |
| Height | 42.91 in |
| Width | 39.37 in |
| Weight | 782.9 lb |
| Volume | 345.53 gal |
