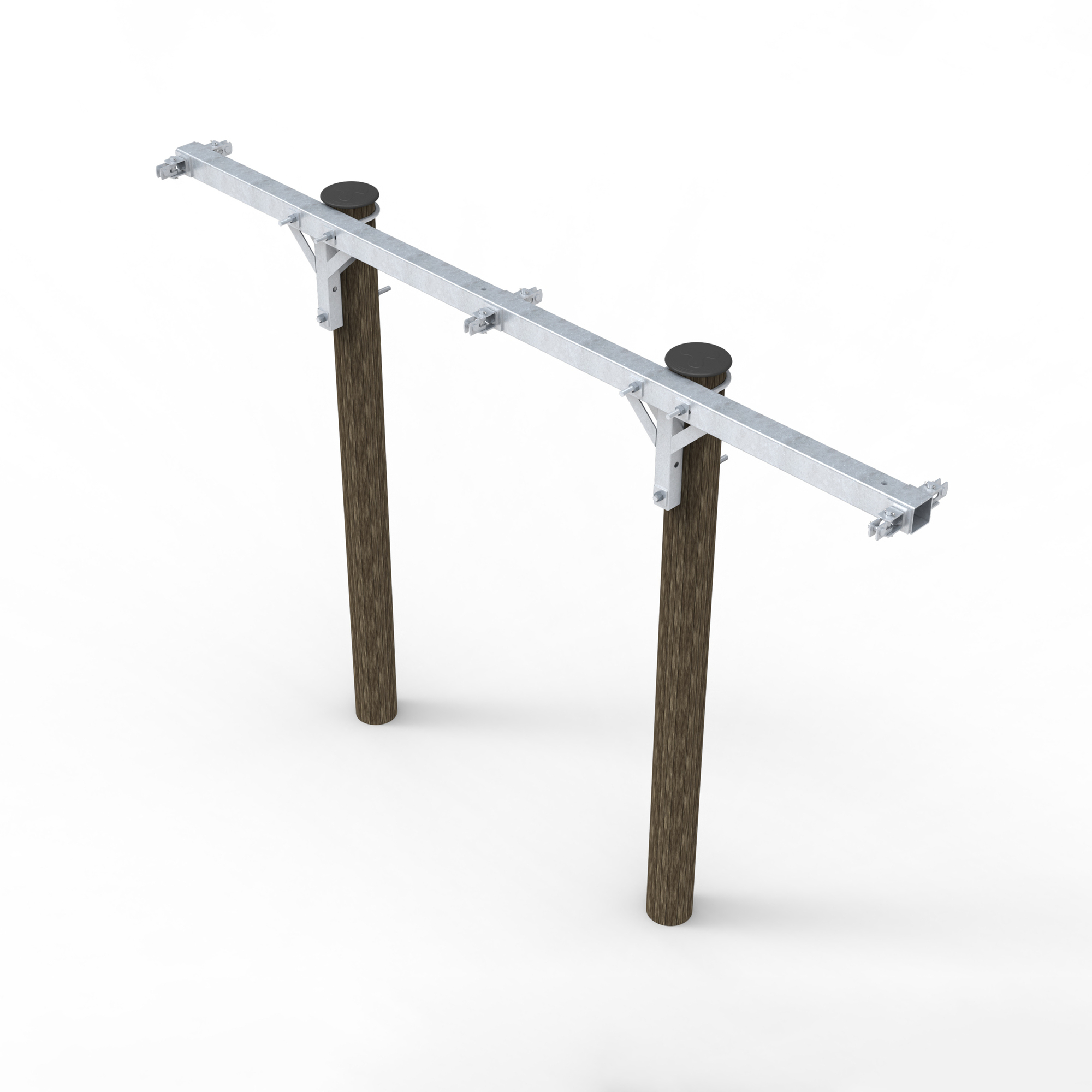

Angle tension crossarm SH190.12
For intermediate tensioning of single, three phase covered conductor lines. Allowed loads for the crossarm at conductor fixing points are: Fx = 4.0 angle load, Fz = 16.0 kN horizontally along conductor, Fy = 5.0 kN vertically downwards.
| Code | SH190.12 |
| GTIN | 6438100316662 |

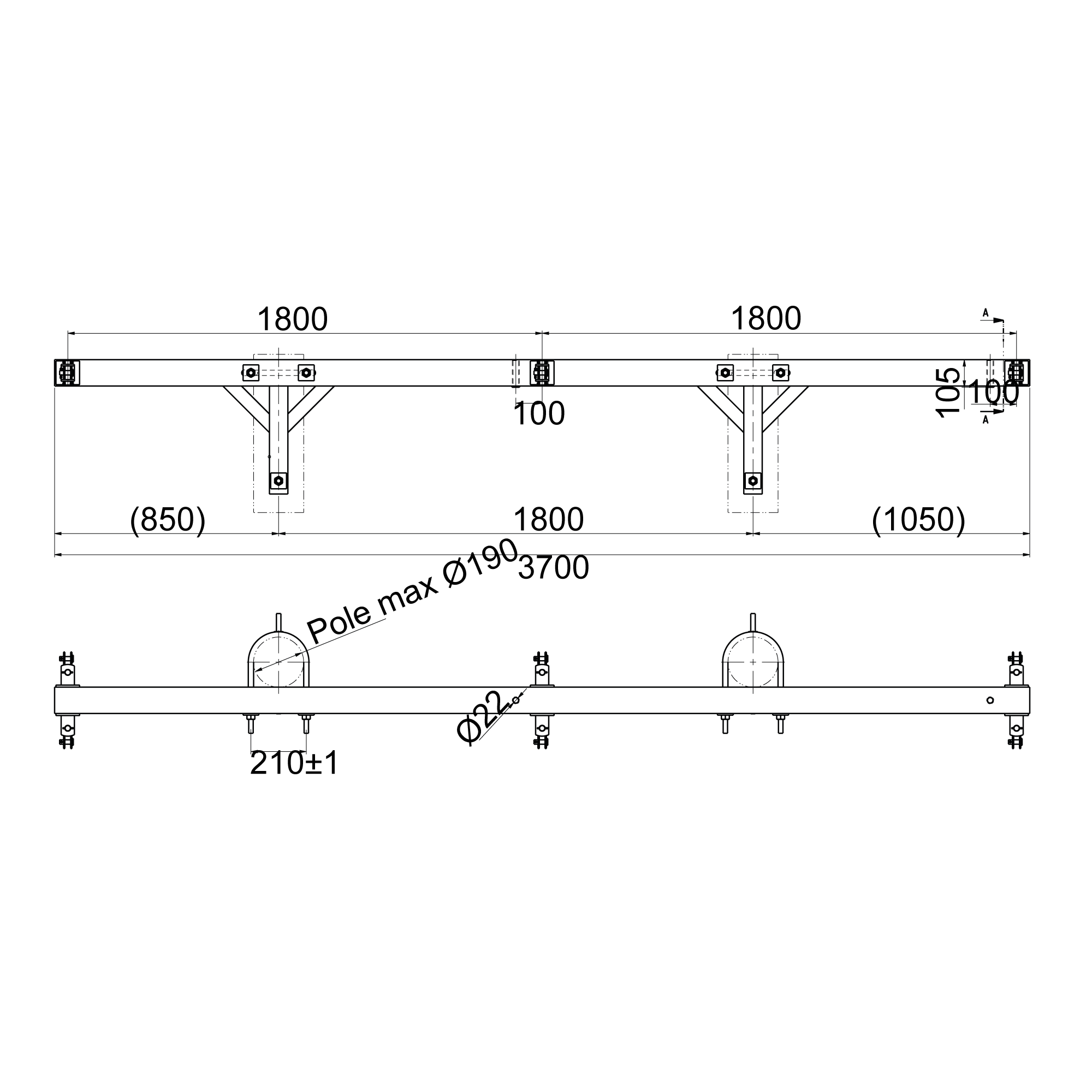

| Name | Angle tension crossarm 45 kV, A= 1800, single line/2-poles |
| Dimensions | |
|---|---|
| Weight | 167.11 lb |
| Mechanical | |
| Allowed loads at conductor fixing point | Fx = 4.0 kN, Fz = 16.0 kN, Fy = 5.0 kN |
| ETIM | |
| ETIM Class | EC003515 |
| Type | Angled cross arm |
| Suitable for | Two pole |
| Profile shape | RHS (Rectangular Hollow Section) |
| Material | Steel |
| Surface protection | Galvanized |
| Conductor surface | Covered |
| Max. rated voltage | 45 kV |
| Carton | |
|---|---|
| Size | 1 pce |
| Depth | 15.31 in |
| Height | 7.28 in |
| Width | 10.39 in |
| Weight | 167.93 lb |
| Volume | 5.01 gal |
| Pallet package | |
| Size | 20 pcs |
| Weight | 3402.79 lb |
