Insulation piercing connector SLW27.26LL

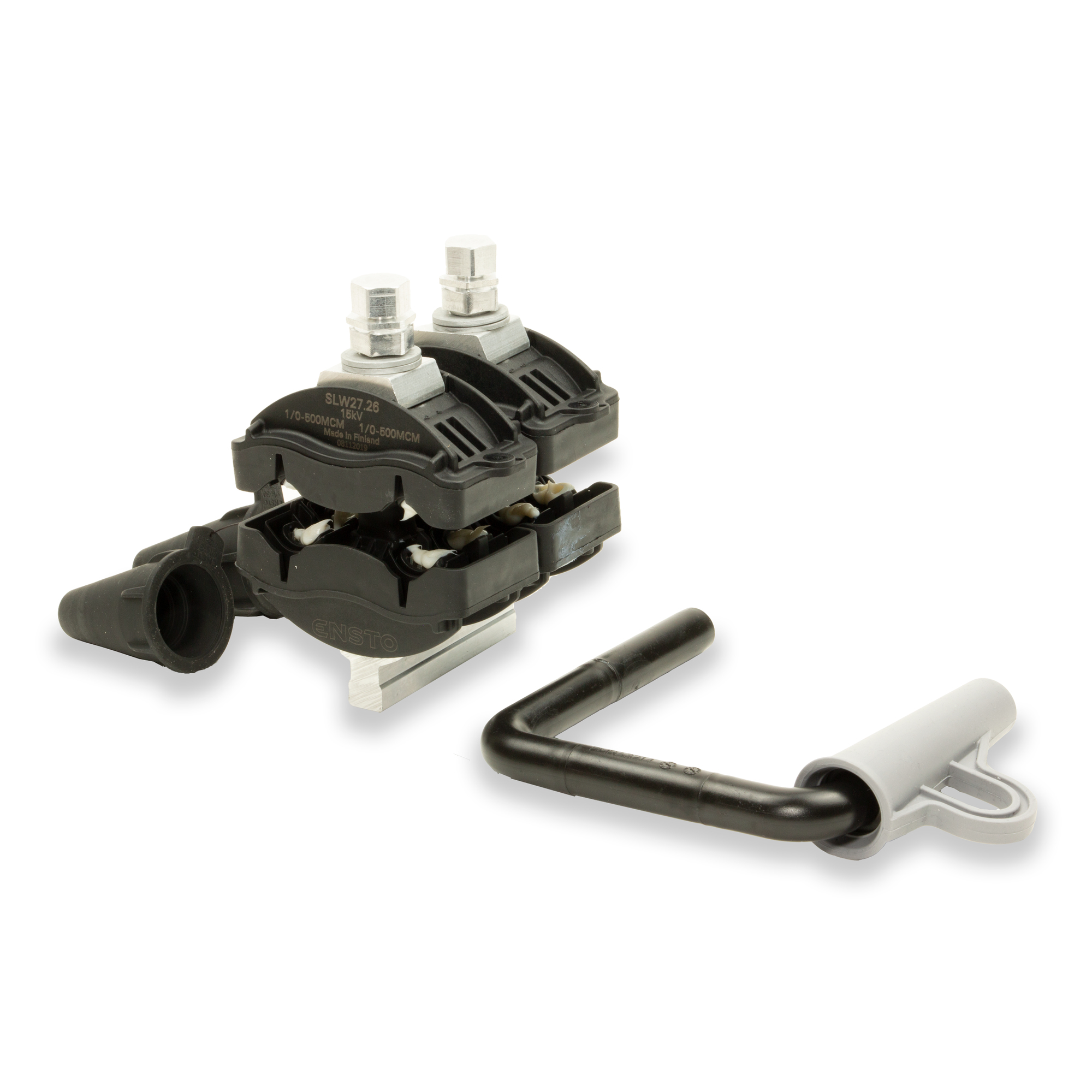

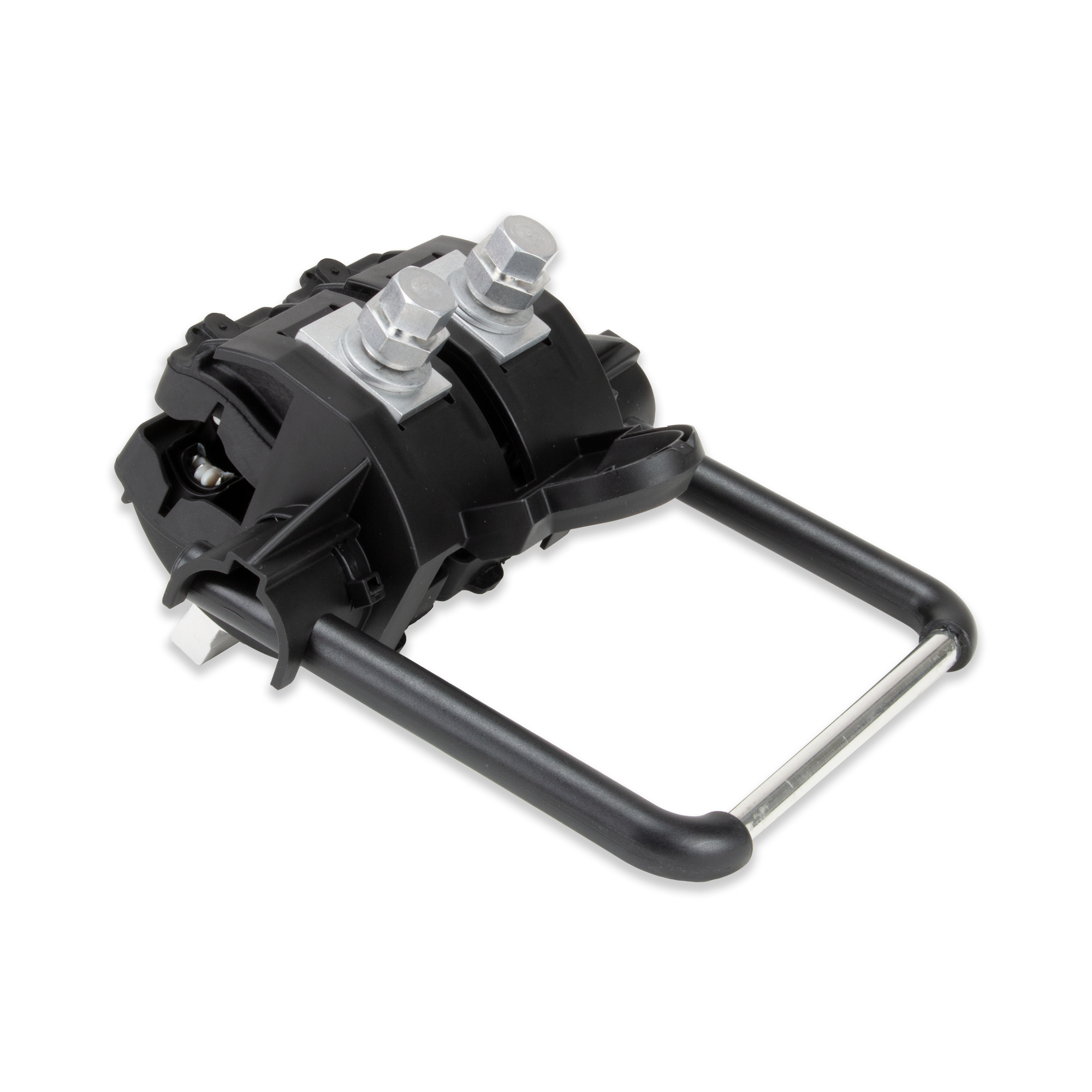

A watertight shear head bolt connector for Medium Voltage Covered Conductors (MV CC) non-tension aluminium to aluminium connections without peeling the insulation. Suitable for covered conductors with total covering thickness of .165 inches. Includes a tin plated rectangular copper stirrup. Equipped with a bracket enabling hotline stick installation.

Code	SLW27.26LL
GTIN	6438389100969
Name	Insulation piercing connector 15 kV rated covered conductor with covering thickness of .165 inches and overall diameter range of .72 - 1.15 inches.

Contact sales

Technical information

Technical specifications

Certificates
Standards	EN 50397-2
Dimensions
Weight	1.27 lb
Mechanical
Tightening torque Nm	35 Nm
ETIM
ETIM Class	EC001062
Nominal cross section main conductor, SM	150 ... 241 mm²
Nominal cross section branch conductor, SE/RE	95 ... 241 mm²
Nominal cross section branch conductor, SM/RM	95 ... 241 mm²
Material main conductor	Aluminium
Material branch conductor	Aluminium
Terminal insulated	Yes
Clamping channel opening main conductor	Both sides open
Clamping channel opening branch conductor	Both sides open
Surface protection	Bare
Type of connection	Insulation piercing connector IPC

Packaging

Plastic bag
Size	1 pce
Depth	13.77 in
Height	0.39 in
Width	9.05 in
Weight	1.29 lb
Volume	0.21 gal
Carton
Size	6 pcs
Depth	15.9 in
Height	9.17 in
Width	10.59 in
Weight	8.72 lb
Volume	6.68 gal
Pallet package
Size	144 pcs
Depth	47.24 in
Height	41.33 in
Width	31.49 in
Weight	253.49 lb
Volume	266.28 gal

Insulation piercing connector SLW27.26LL

Technical information

Technical specifications

Packaging

Downloads

Installation instruction

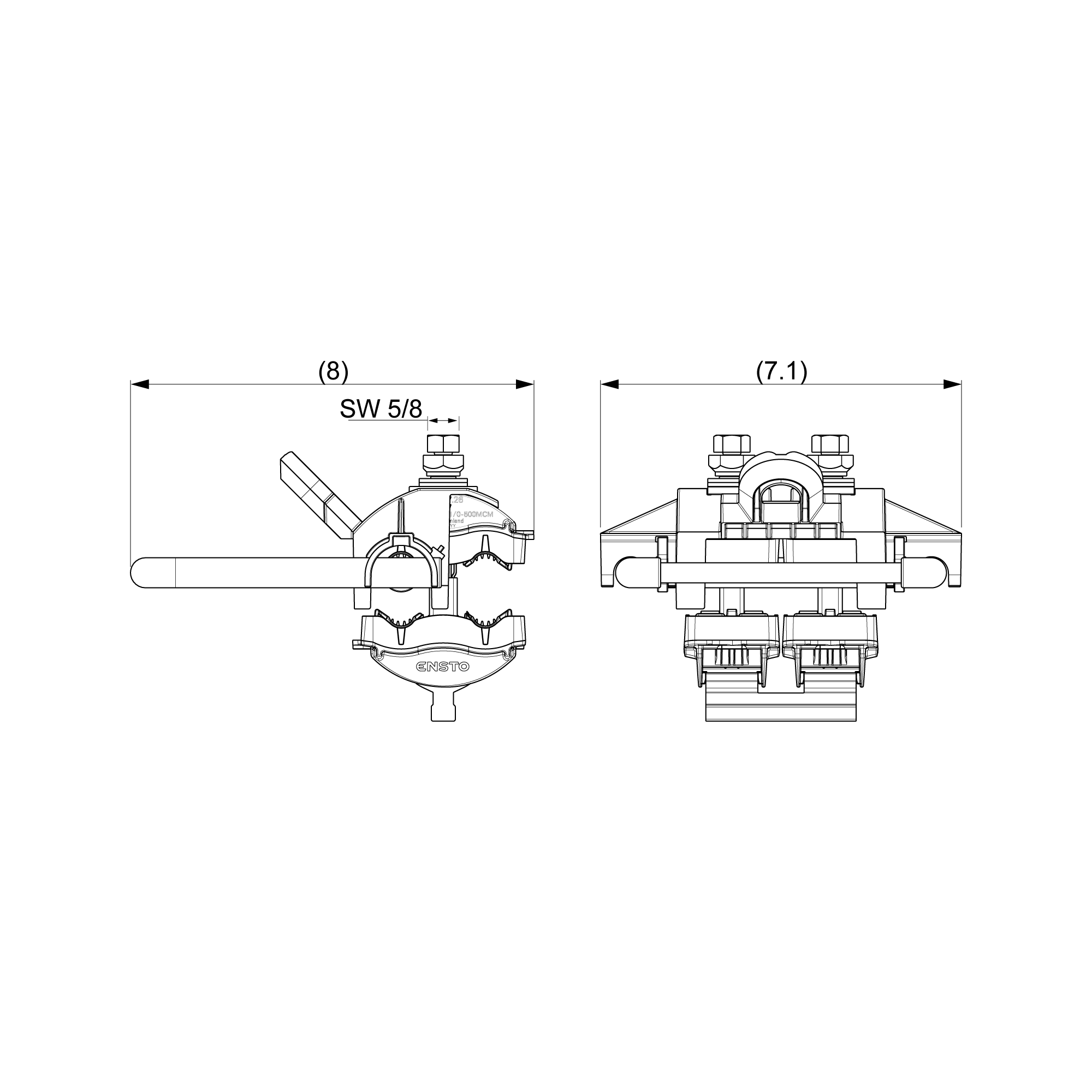

Dimensional drawing

Insulation-Piercing-Connector-Stirrup-SLW27.26LL-USA.pdf
