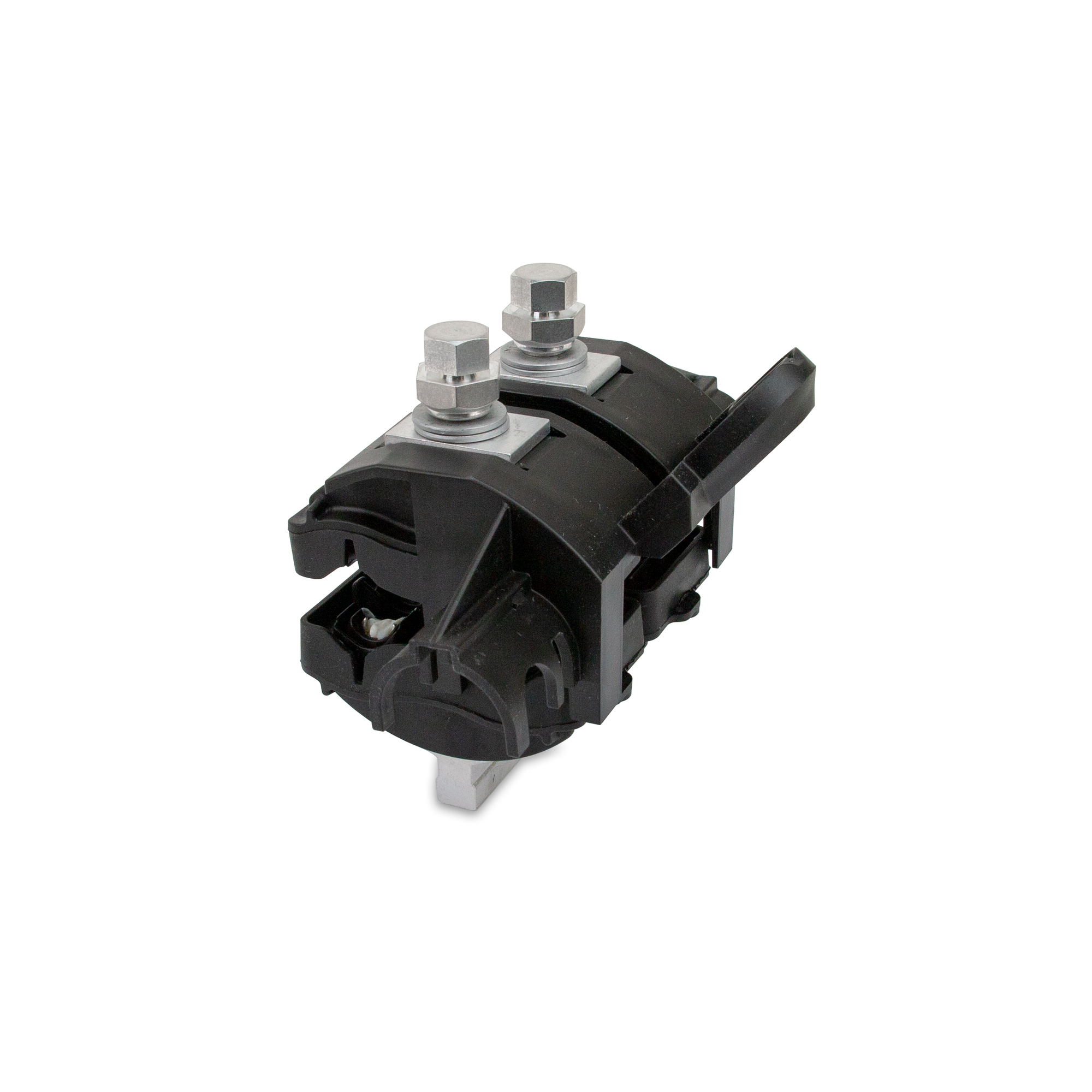

Insulation piercing connector SLW27.261
A watertight shear head bolt connector for Medium Voltage Covered Conductors (MV CC) non-tension aluminium to aluminium connections without peeling the insulation. Suitable for covered conductors with total covering thickness of .165 inches. Includes a tin plated C-shape copper stirrup.
| Code | SLW27.261 |
| GTIN | 6438100380588 |
| Name | Insulation piercing connector 15 kV rated covered conductor with covering thickness of .165 inches and overall diameter range of .72 - 1.15 inches. |
| Dimensions | |
|---|---|
| Weight | 2.02 lb |
| Carton | |
|---|---|
| Size | 6 pcs |
| Depth | 14.76 in |
| Height | 4.52 in |
| Width | 9.84 in |
| Weight | 12.64 lb |
| Volume | 2.84 gal |
| Pallet package | |
| Size | 378 pcs |
| Depth | 47.24 in |
| Height | 42.91 in |
| Width | 39.37 in |
| Weight | 851.79 lb |
| Volume | 345.53 gal |
15 kV rated covered conductor with covering thickness of .165 inches and overall diameter range of .72 - 1.15 inches.
Code: SLW27.26
GTIN: 6438100354749
15 kV rated covered conductor with covering thickness of .165 inches and overall diameter range of .72 - 1.15 inches.
Code: SLW27.26LL
GTIN: 6438389100969
50-241 mm² / 35-157 mm²
Code: SLW34.6
GTIN: 6438100356620
