Insulation piercing connector SLW27.26
A watertight shear head bolt connector for Medium Voltage Covered Conductors (MV CC) non-tension aluminium to aluminium connections without peeling the insulation. Suitable for covered conductors with total covering thickness of .165 inches.
| Code | SLW27.26 |
| GTIN | 6438100354749 |
| Name | Insulation piercing connector 15 kV rated covered conductor with covering thickness of .165 inches and overall diameter range of .72 - 1.15 inches. |
| Certificates | |
|---|---|
| Standards | EN 50397-2 |
| Dimensions | |
| Weight | 1.27 lb |
| Mechanical | |
| Tightening torque Nm | 35 Nm |
| ETIM | |
| ETIM Class | EC001062 |
| Nominal cross section main conductor, SM | 150 ... 241 mm² |
| Nominal cross section branch conductor, SE/RE | 95 ... 241 mm² |
| Nominal cross section branch conductor, SM/RM | 95 ... 241 mm² |
| Material main conductor | Aluminium |
| Material branch conductor | Aluminium |
| Terminal insulated | Yes |
| Clamping channel opening main conductor | Both sides open |
| Clamping channel opening branch conductor | Both sides open |
| Surface protection | Bare |
| Type of connection | Insulation piercing connector IPC |
| Plastic bag | |
|---|---|
| Size | 1 pce |
| Depth | 13.77 in |
| Height | 0.39 in |
| Width | 9.05 in |
| Weight | 1.29 lb |
| Volume | 0.21 gal |
| Carton | |
| Size | 12 pcs |
| Depth | 15.66 in |
| Height | 8.7 in |
| Width | 10.35 in |
| Weight | 16.15 lb |
| Volume | 6.11 gal |
| Pallet package | |
| Size | 432 pcs |
| Depth | 47.24 in |
| Height | 41.33 in |
| Width | 31.49 in |
| Weight | 625.62 lb |
| Volume | 266.28 gal |
15 kV rated covered conductor with covering thickness of .165 inches and overall diameter range of .72 - 1.15 inches.
Code: SLW27.261
GTIN: 6438100380588
15 kV rated covered conductor with covering thickness of .165 inches and overall diameter range of .72 - 1.15 inches.
Code: SLW27.26LL
GTIN: 6438389100969

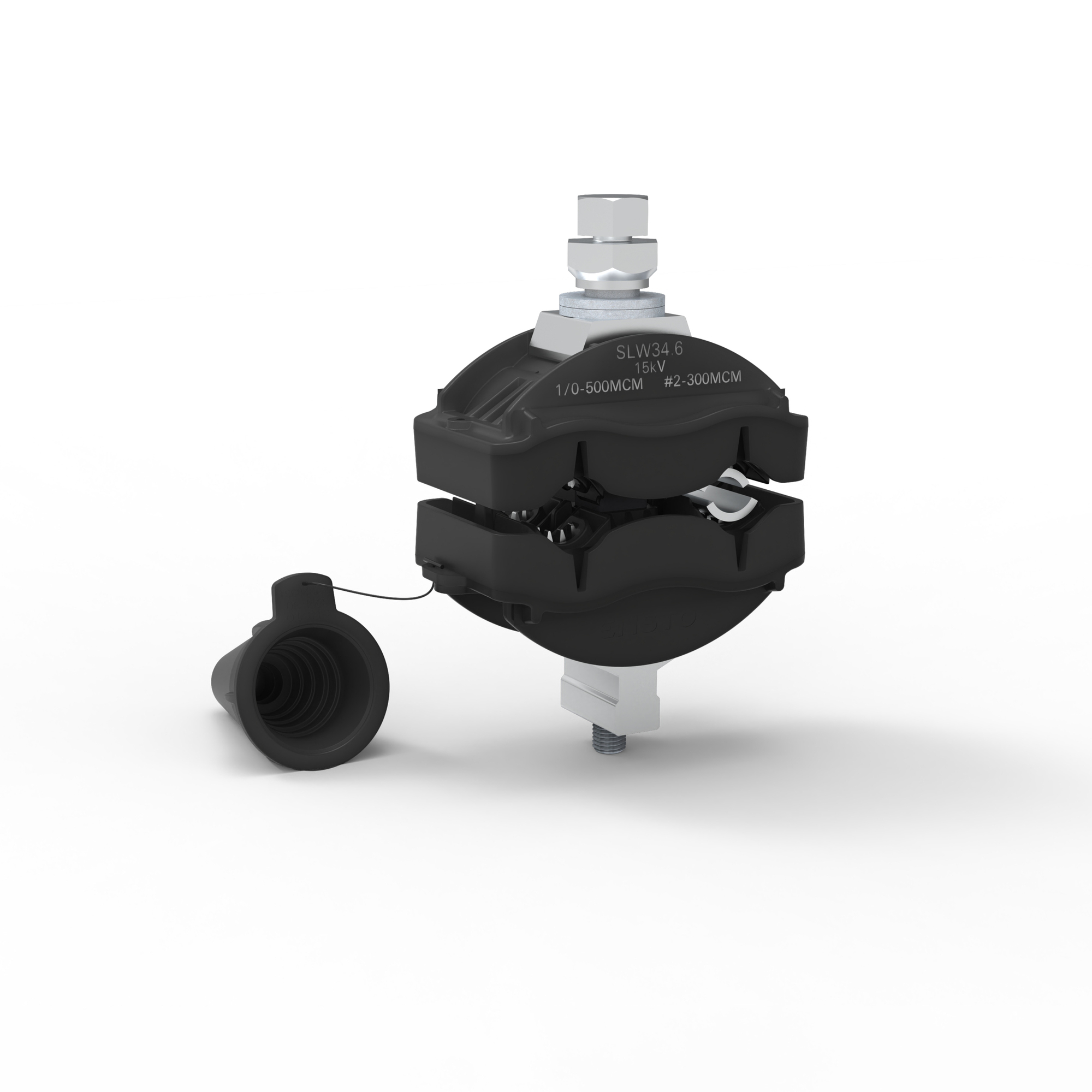

main #2-300MCM, branch 1/0-500MCM
Code: SLW34.6
GTIN: 6438100356620
