Current limiting device SDI48.645

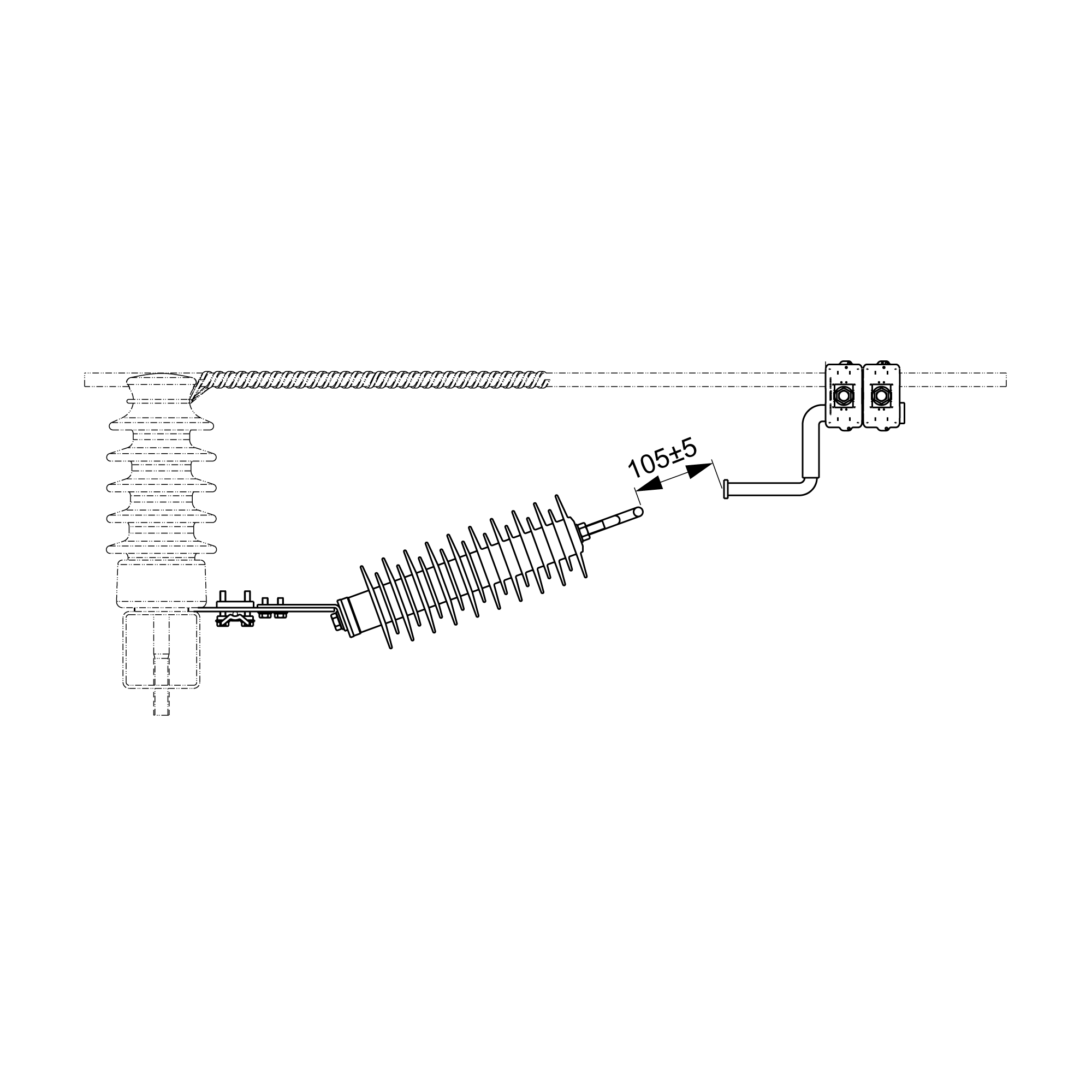

Used on straight line crossarms with post line insulators for arc protection. The set includes a surge arrester, a fixing bracket, a connector, a spark horn/an arc protection horn. Three sets are needed for one crossarm.
| Code | SDI48.645 |
| GTIN | 6438100390570 |
| Name | Current limiting device For 45 kV, line-post, 150-241 mm² |
| Dimensions | |
|---|---|
| Weight | 11.9 lb |
| Electrical values | |
| Highest system voltage | 45 kV |
| Carton | |
|---|---|
| Size | 1 pce |
| Depth | 20 in |
| Height | 8.5 in |
| Width | 10.35 in |
| Weight | 12.6 lb |
| Volume | 7.62 gal |
